Removal

MIRROR (EXT): OUTER REAR VIEW MIRROR GLASS: REMOVAL

REMOVAL

1. REMOVE OUTER MIRROR





(a) Push the lower part of the mirror surface and tilt it.
(b) Apply protective tape as shown in the illustration.

Text in Illustration

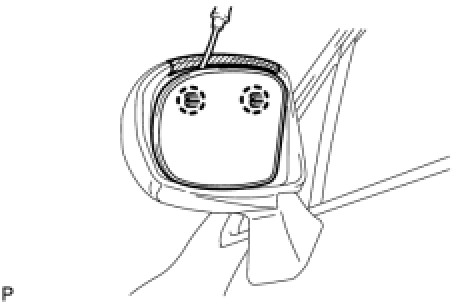

(c) Using a clip remover, disengage the 2 claws at the upper part of the outer rear view mirror.

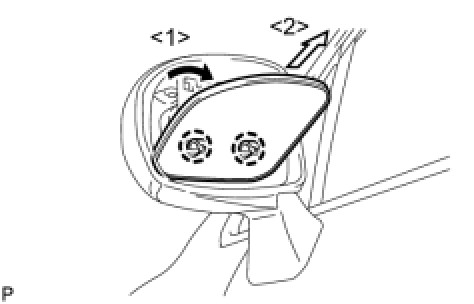

(d) Disengage the 2 claws and remove the outer mirror as shown in the illustration.
(e) w/ Mirror Heater:
(1) Disconnect each connector.
