Power Window Master Switch

WINDOW / GLASS: POWER WINDOW MASTER SWITCH: INSPECTION

INSPECTION

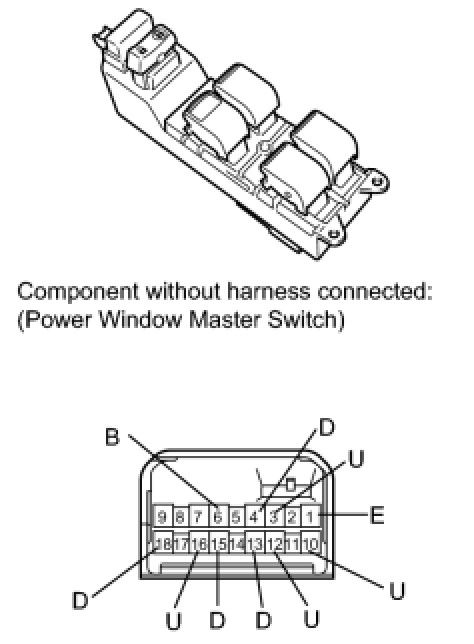

1. INSPECT POWER WINDOW MASTER SWITCH





(a) Measure the resistance according to the value(s) in the table below.

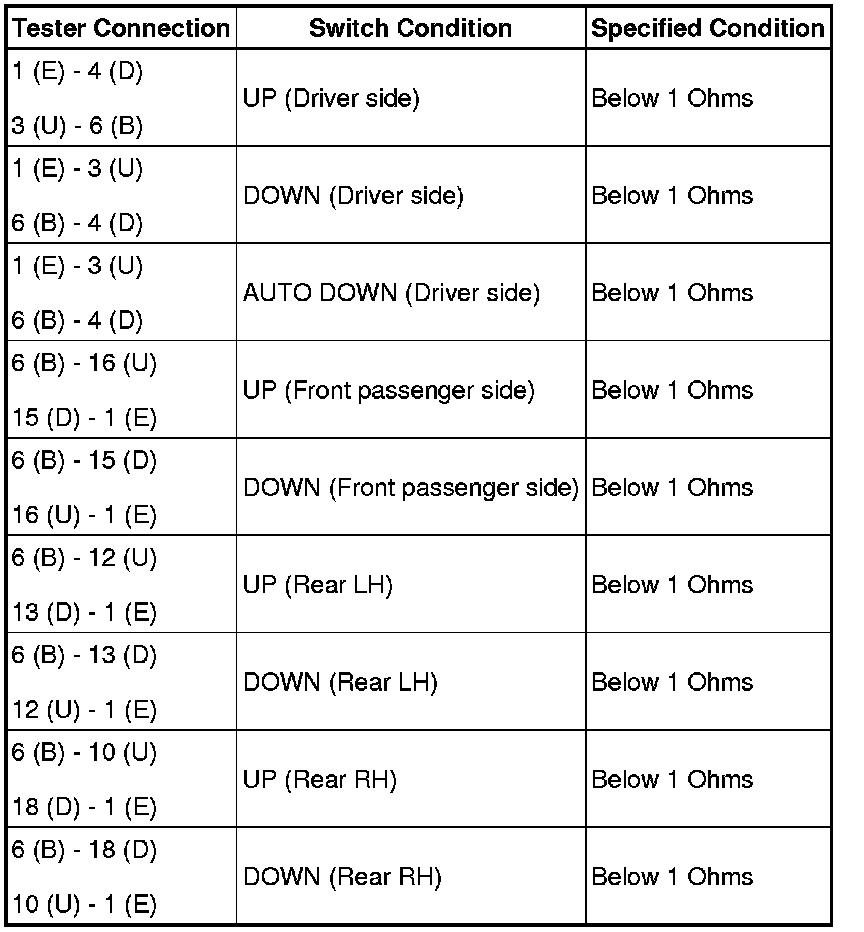

Standard Resistance:





If the result is not specified, replace the power window master switch.
