FUEL INJECTOR

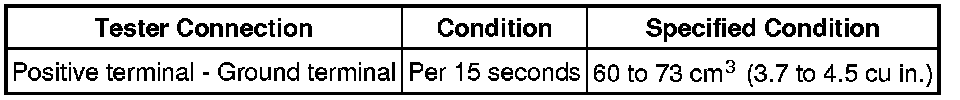

Injection Volume
Difference between each injector
13 cm3 (0.8 cu in.) or less
Fuel drop:
1 drop or less every 12 minutes
