Home >> Toyota >> 2009 >> Matrix FWD L4-1.8L (2ZR-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Restraints and Safety Systems >> System Specifications

System Specifications

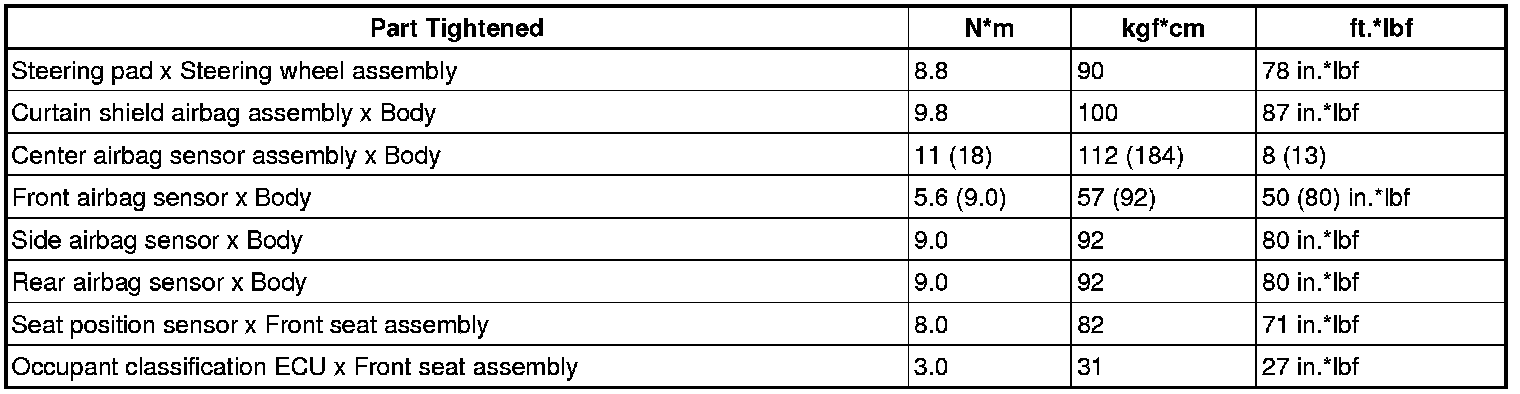

SPECIFICATIONS: SUPPLEMENTAL RESTRAINT SYSTEMS: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

( ) For use without SST
