Oil Pump

OIL PUMP ASSEMBLY

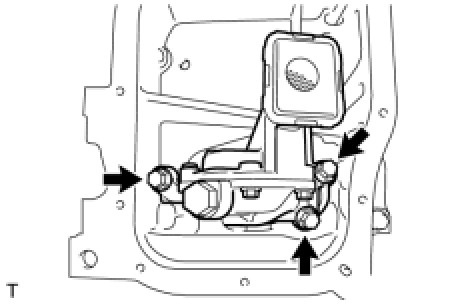

Install the oil pump with the 3 bolts.
Torque 21 Nm (214 kgf-cm, 15 ft-lbf)
