BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS:

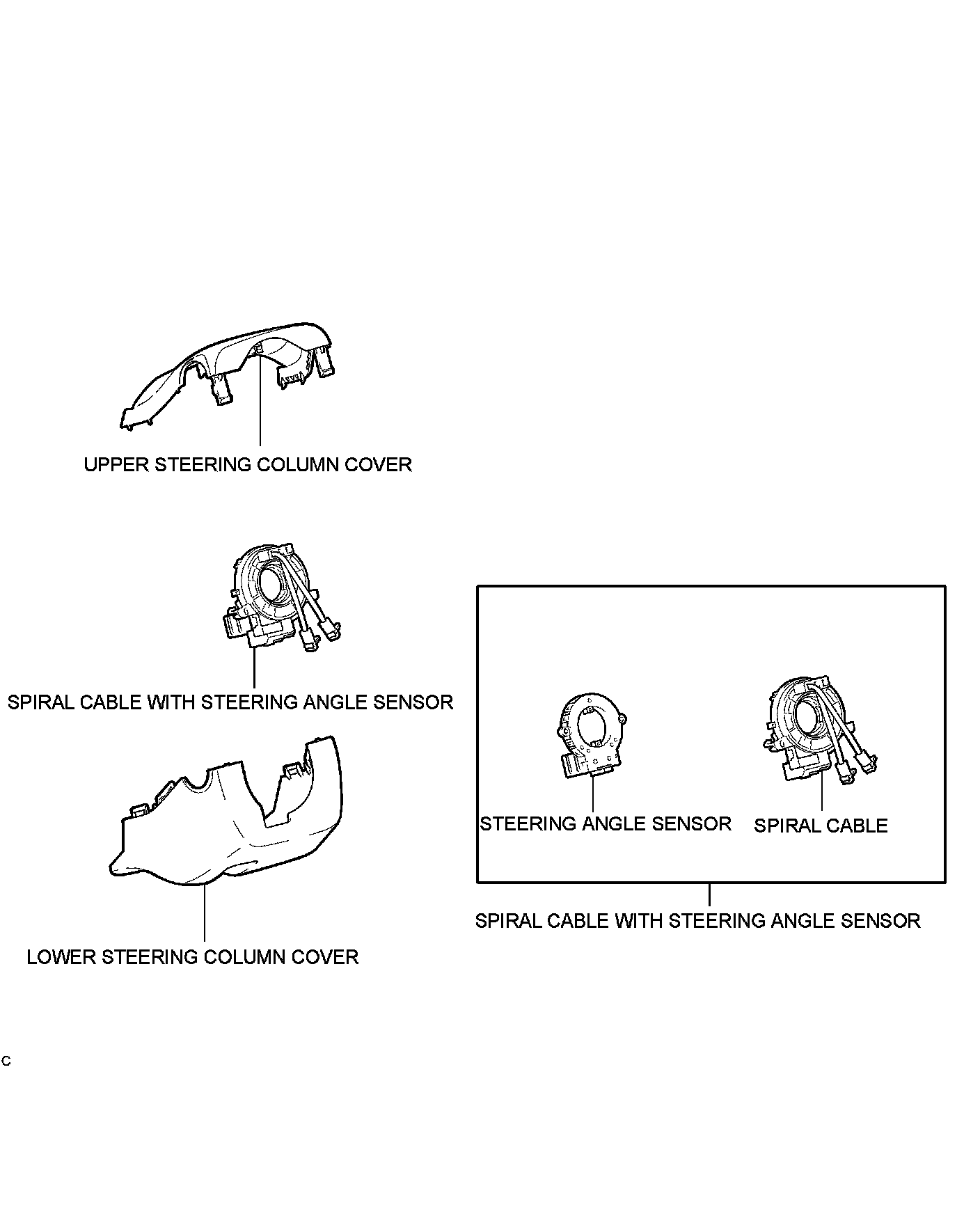

STEERING ANGLE SENSOR
(w/ VSC): COMPONENTS

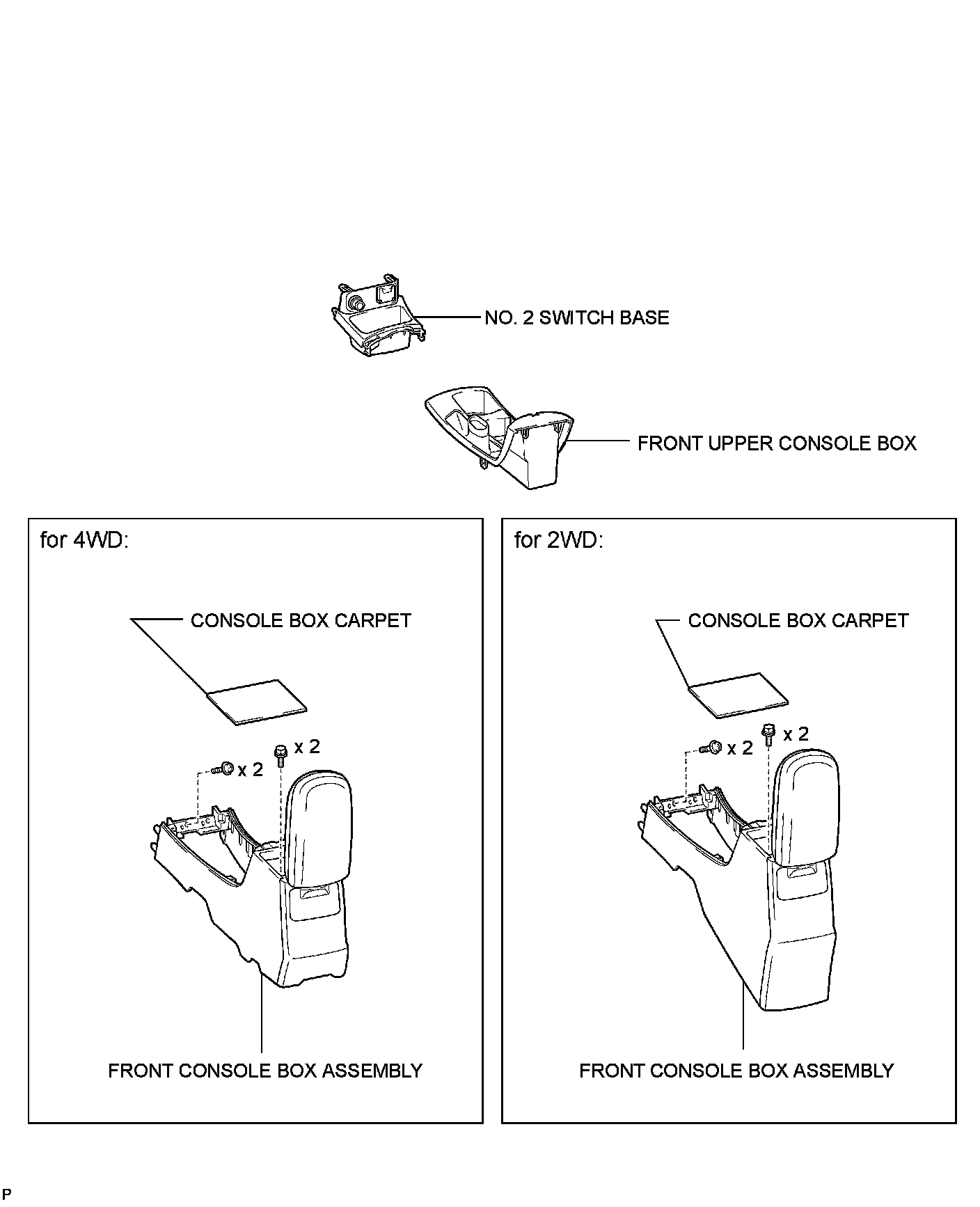

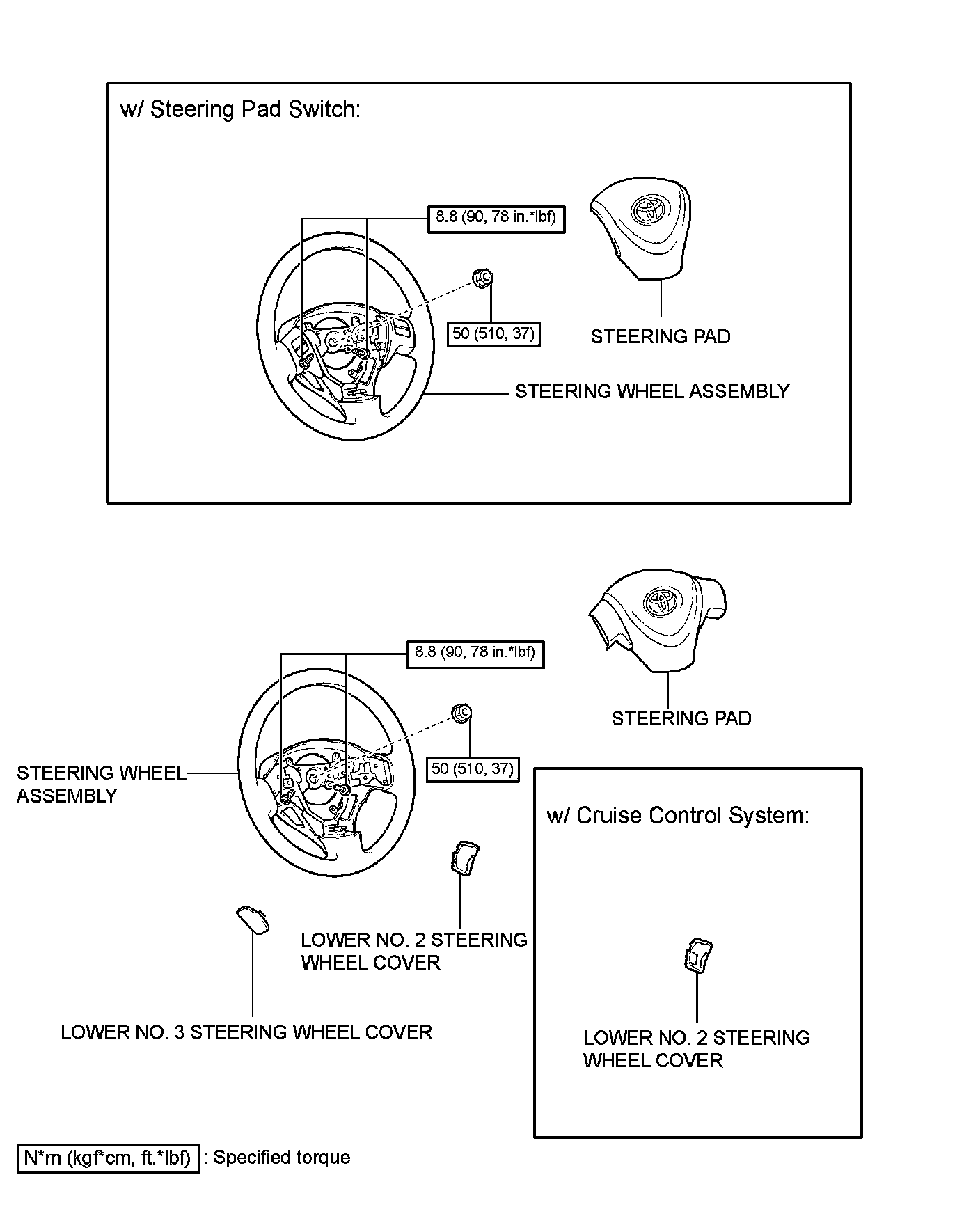

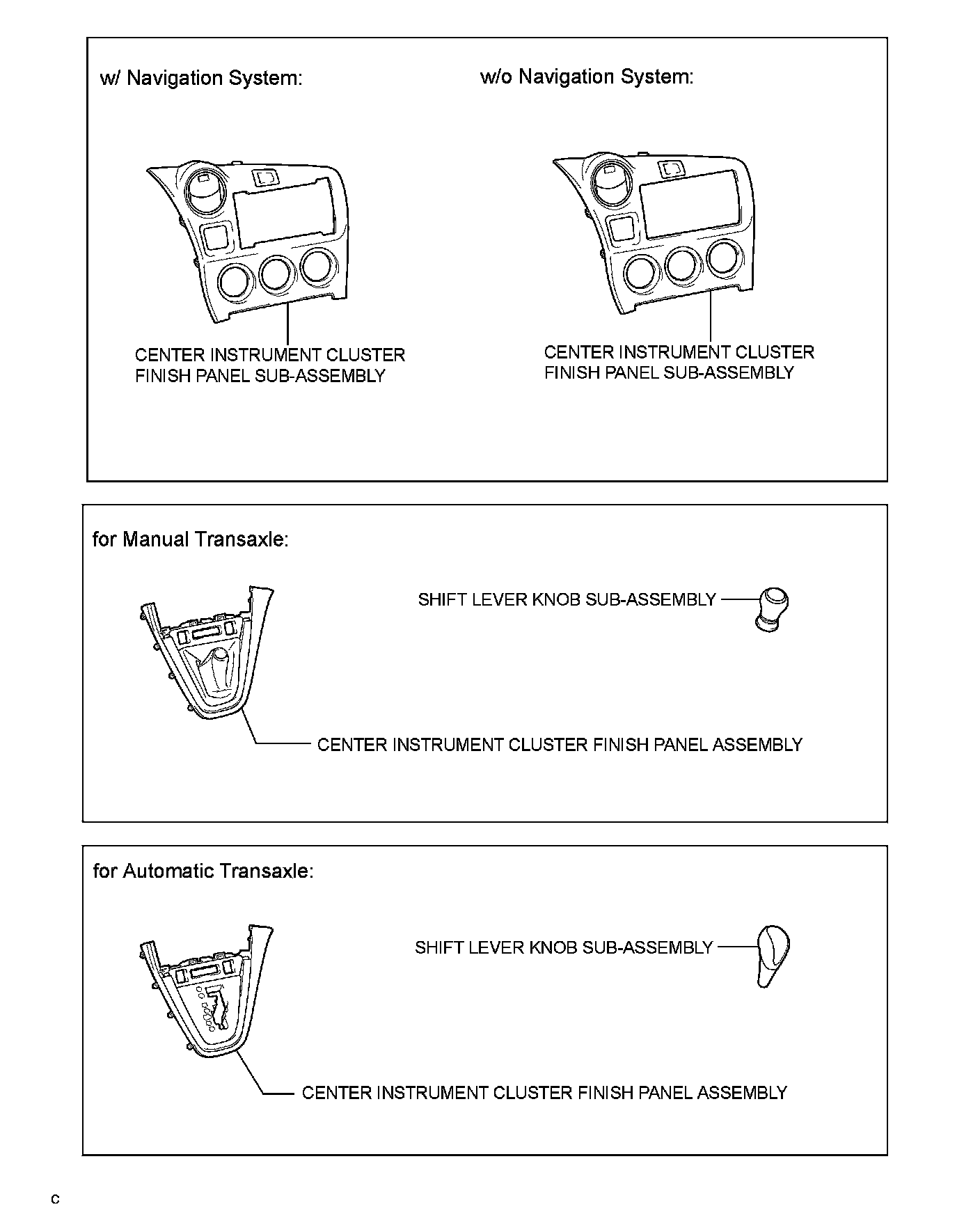

COMPONENTS
ILLUSTRATION
