Removal

SEAT BELT: REAR SEAT INNER BELT ASSEMBLY: REMOVAL

REMOVAL

1. REMOVE REAR SEAT CUSHION ASSEMBLY Removal

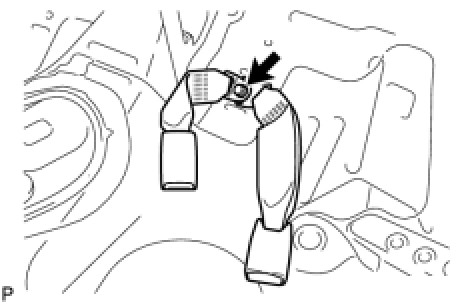

2. REMOVE REAR SEAT INNER BELT ASSEMBLY





(a) Remove the bolt and the rear seat inner belt assembly.

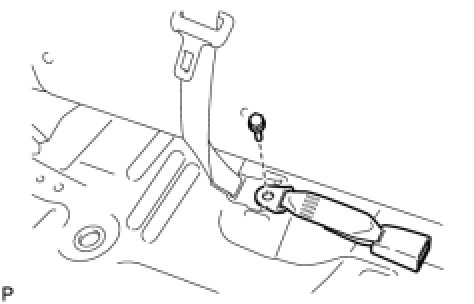

3. REMOVE REAR SEAT CENTER INNER BELT ASSEMBLY





(a) Remove the bolt and the rear seat center inner belt assembly.
