Removal








NETWORKING: NETWORK GATEWAY ECU: REMOVAL

REMOVAL

1. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY Removal
2. REMOVE NETWORK GATEWAY ECU

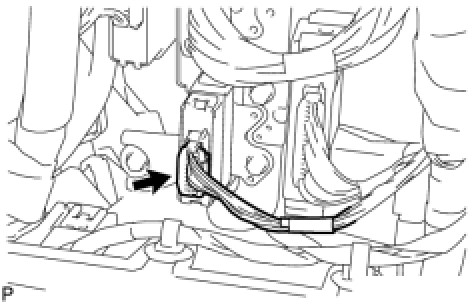

(a) Disconnect the connector.

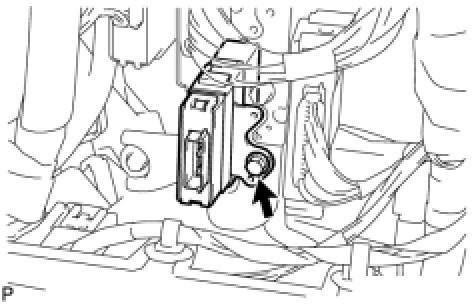

(b) Remove the bolt and network gateway ECU.
