Removal

LIGHTING (EXT): FOG LIGHT ASSEMBLY: REMOVAL

REMOVAL

1. REMOVE FRONT BUMPER ASSEMBLY (w/o Front Spoiler) Removal
2. REMOVE FRONT BUMPER ASSEMBLY (w/ Front Spoiler) Removal

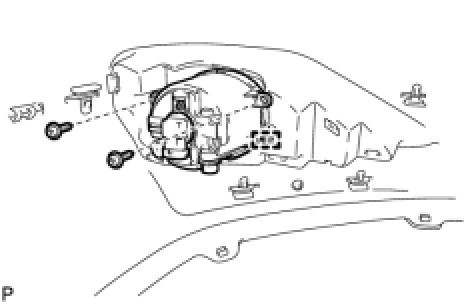

3. REMOVE FOG LIGHT ASSEMBLY





(a) Remove the 2 screws.
(b) Disengage the guide and remove the fog light assembly.
