Removal

LIGHTING (EXT): HIGH MOUNTED STOP LIGHT ASSEMBLY: REMOVAL

REMOVAL

1. REMOVE BACK DOOR CENTER GARNISH Disassembly

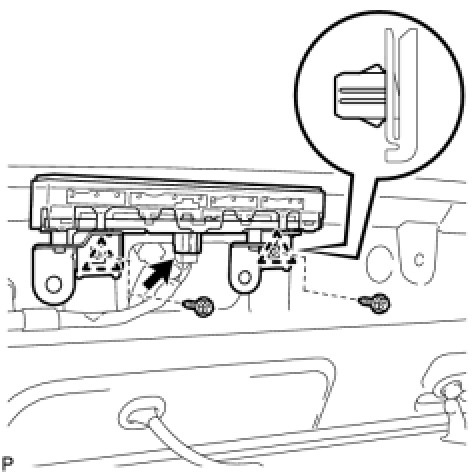

2. REMOVE CENTER STOP LIGHT SET





(a) Disconnect the connector.
(b) Remove the 2 screws.
(c) Disengage the 2 clips and remove the center stop light set.
