Backup Lamp Switch: Testing and Inspection

C59 MANUAL TRANSMISSION / TRANSAXLE: BACK-UP LIGHT SWITCH: INSPECTION

INSPECTION

1. INSPECT BACK-UP LIGHT SWITCH ASSEMBLY

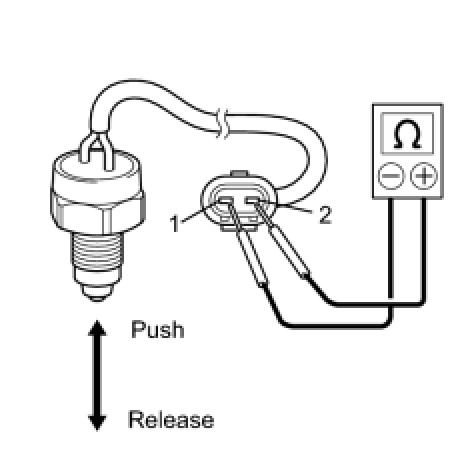

(a) Measure the resistance of the switch.

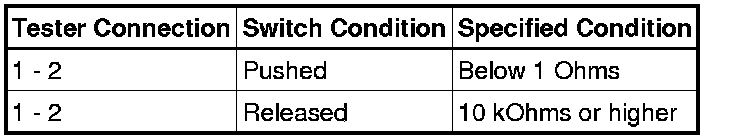

Standard Resistance:





If the result is not as specified, replace the back-up light switch assembly.
