Removal

HEATING / AIR CONDITIONING: BLOWER RESISTOR: REMOVAL

REMOVAL

1. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (w/ Instrument Panel Under Cover) Removal

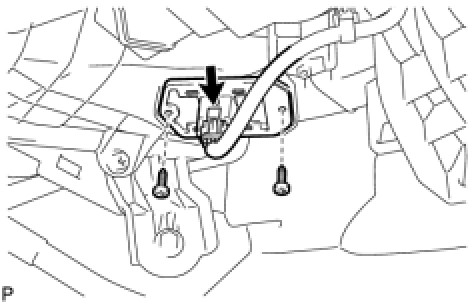

2. REMOVE BLOWER RESISTOR





(a) Disconnect the connector.
(b) Remove the 2 screws and the blower resistor.
