Brake Control / Dynamic Control Systems

SPECIFICATIONS: BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: TORQUE SPECIFICATIONS

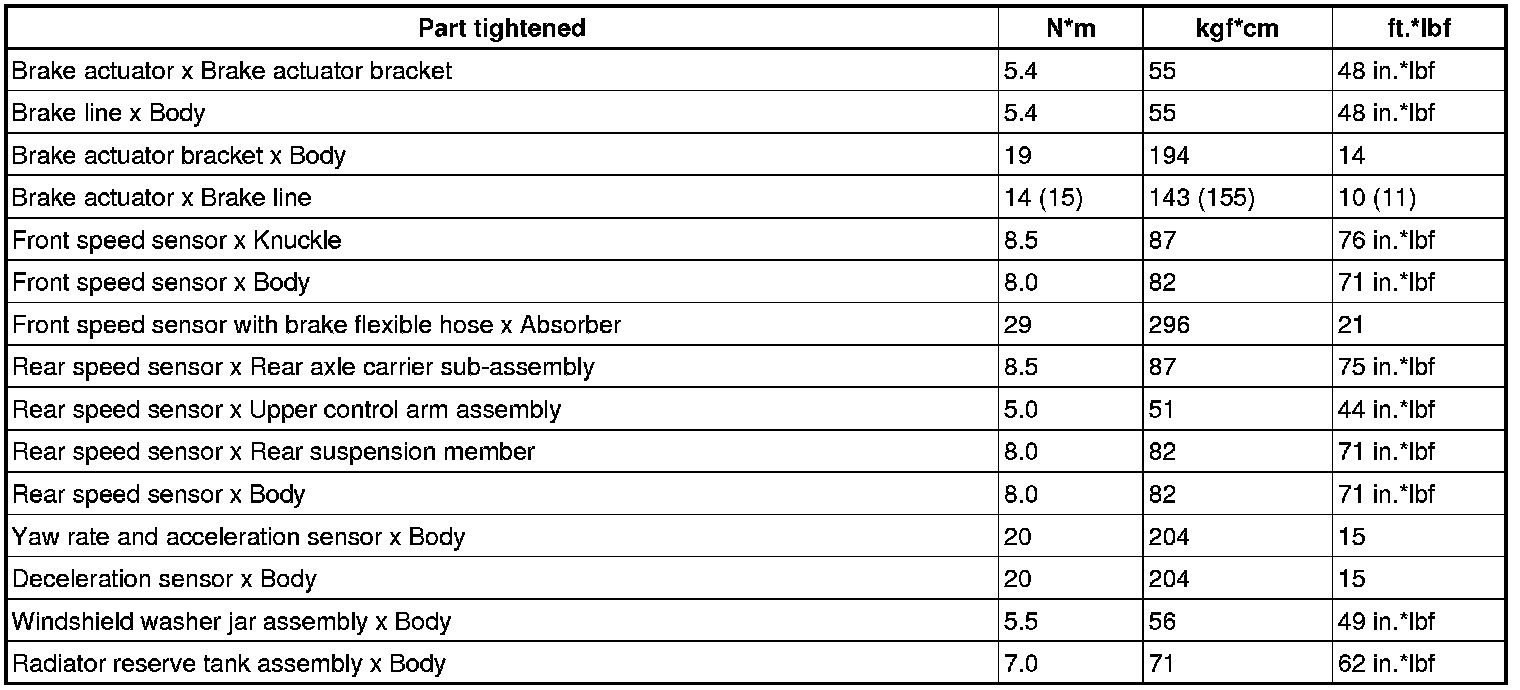

TORQUE SPECIFICATIONS

( ) without union nut wrench
