Traction Control Switch: Testing and Inspection

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VSC OFF SWITCH (w/ VSC): INSPECTION

INSPECTION

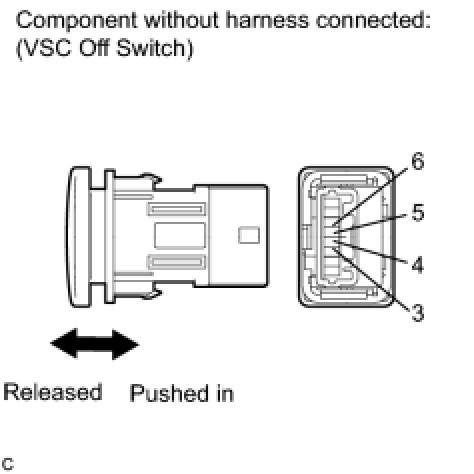

1. INSPECT VSC OFF SWITCH

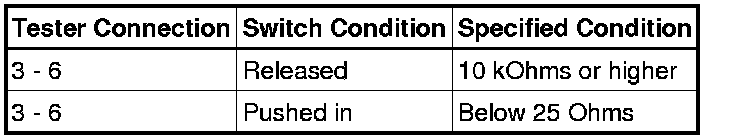

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the switch.
(b) Check illumination operation.
Standard :





If the result is not as specified, replace the VSC off switch.
