Removal

EXTERIOR PANELS / TRIM: REAR BUMPER: REMOVAL

REMOVAL

1. REMOVE REAR BUMPER ASSEMBLY

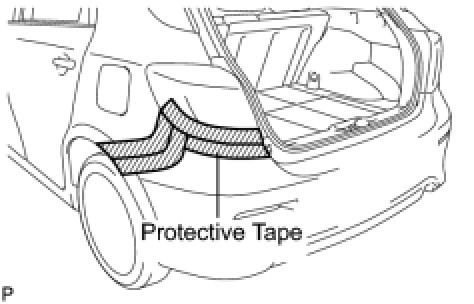

(a) Put protective tape around the rear bumper assembly.

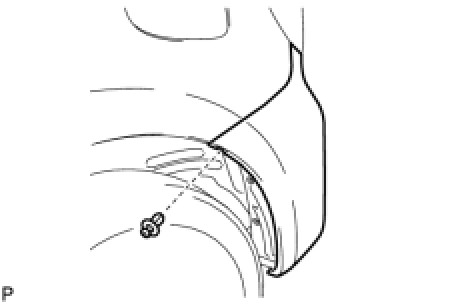

(b) Remove the clip.
HINT: Use the same procedure for the RH side and LH side.

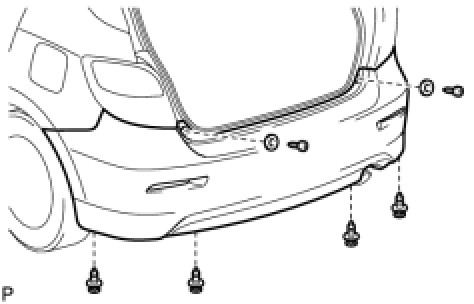

(c) Remove the 4 clips and 2 rear bumper upper stoppers.

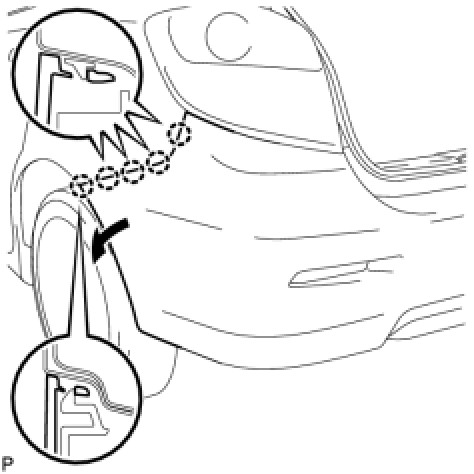

(d) Disengage the 5 claws.
HINT: Use the same procedure for the RH side and LH side.

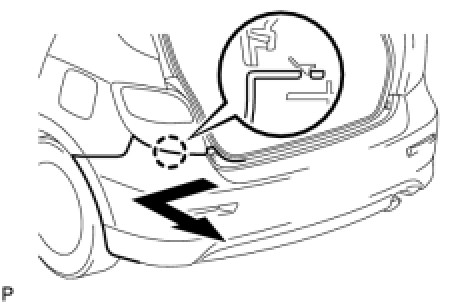

(e) Disengage the claw, and slide the rear bumper toward the center of the vehicle.
HINT: Use the same procedure for the RH side and LH side.

(f) Remove the rear bumper assembly.
