Pinout Values and Diagnostic Parameters

NAVIGATION / MULTI INFO DISPLAY: NAVIGATION SYSTEM: TERMINALS OF ECU

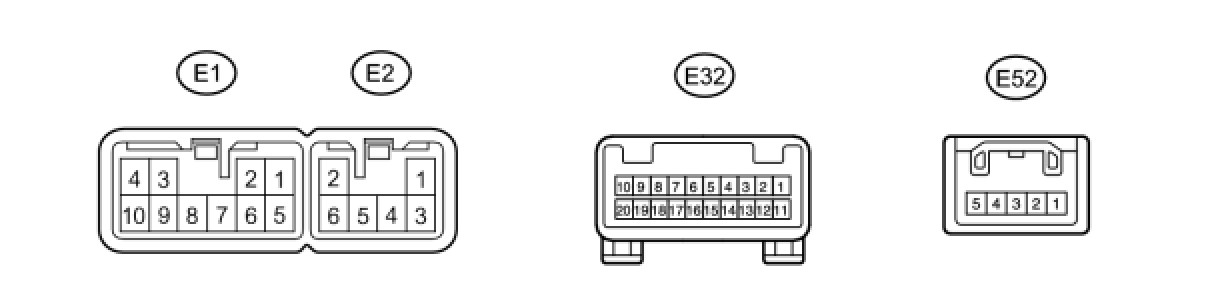

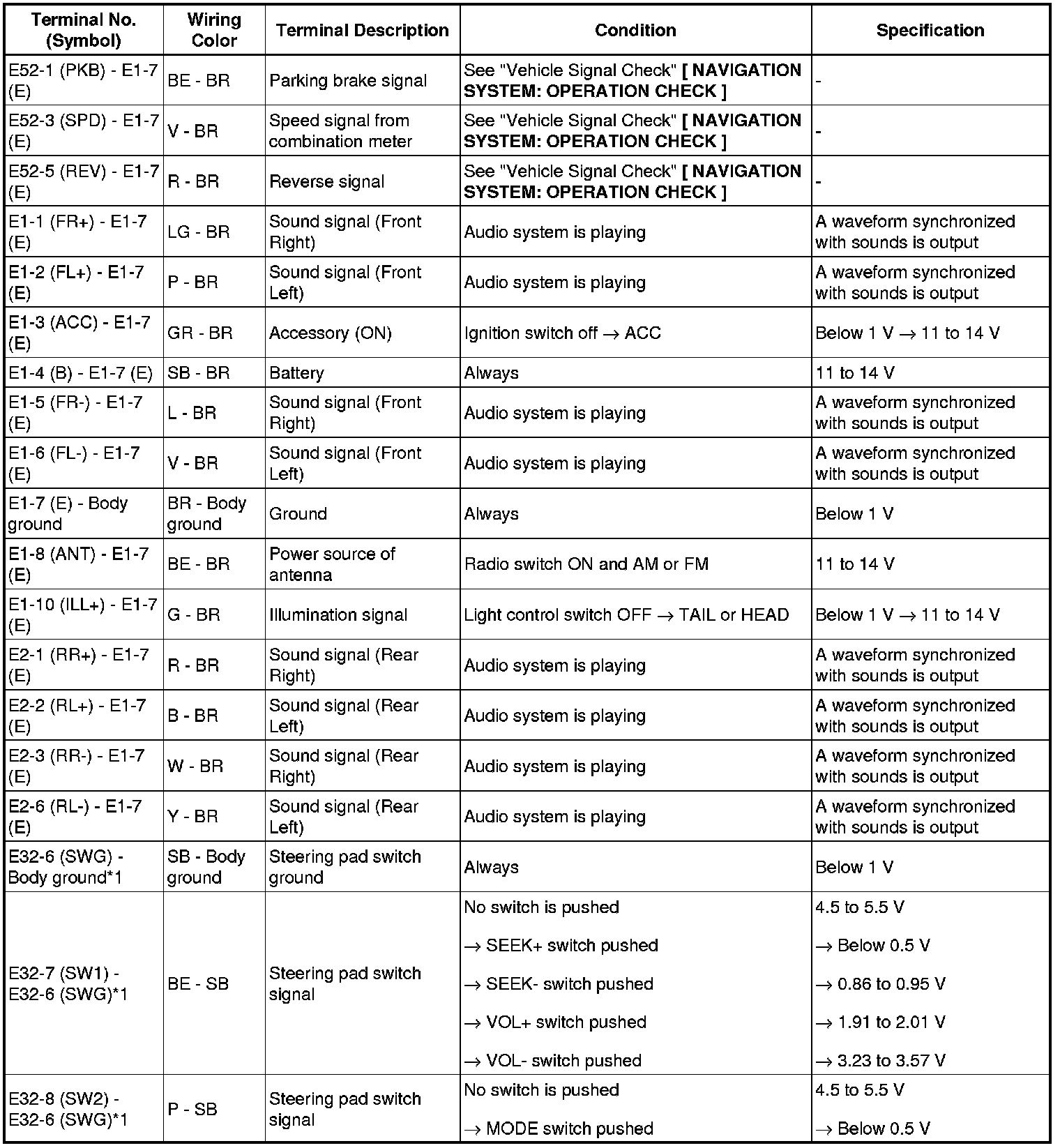

TERMINALS OF ECU

1. NAVIGATION RECEIVER ASSEMBLY









HINT: *1: w/ Steering Pad Switch
