Mechanical Specifications








SPECIFICATIONS: DRIVE SHAFT / PROPELLER SHAFT: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

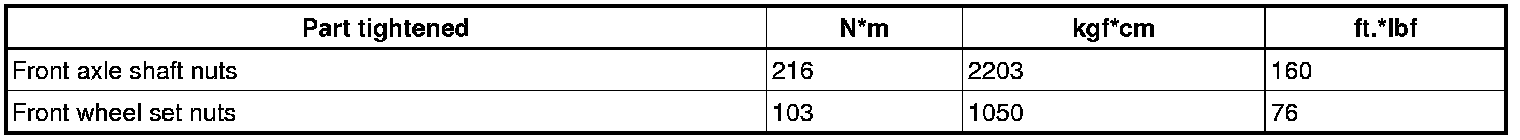

for 2AZ-FE

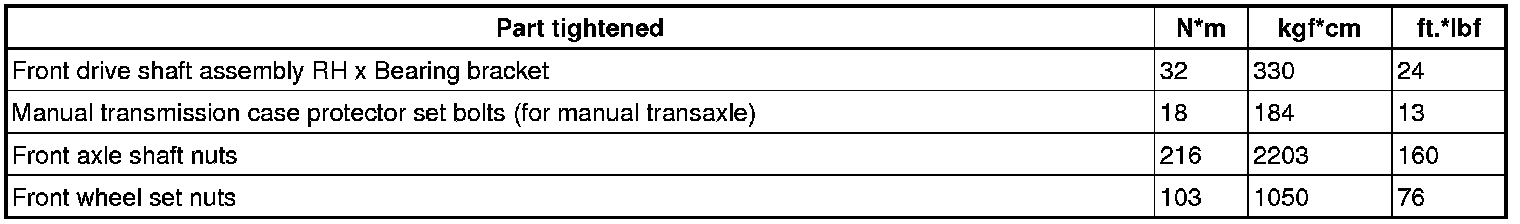

for 2ZR-FE
