Removal

REAR SUSPENSION: REAR STABILIZER BAR: REMOVAL

REMOVAL

1. REMOVE REAR AXLE BEAM DAMPER





(a) Remove the rear axle beam damper.

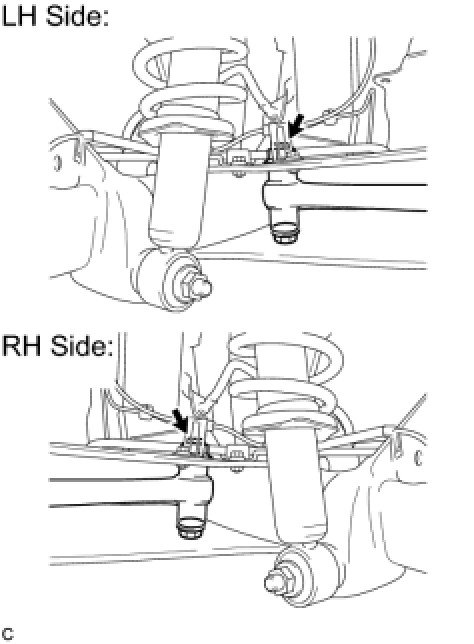

2. REMOVE REAR STABILIZER BAR





(a) Remove the 2 bolts, 2 nuts and rear stabilizer bar.
NOTE: Be sure to loosen the nuts.
