Power Assist Systems








POWER ASSIST SYSTEMS: POWER STEERING SYSTEM (for 2ZR-FE): PARTS LOCATION

PARTS LOCATION

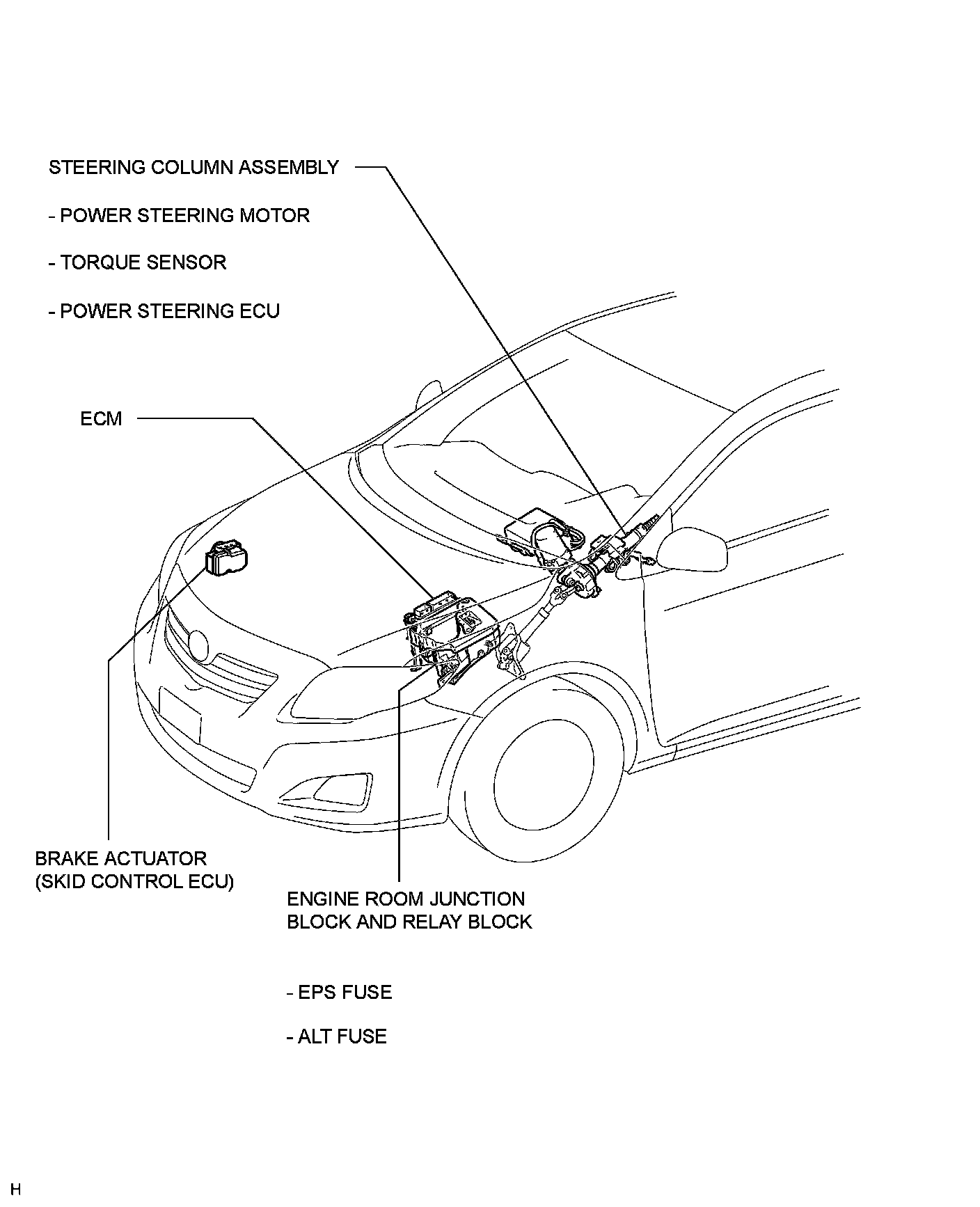

ILLUSTRATION
