Removal

2ZR-FE STARTING: STARTER: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE TRANSMISSION OIL FILLER TUBE SUB-ASSEMBLY (for Automatic Transaxle)
HINT: Removal.

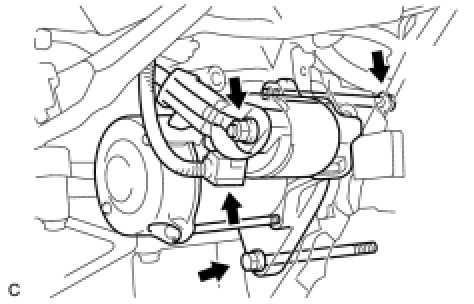

3. REMOVE STARTER ASSEMBLY





(a) Remove the terminal cap.
(b) Remove the nut and disconnect terminal 30.
(c) Disconnect the connector.
(d) Remove the 2 bolts and starter assembly.
