Trunk / Liftgate Switch: Testing and Inspection

DOOR / HATCH: LUGGAGE COMPARTMENT DOOR OPENER OUTER SWITCH: INSPECTION

INSPECTION

1. INSPECT LUGGAGE COMPARTMENT DOOR OPENER OUTER SWITCH

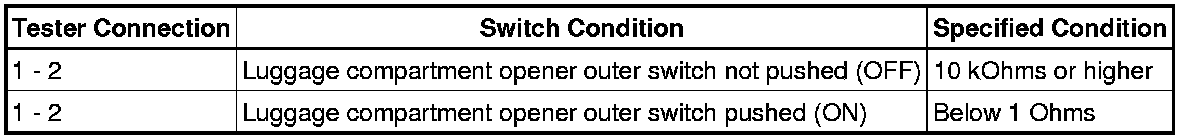

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not specified, replace the luggage compartment door opener outer switch.
