Power Source (Except TMC Made)

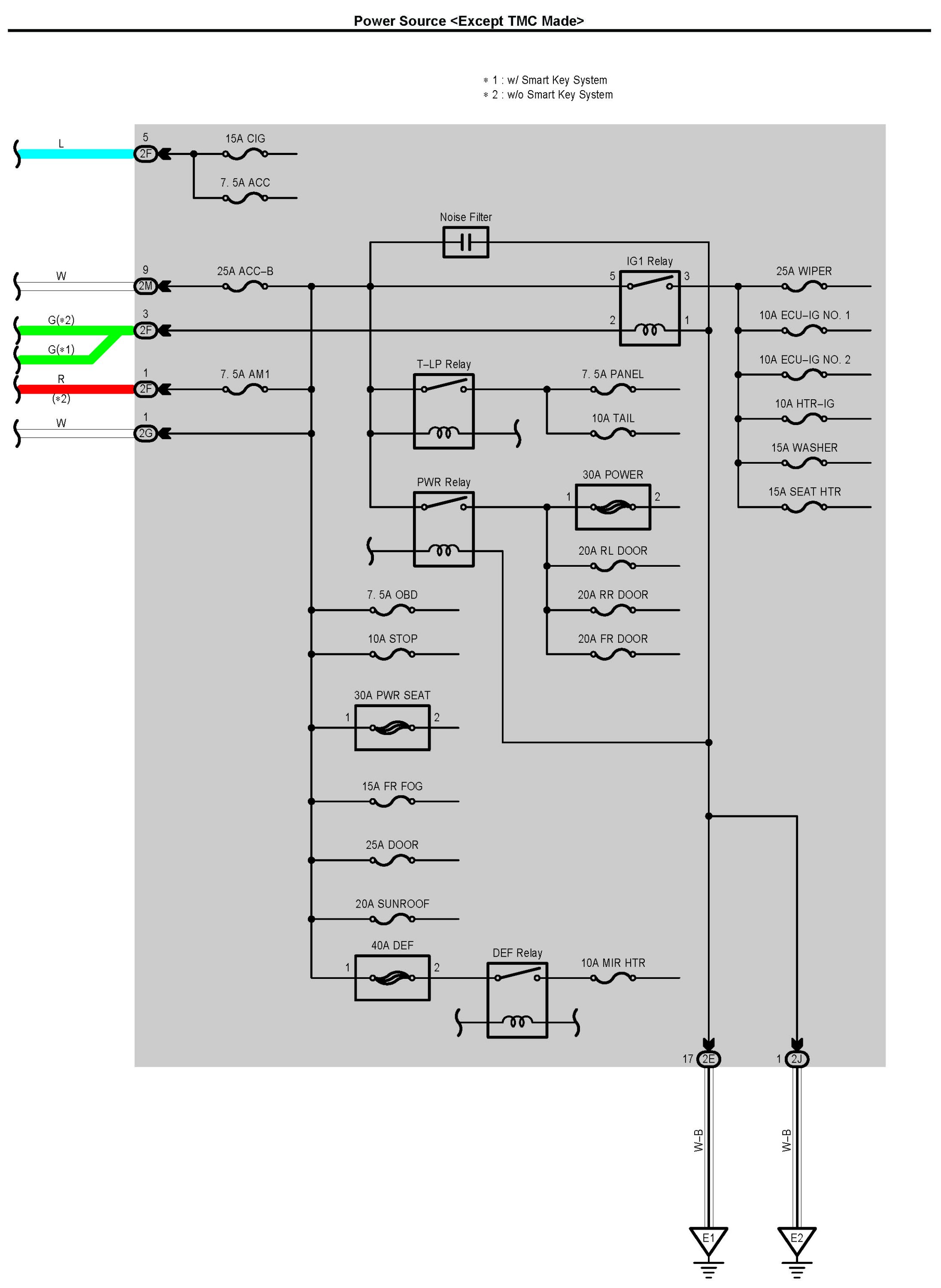

Power Source <Except TMC Made> Part 1:

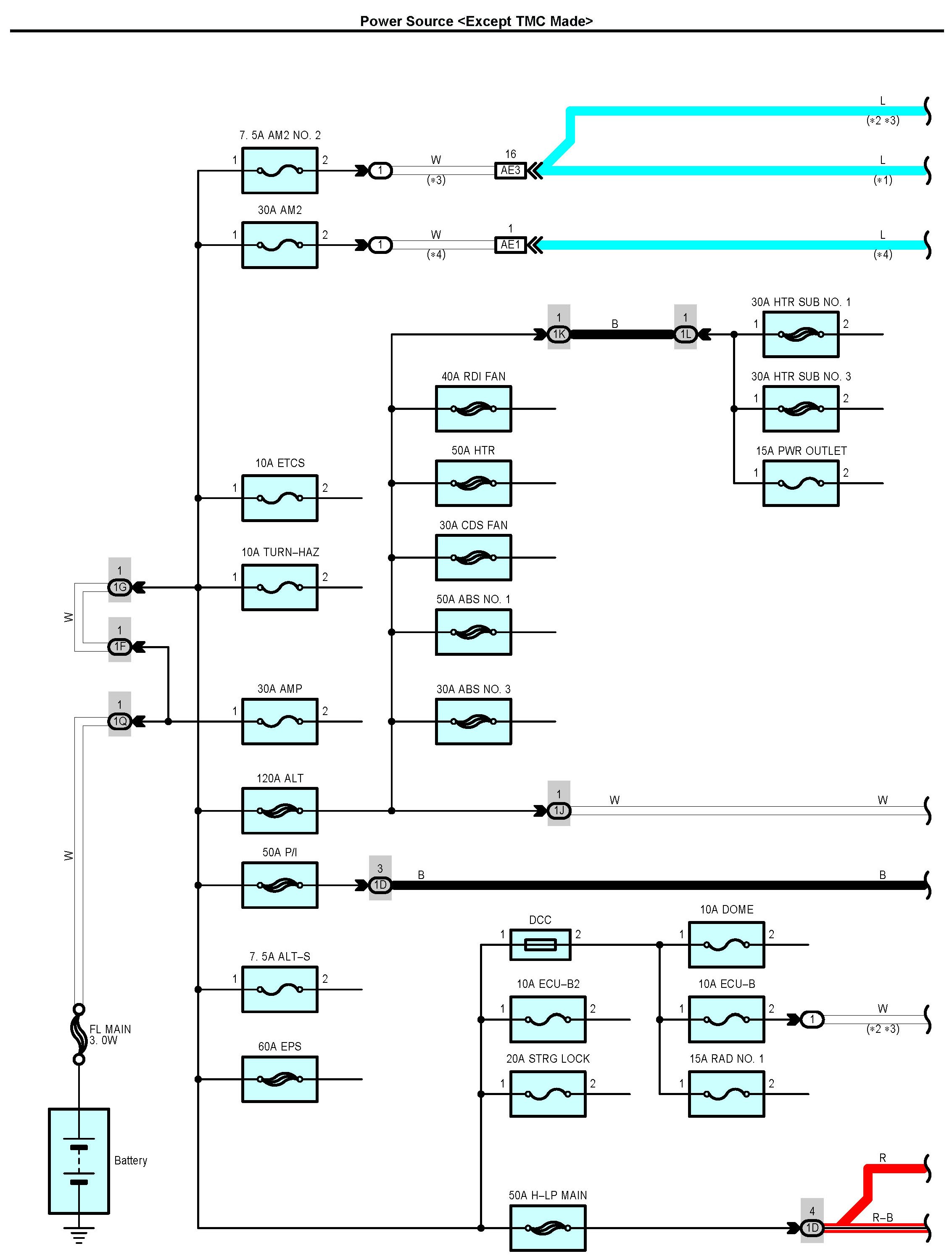

Power Source <Except TMC Made> Part 2:

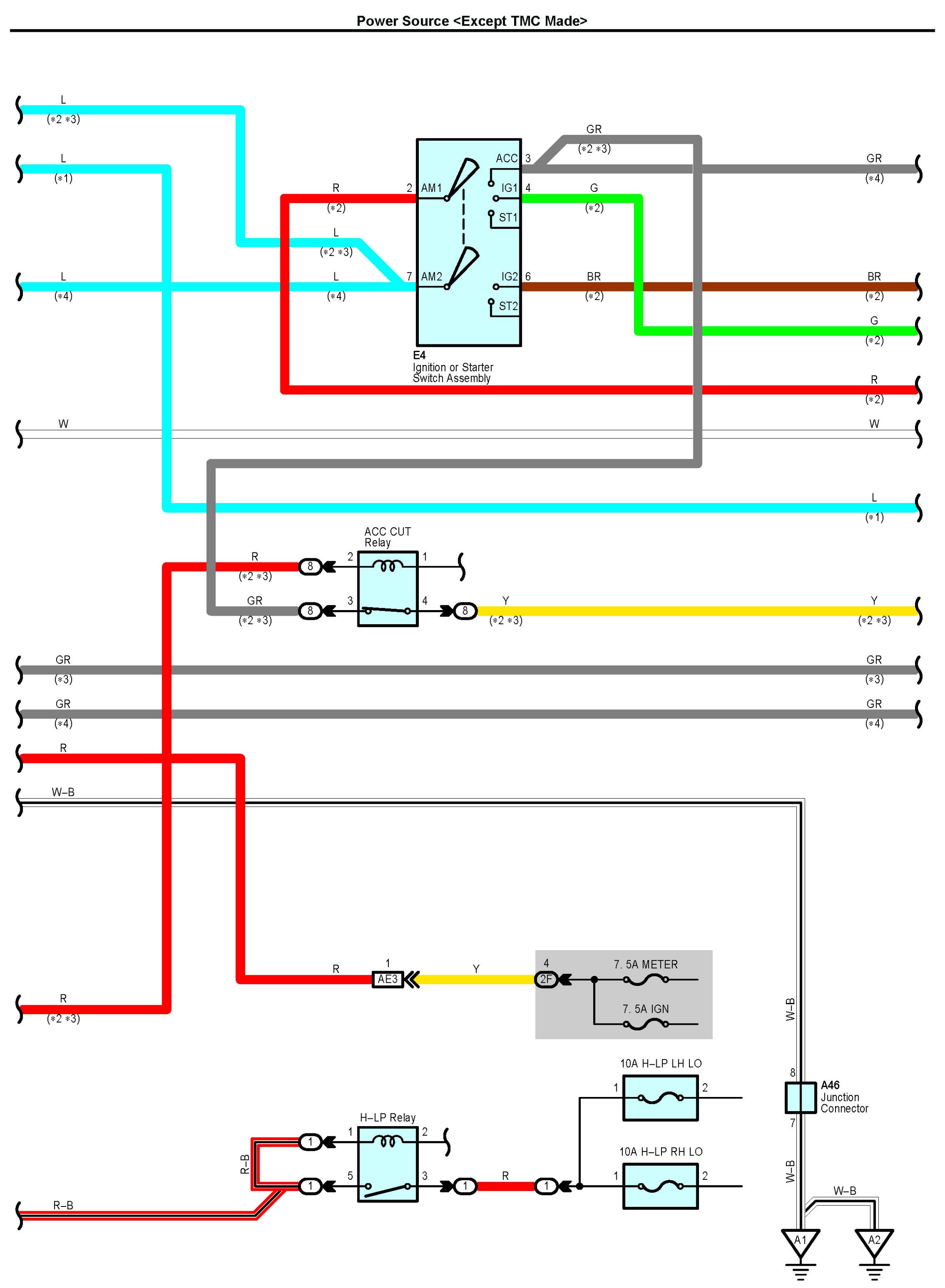

Power Source <Except TMC Made> Part 3:

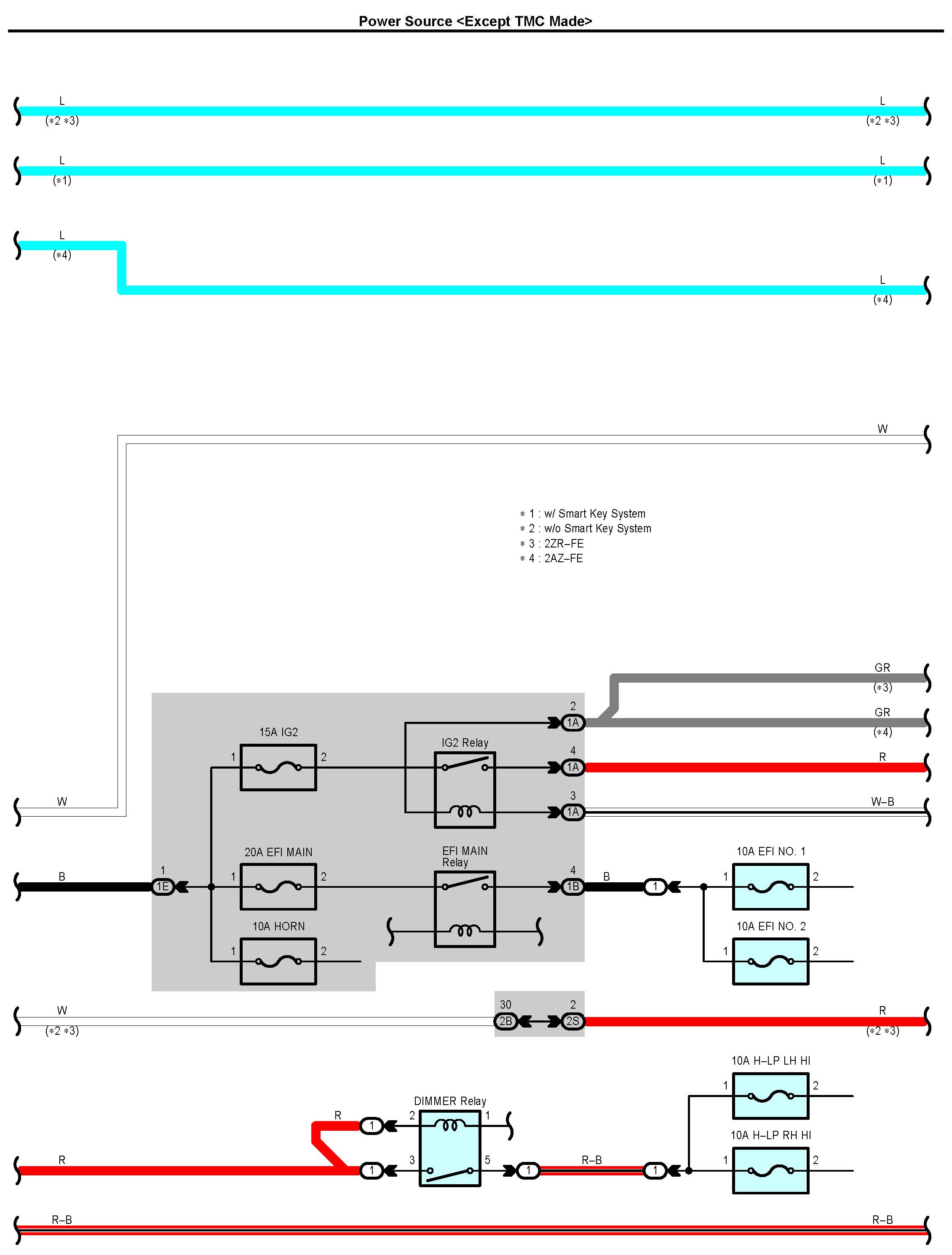

Power Source <Except TMC Made> Part 4:

Power Source <Except TMC Made> Part 5:

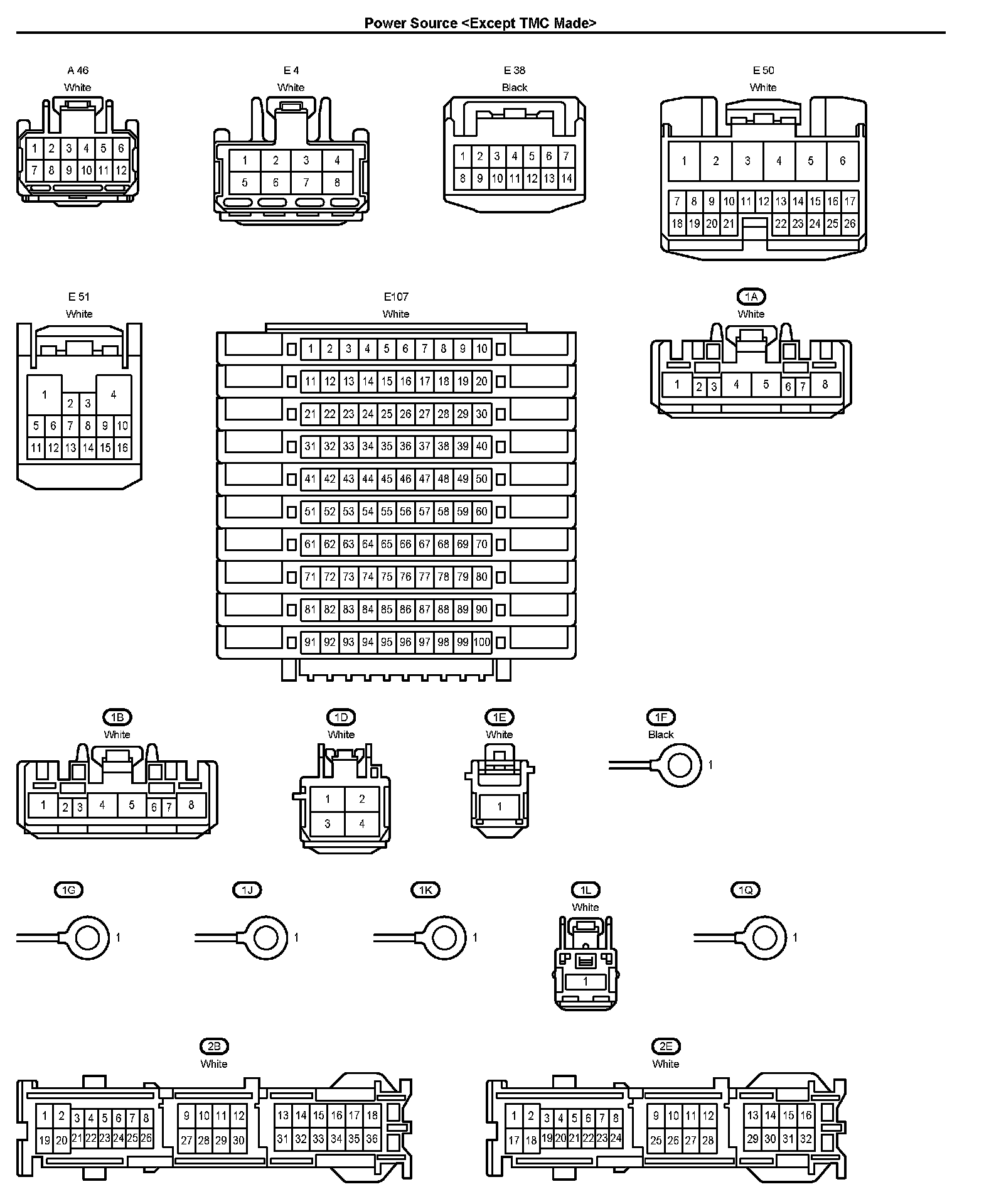

Connectors Part 1:

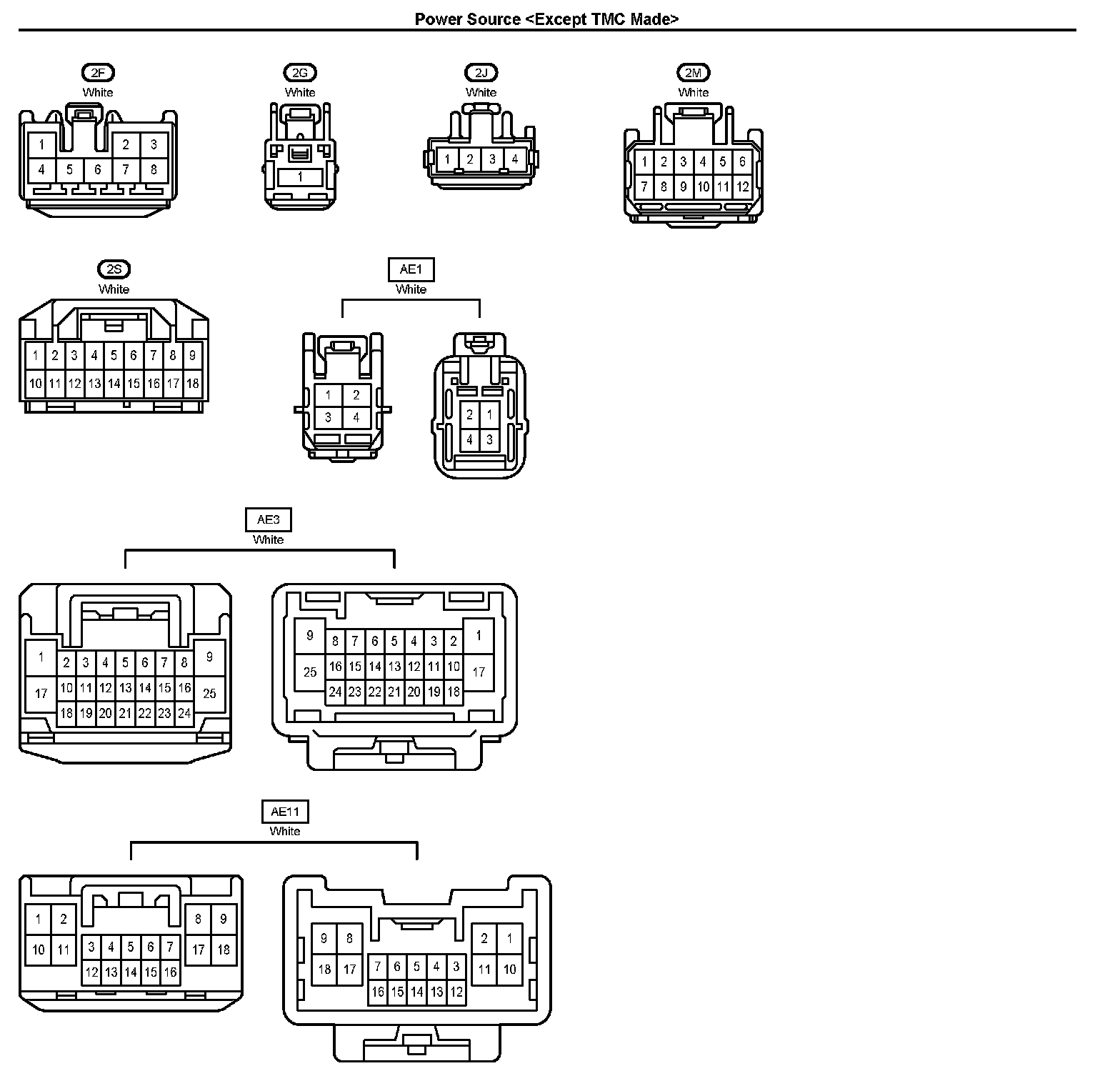

Connectors Part 2:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
