Home
>>
Toyota
>>
2009
>>
Corolla L4-1.8L (2ZR-FE)
>>
Repair and Diagnosis
>>
Locations
>>
Ground Locations
>>

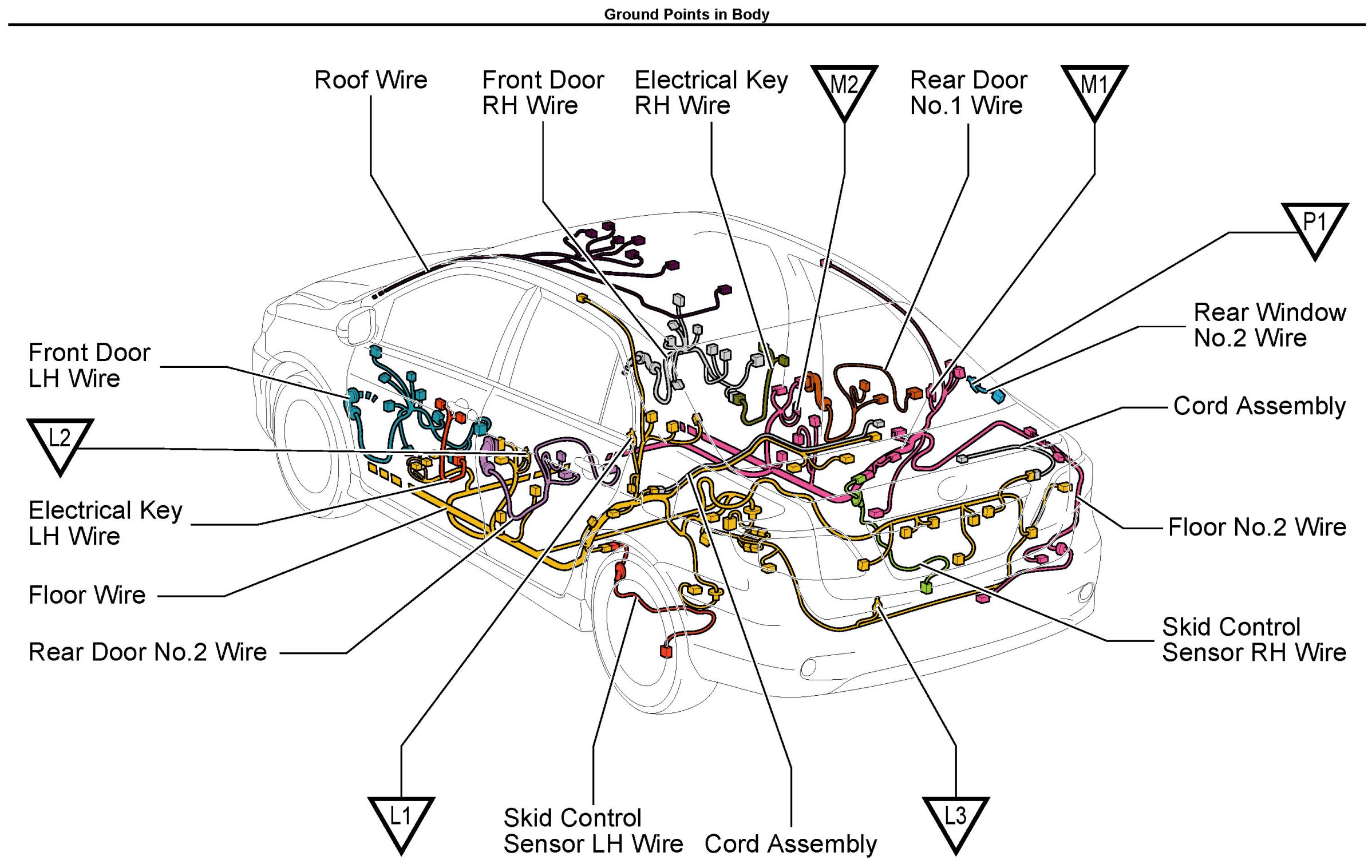

Ground Points In Body
Ground Points In Body
L1-P1:
