Fail-Safe Chart

LIGHTING (EXT): LIGHTING SYSTEM: FAIL-SAFE CHART

FAIL-SAFE CHART

1. AUTOMATIC LIGHT CONTROL FUNCTION

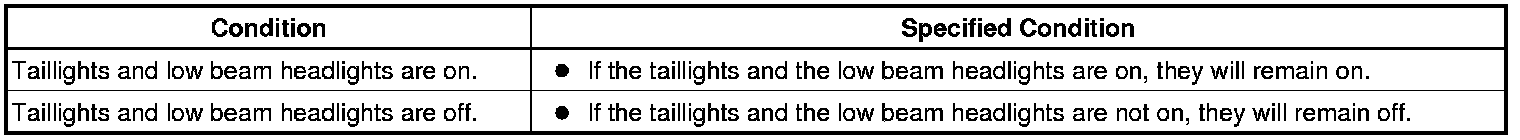

(a) If the daytime running light relay does not receive a signal due to a automatic light control sensor malfunction or open circuit, either of the following conditions will occur.
