Meter / Gauge System

METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM

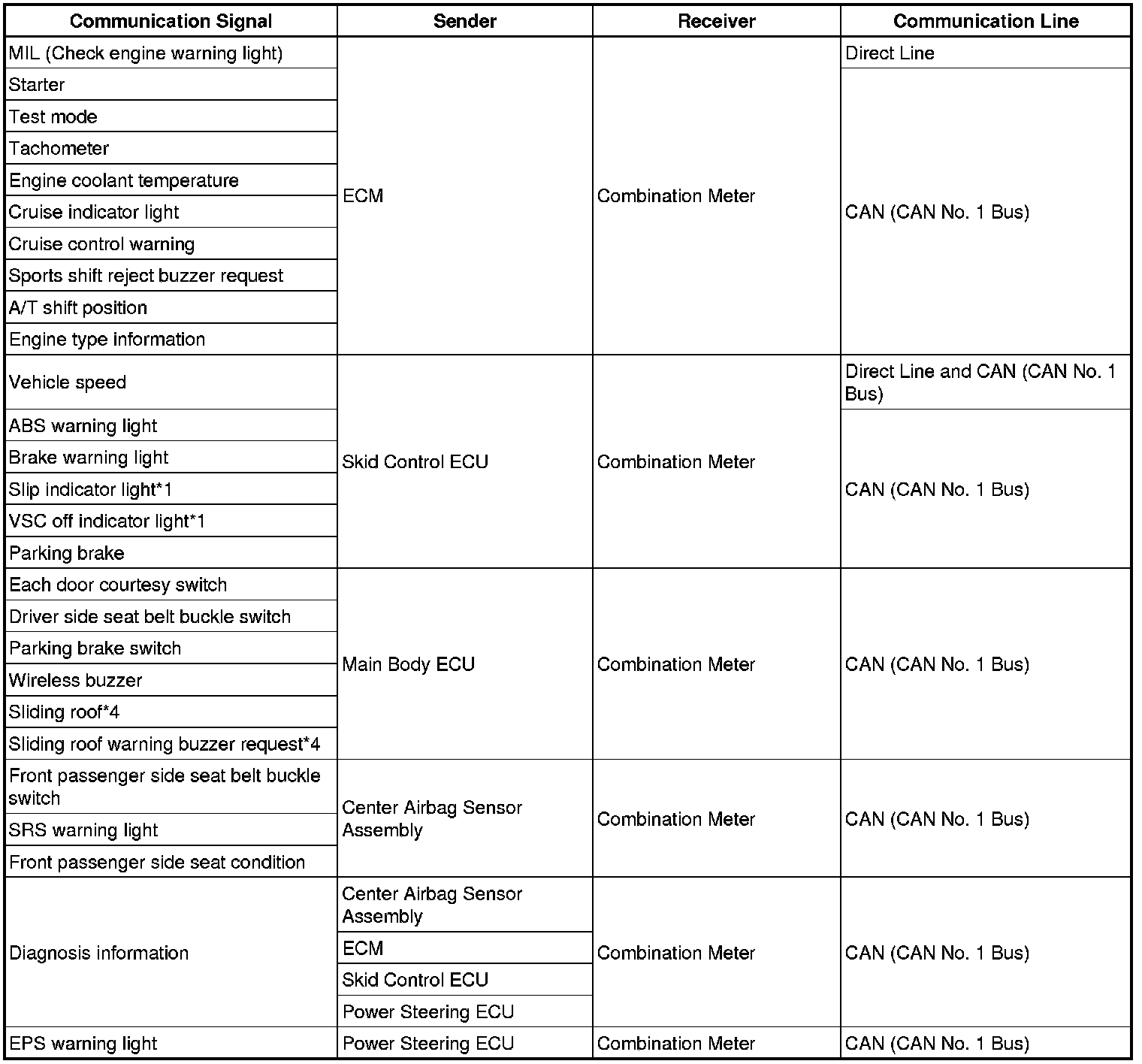

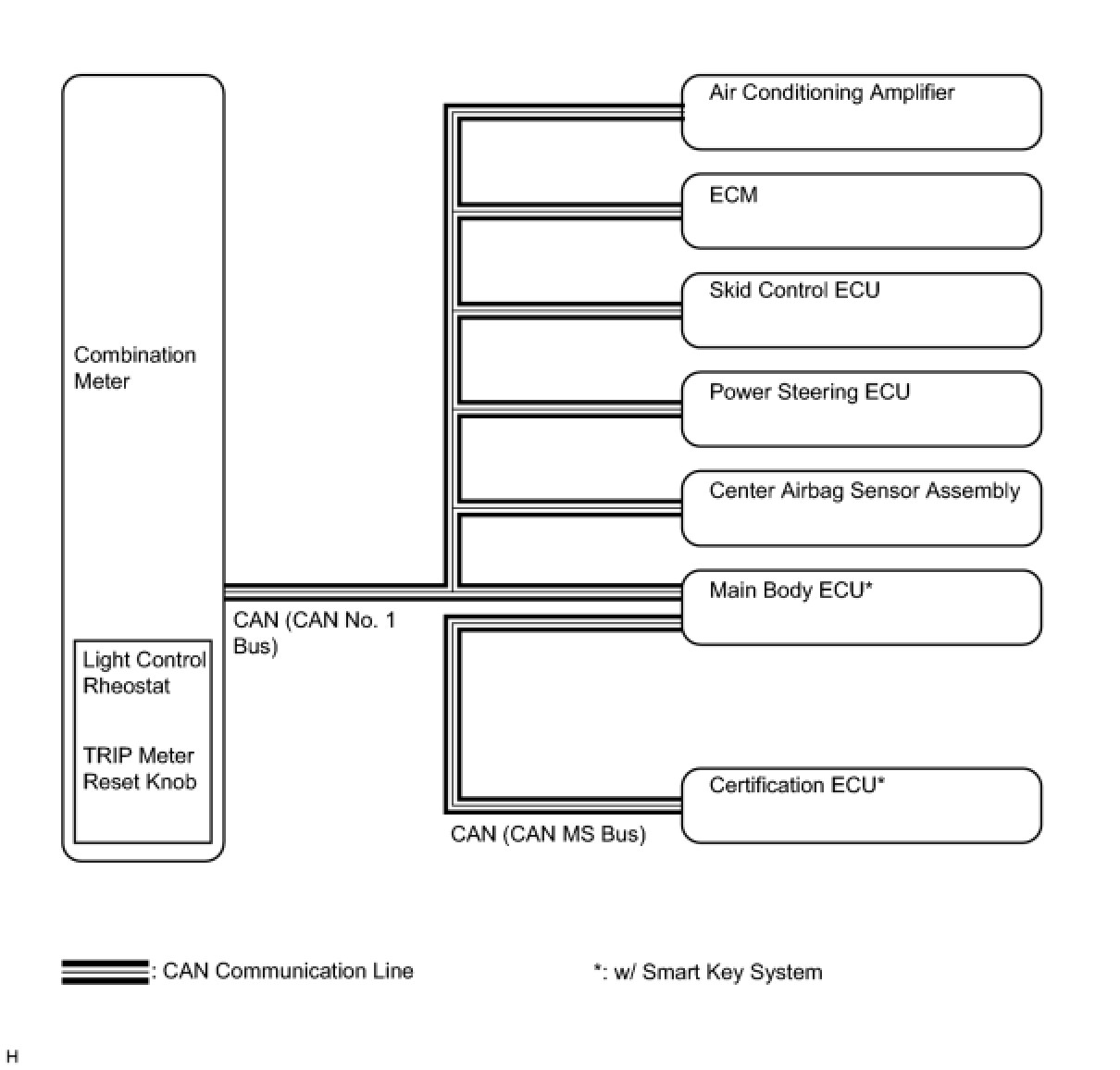

1. CAN SIGNAL

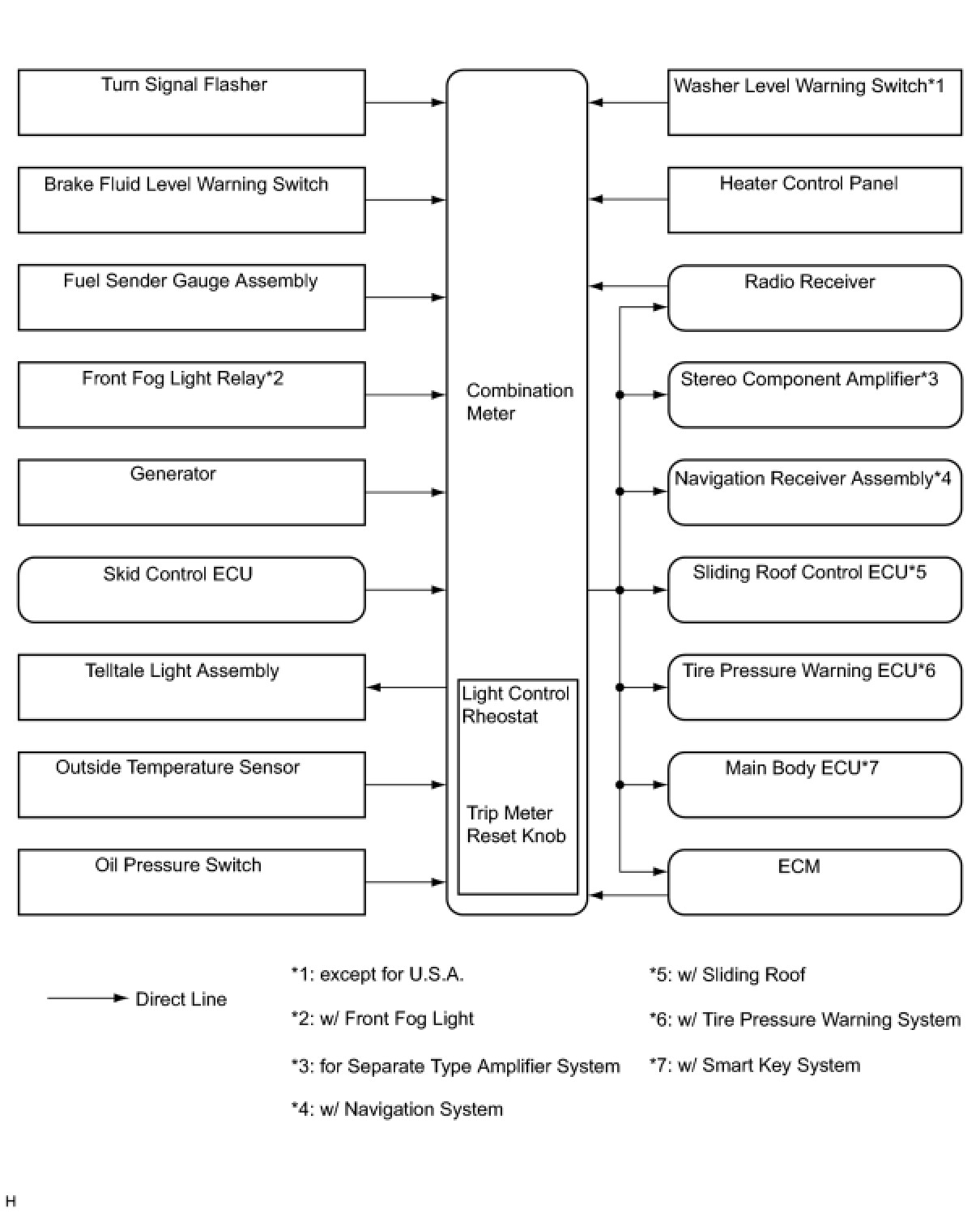

2. DIRECT LINE SIGNAL





3. INPUT AND OUTPUT SIGNALS OF THE COMBINATION METER










- *1: w/ VSC
- *2: for U.S.A.
- *3: except for U.S.A.
- *4: w/ Sliding Roof
- *5: w/ Front Fog Light
- *6: w/ Tire Pressure Warning System
- *7: w/ Smart Key System
- *8: w/ Navigation System
- *9: for Separate Type Amplifier System


METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM: SYSTEM DESCRIPTION

SYSTEM DESCRIPTION

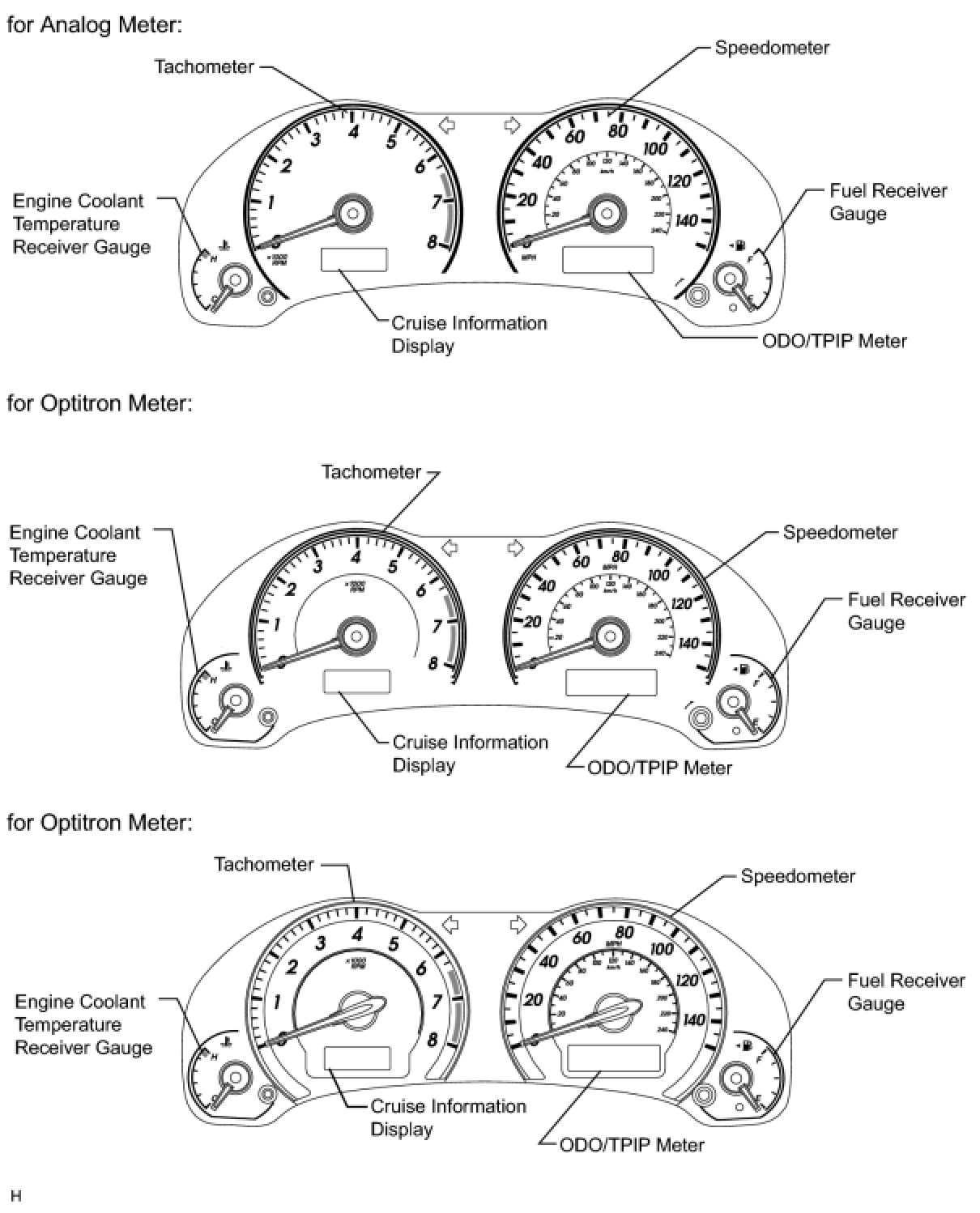

1. OUTLINE OF THE COMBINATION METER

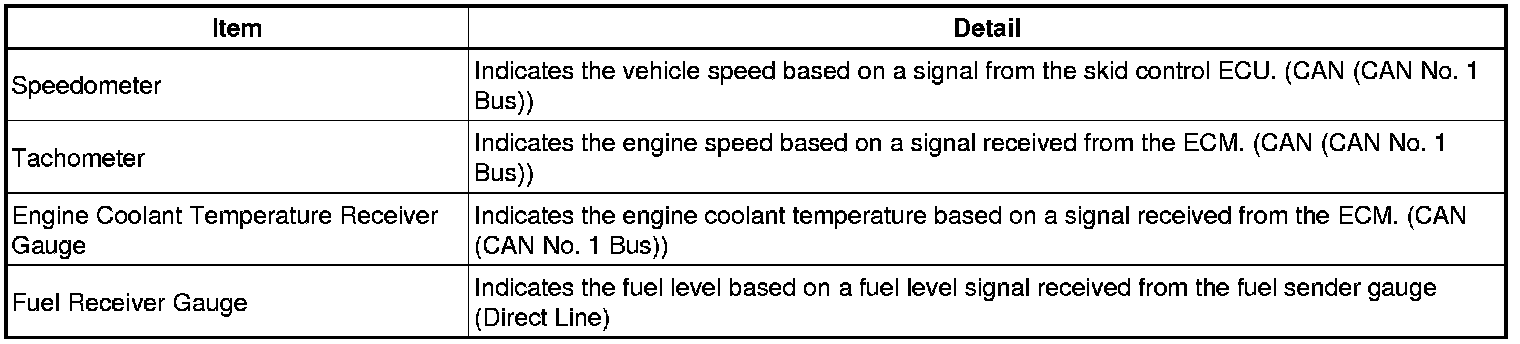

(a) Meter/Gauge

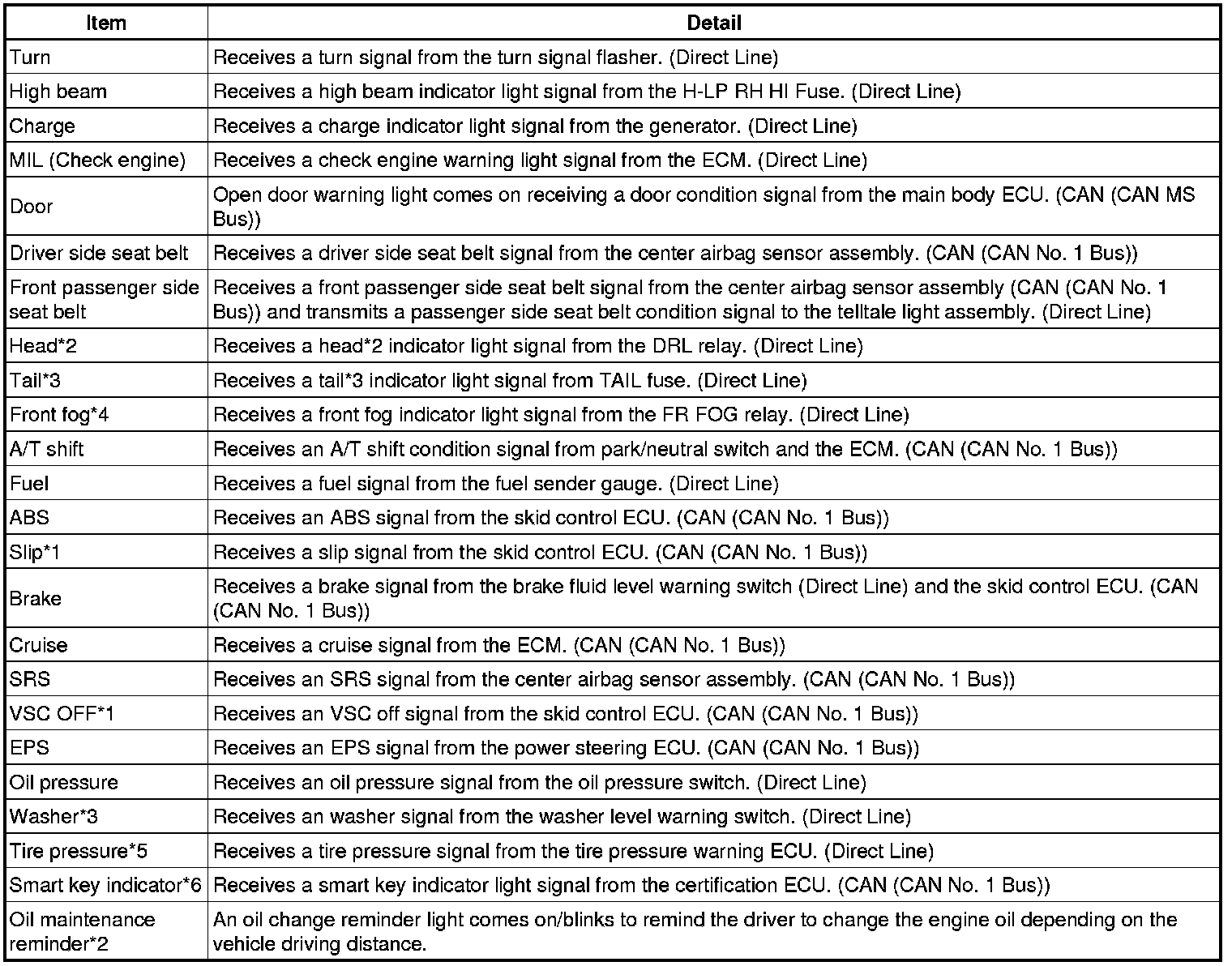

(b) Warning/Indicator





- *1: w/ VSC
- *2: for U.S.A.
- *3: except for U.S.A.
- *4: w/ Front Fog Light
- *5 w/ Tire Pressure Warning System
- *6 w/ Smart Key System

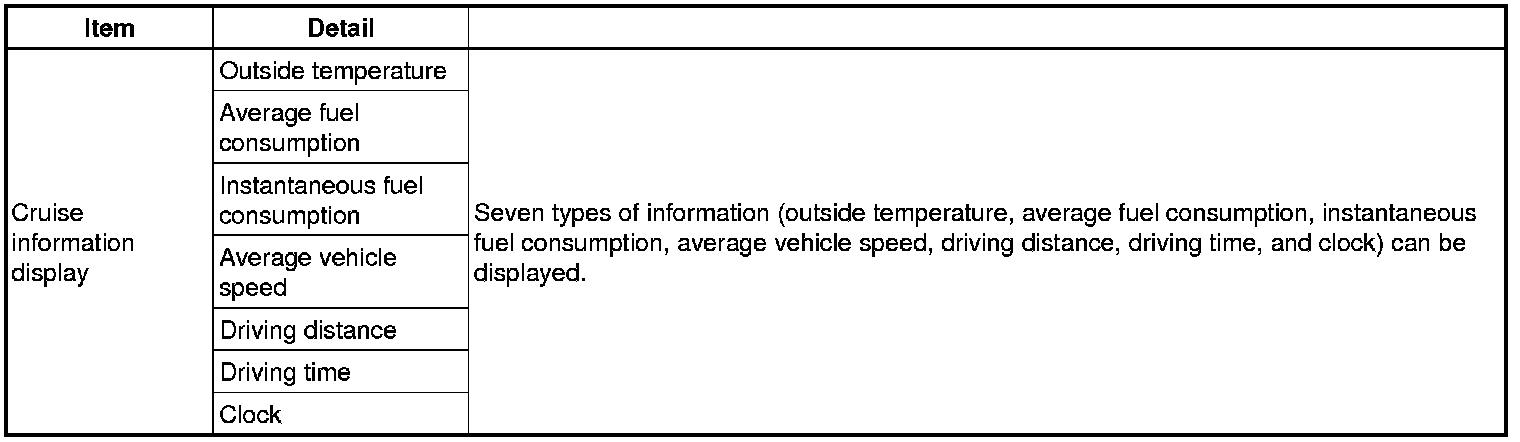

(c) Cruise Information Display






2. LED INITIAL CHECK

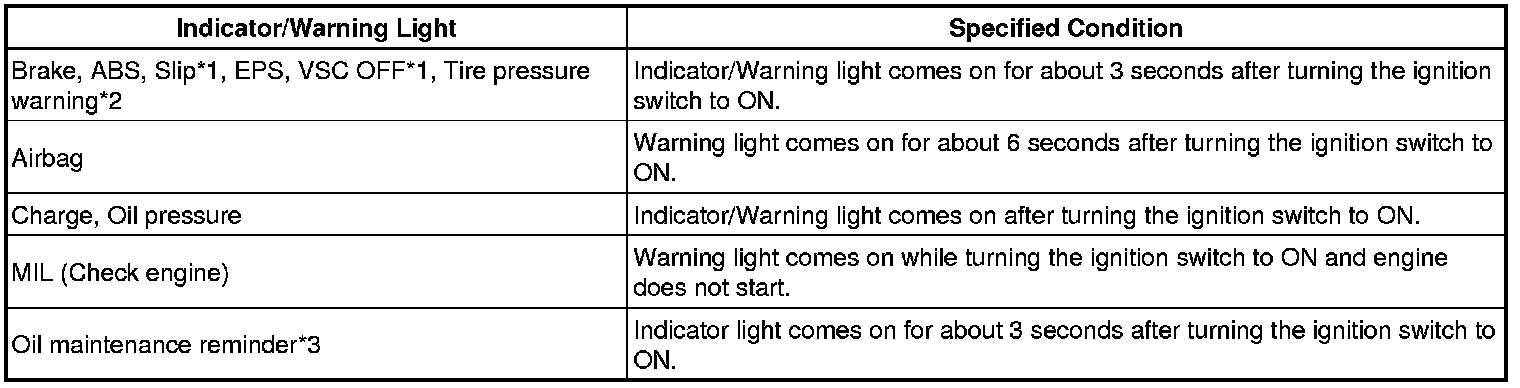

(a) The illumination function of the warning, indicator, or reminder light listed below can be confirmed when turning the ignition switch to ON.
OK:





- *1: w/ VSC
- *2: w/ Tire Pressure Warning System
- *3: for U.S.A.
