Removal

POWER OUTLETS (INT): CIGARETTE LIGHTER: REMOVAL

REMOVAL

1. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH Removal
2. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL RH Removal
3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) Removal
4. REMOVE CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Manual Transaxle) Removal
5. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle) Removal
6. REMOVE CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Automatic Transaxle) Removal
7. REMOVE INSTRUMENT PANEL BOX ASSEMBLY Removal
8. REMOVE CIGARETTE LIGHTER ASSEMBLY





(a) Disconnect the connector.
(b) Disengage the clamp and disconnect the connector.

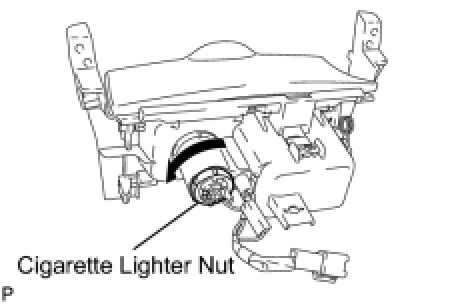

(c) Turn the cigarette lighter nut to remove it.





(d) Remove the cigarette lighter retainer.

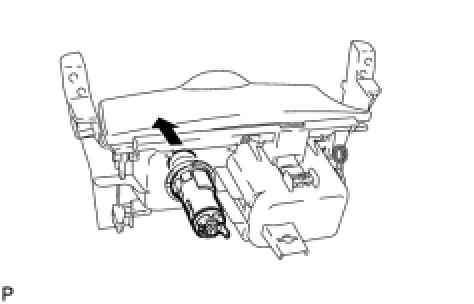

(e) Remove the cigarette lighter socket.
