Removal

HEATING / AIR CONDITIONING: FRONT BLOWER MOTOR: REMOVAL

REMOVAL

1. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (w/ Instrument Panel Under Cover) Removal

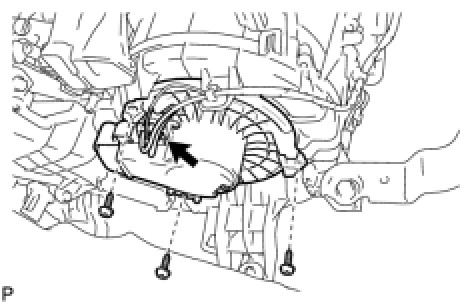

2. REMOVE BLOWER MOTOR SUB-ASSEMBLY (w/o PTC Heater)





(a) Disconnect the connector.
(b) Remove the 3 screws and the blower motor sub-assembly.

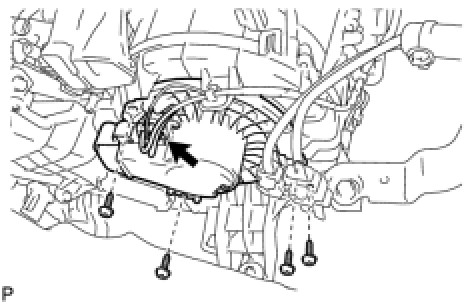

3. REMOVE BLOWER MOTOR SUB-ASSEMBLY (w/ PTC Heater)





(a) Remove the quick heater connector screw.
(b) Disconnect the connector.
(c) Remove the 4 screws and the blower motor sub-assembly.
