Front Wiper and Washer (Except TMC Made)

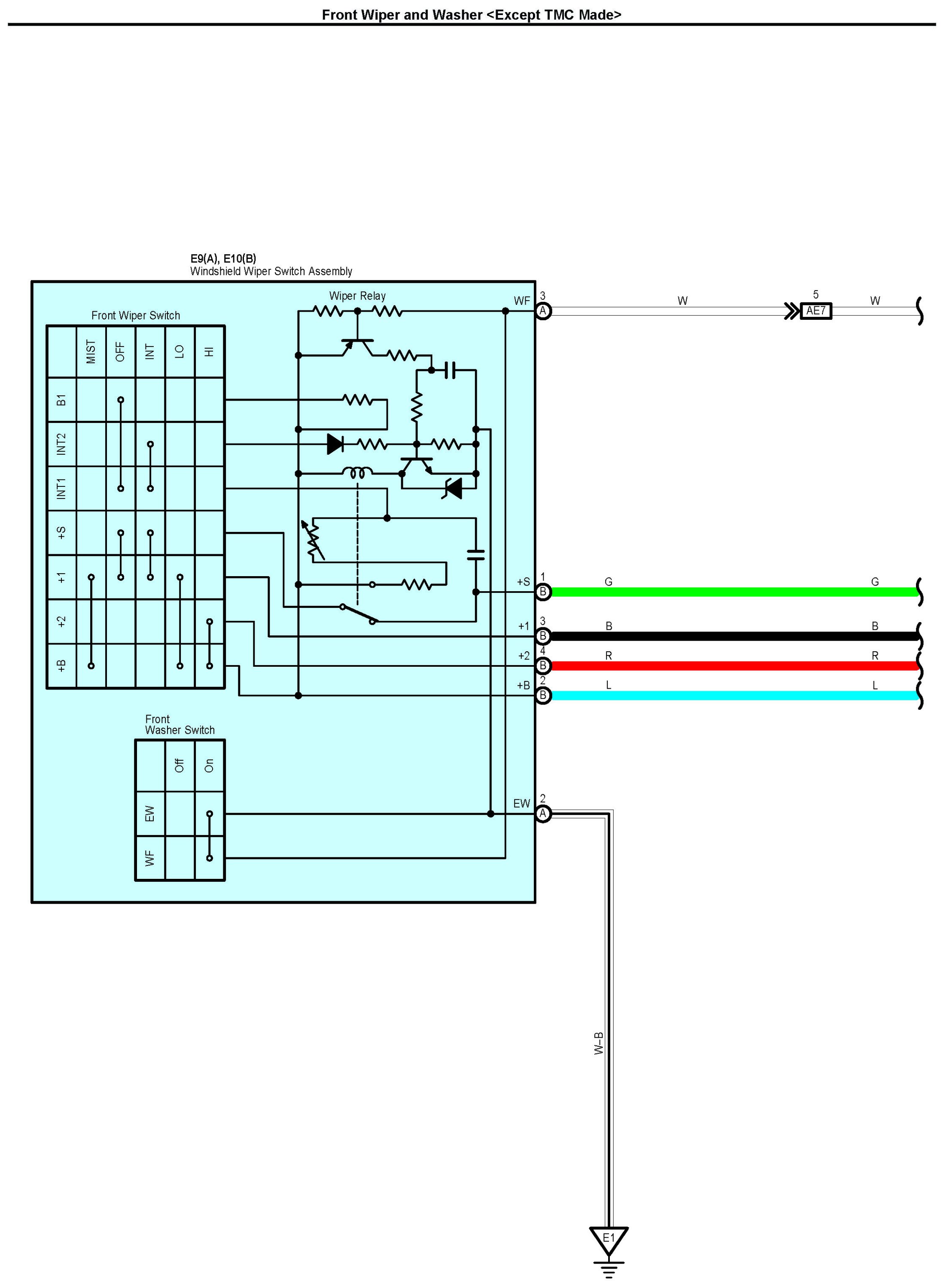

Front Wiper And Washer <Except TMC Made> Part 1:

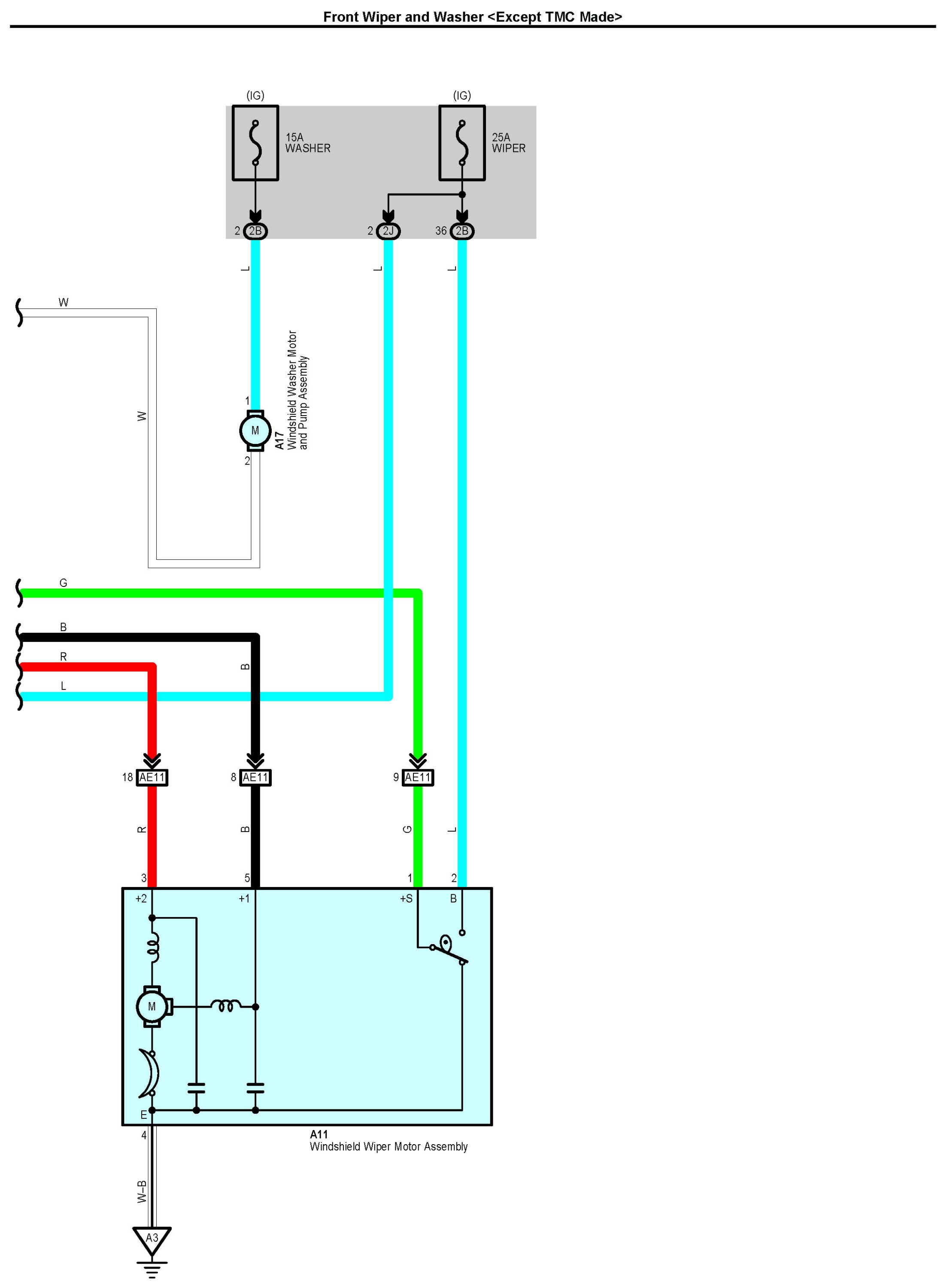

Front Wiper And Washer <Except TMC Made> Part 2:

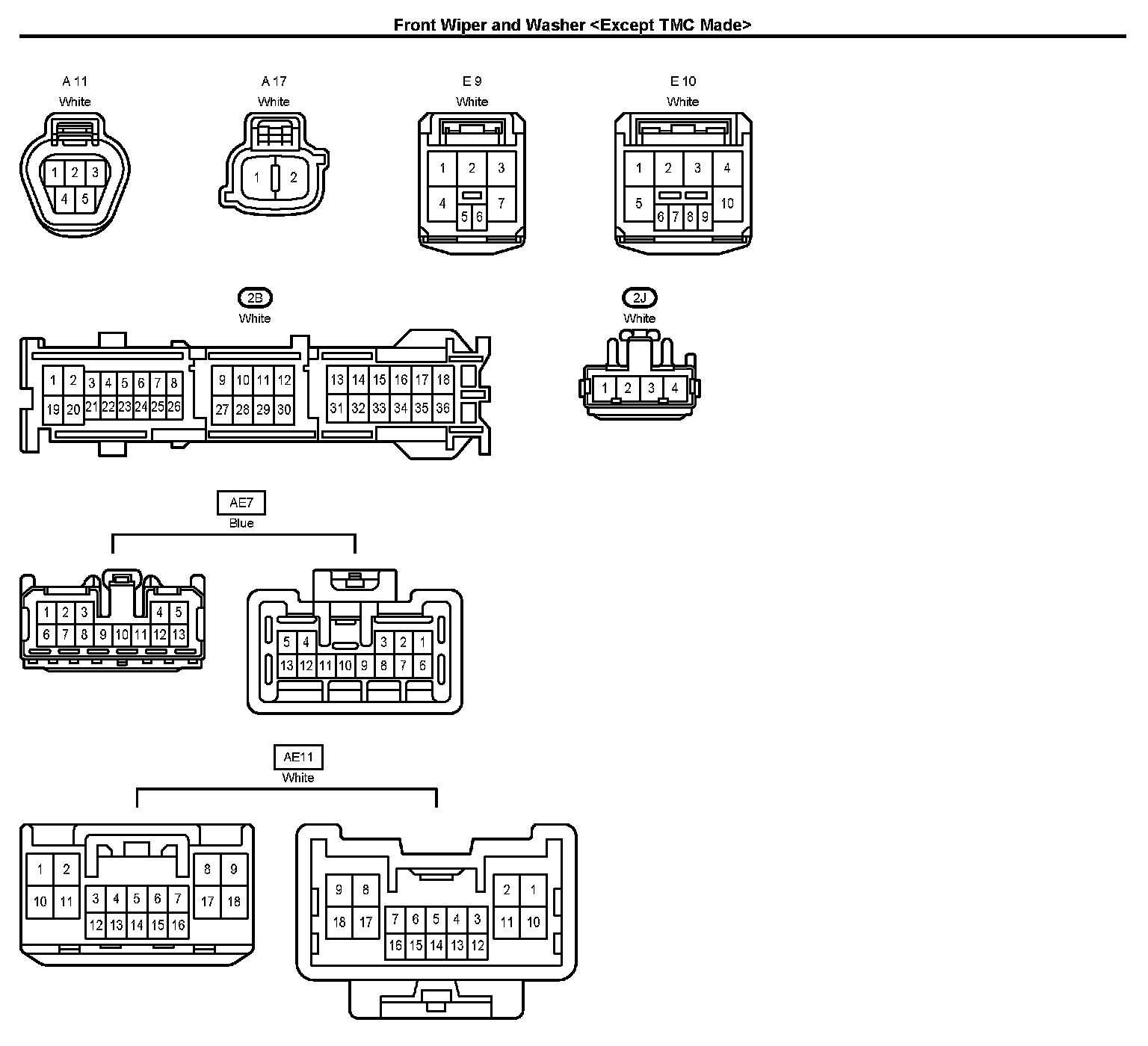

Connectors:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
