ABS (w/ VSC, Except TMC Made), TRAC (TMC Made), VSC (TMC Made)

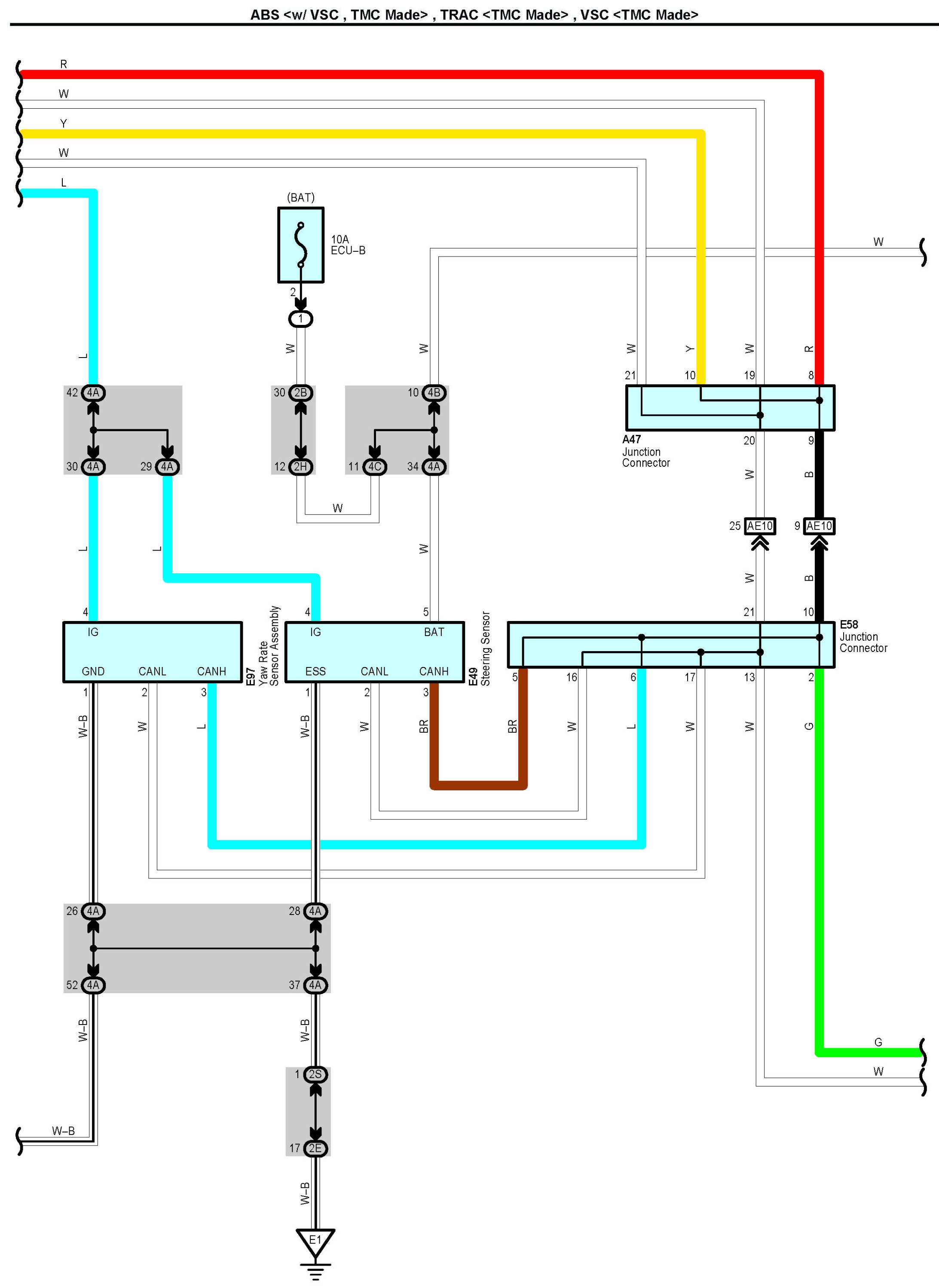

ABS <w/ VSC, TMC Made>, TRAC <TMC Made>, VSC <TMC Made> Part 1:

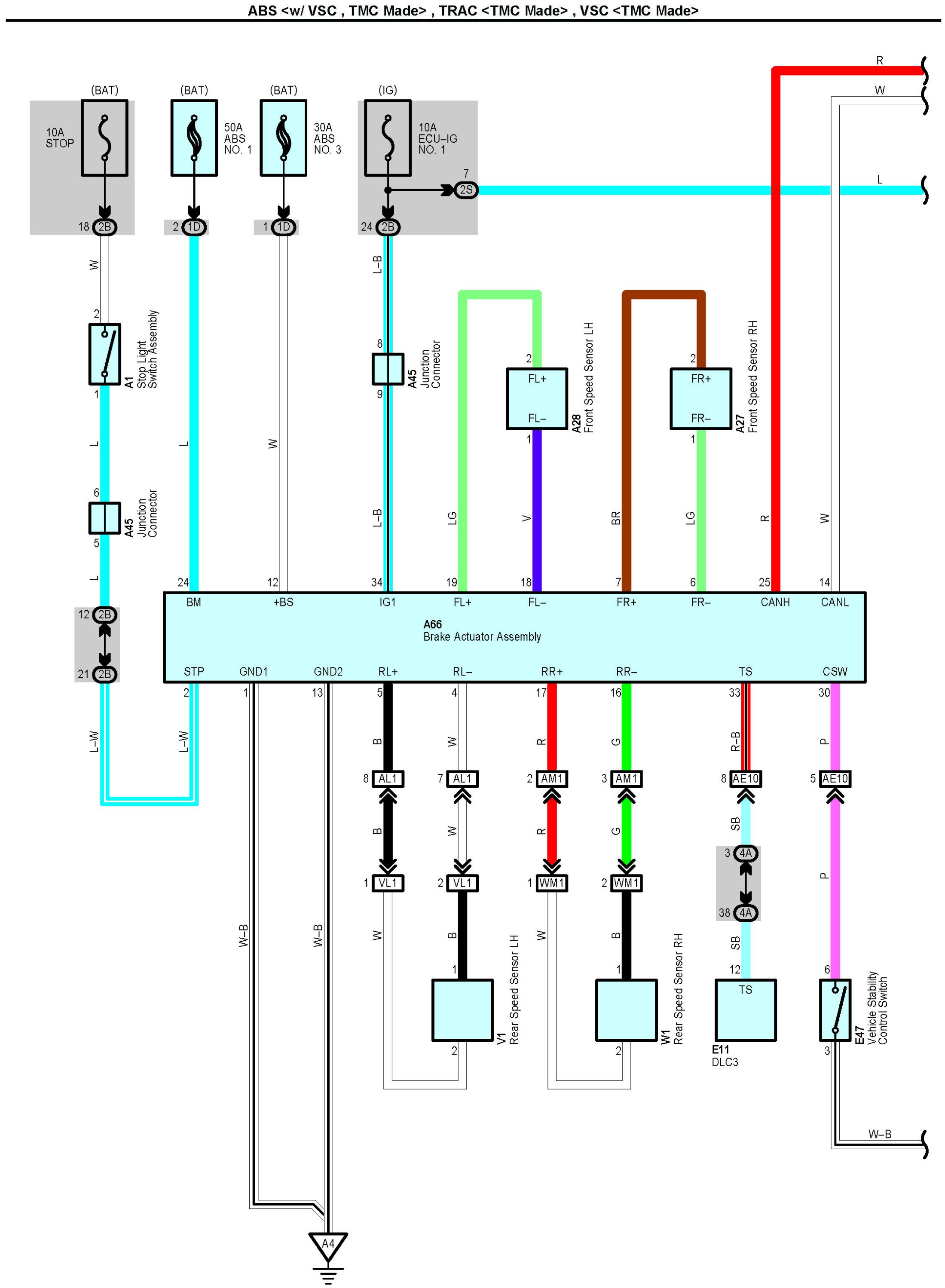

ABS <w/ VSC, TMC Made>, TRAC <TMC Made>, VSC <TMC Made> Part 2:

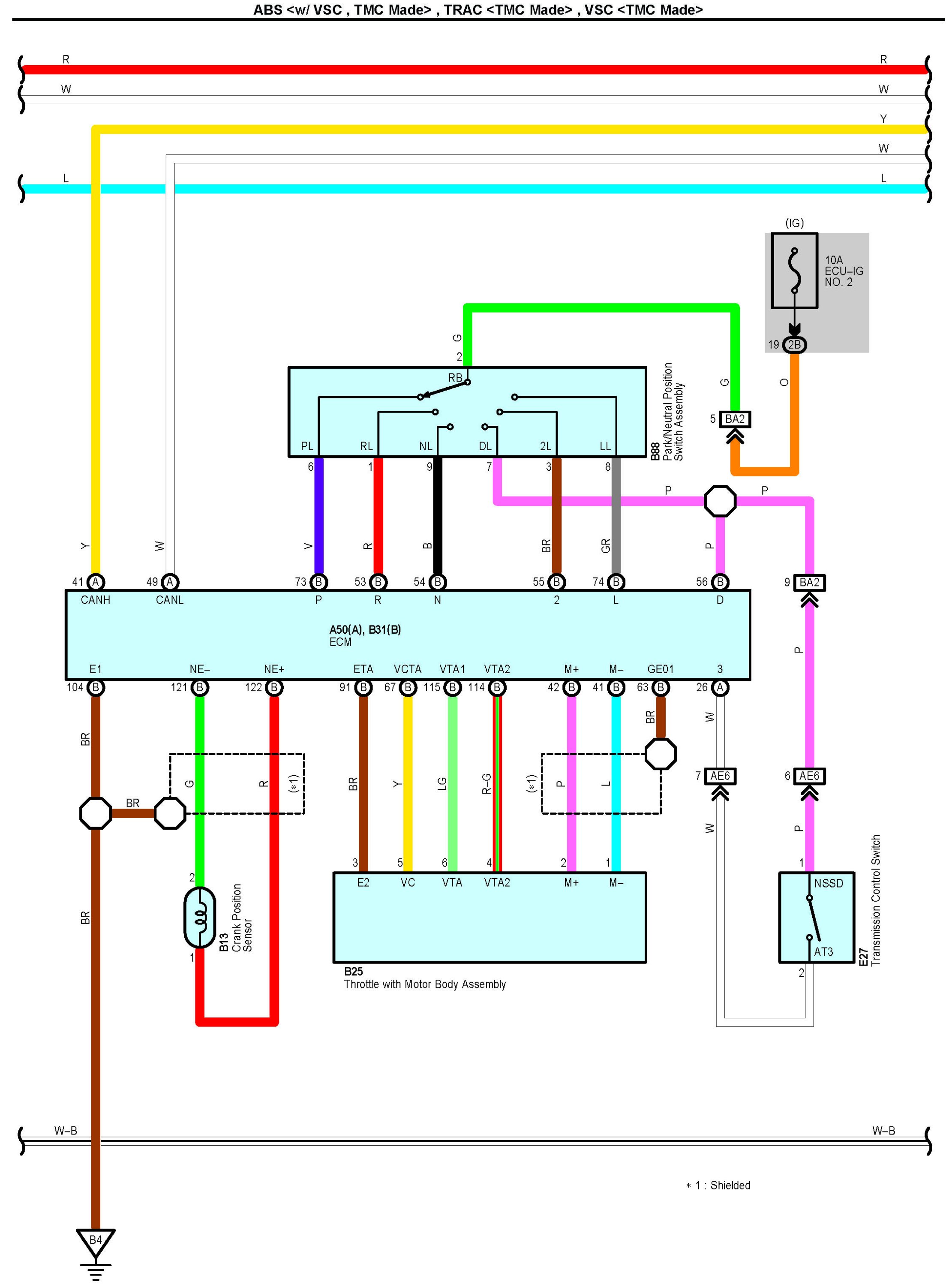

ABS <w/ VSC, TMC Made>, TRAC <TMC Made>, VSC <TMC Made> Part 3:

ABS <w/ VSC, TMC Made>, TRAC <TMC Made>, VSC <TMC Made> Part 4:

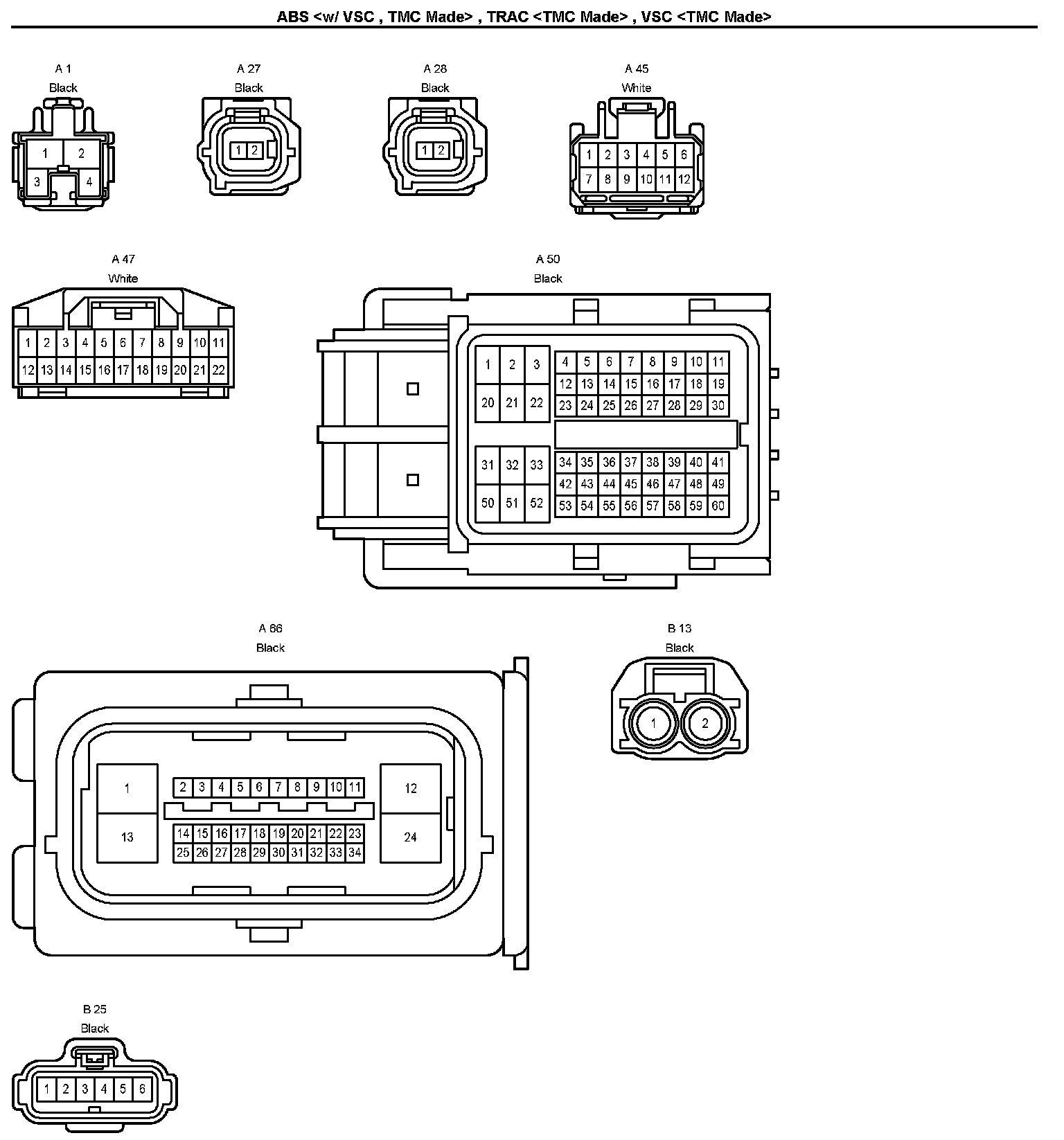

Connectors Part 1:

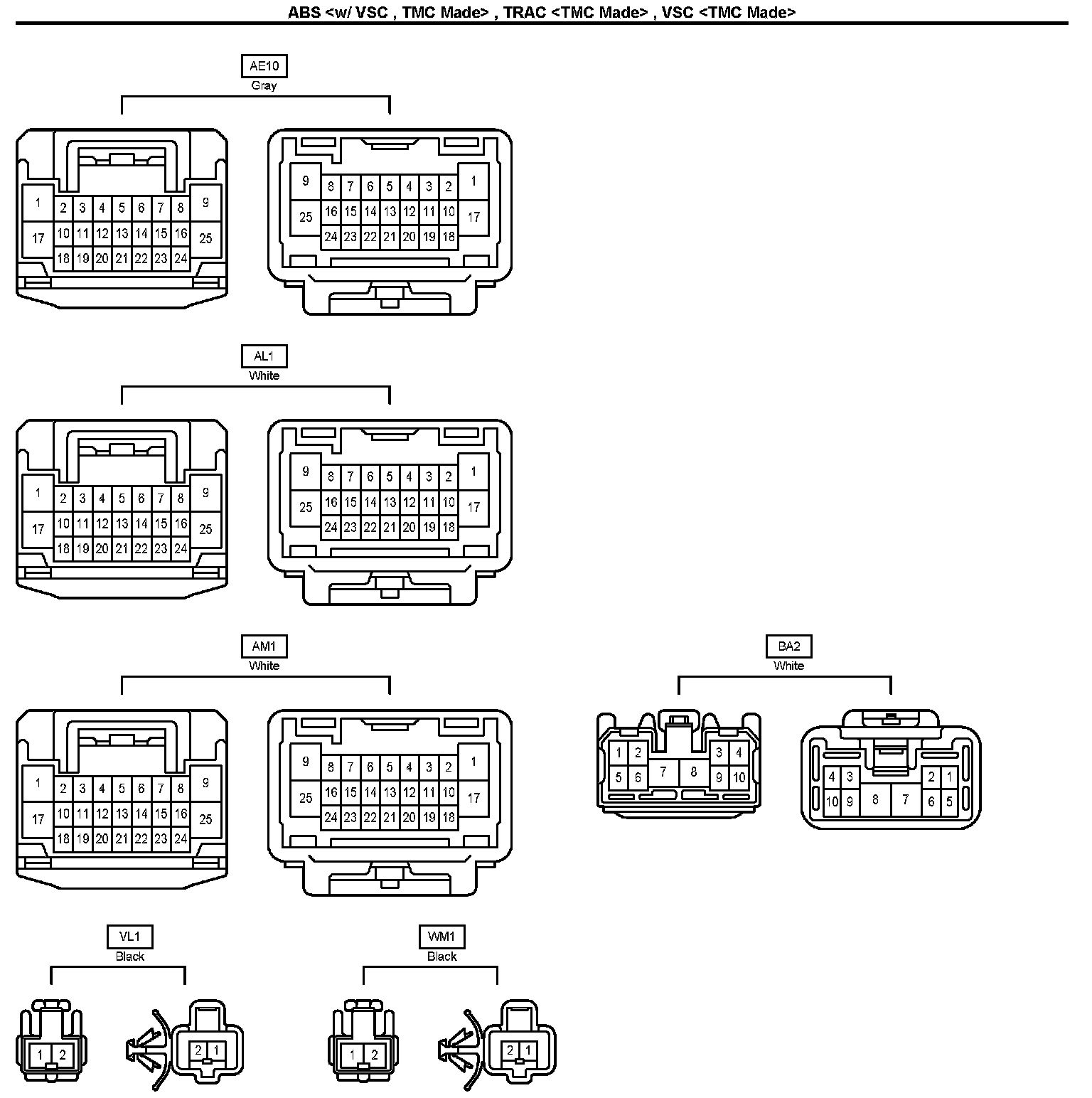

Connectors Part 2:

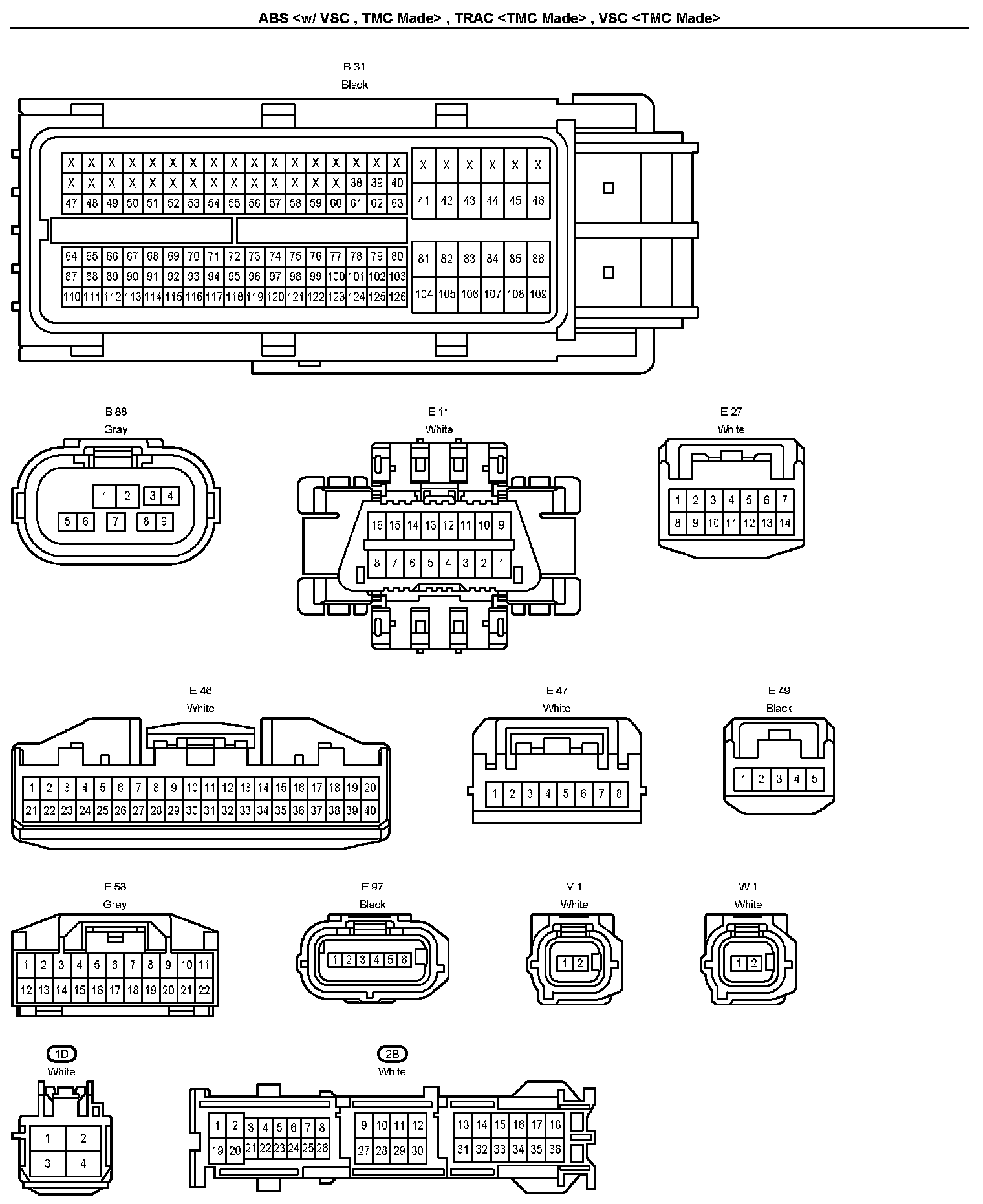

Connectors Part 3:

Connectors Part 4:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
