Position of Parts In Instrument Panel (TMC Made)

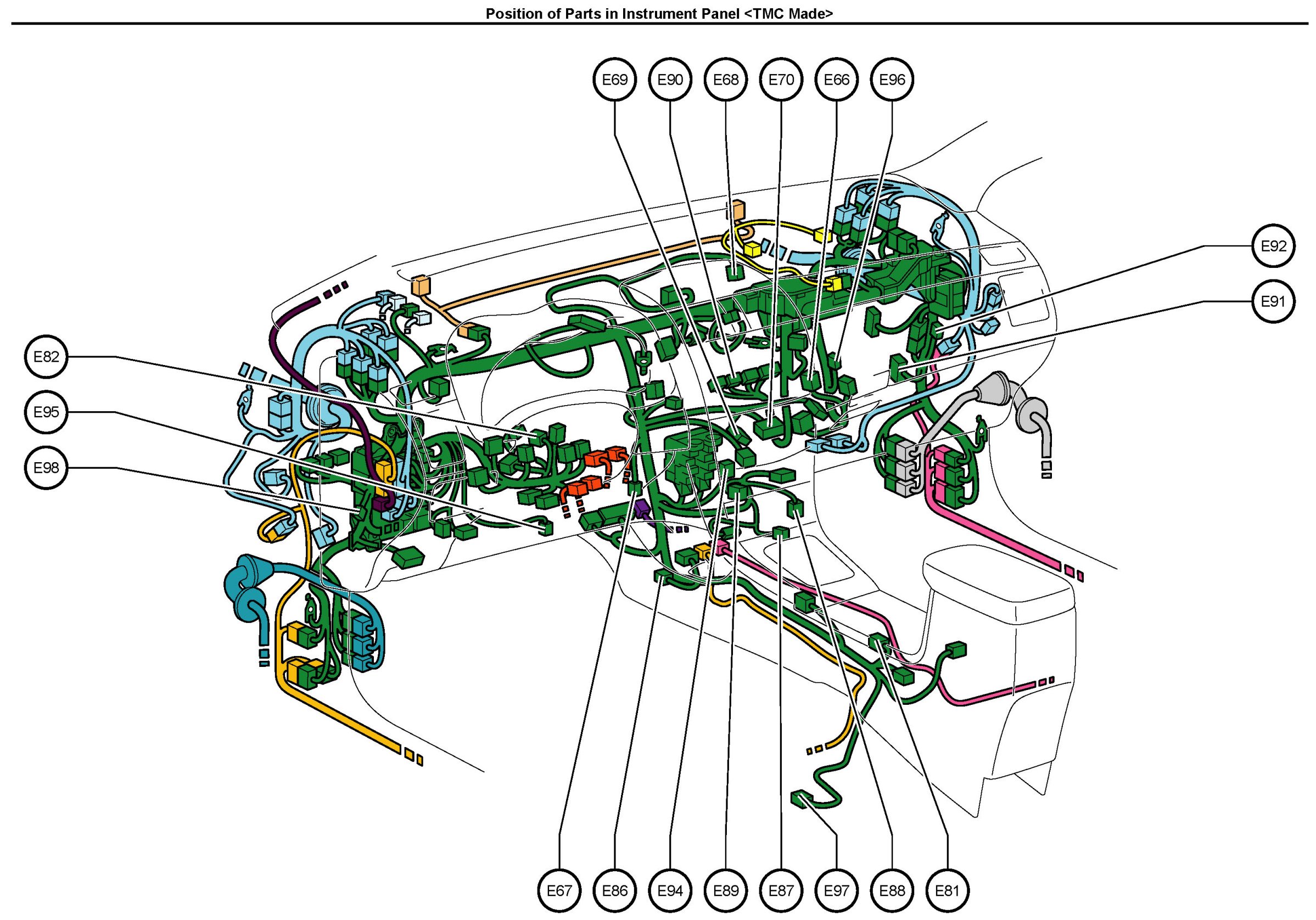

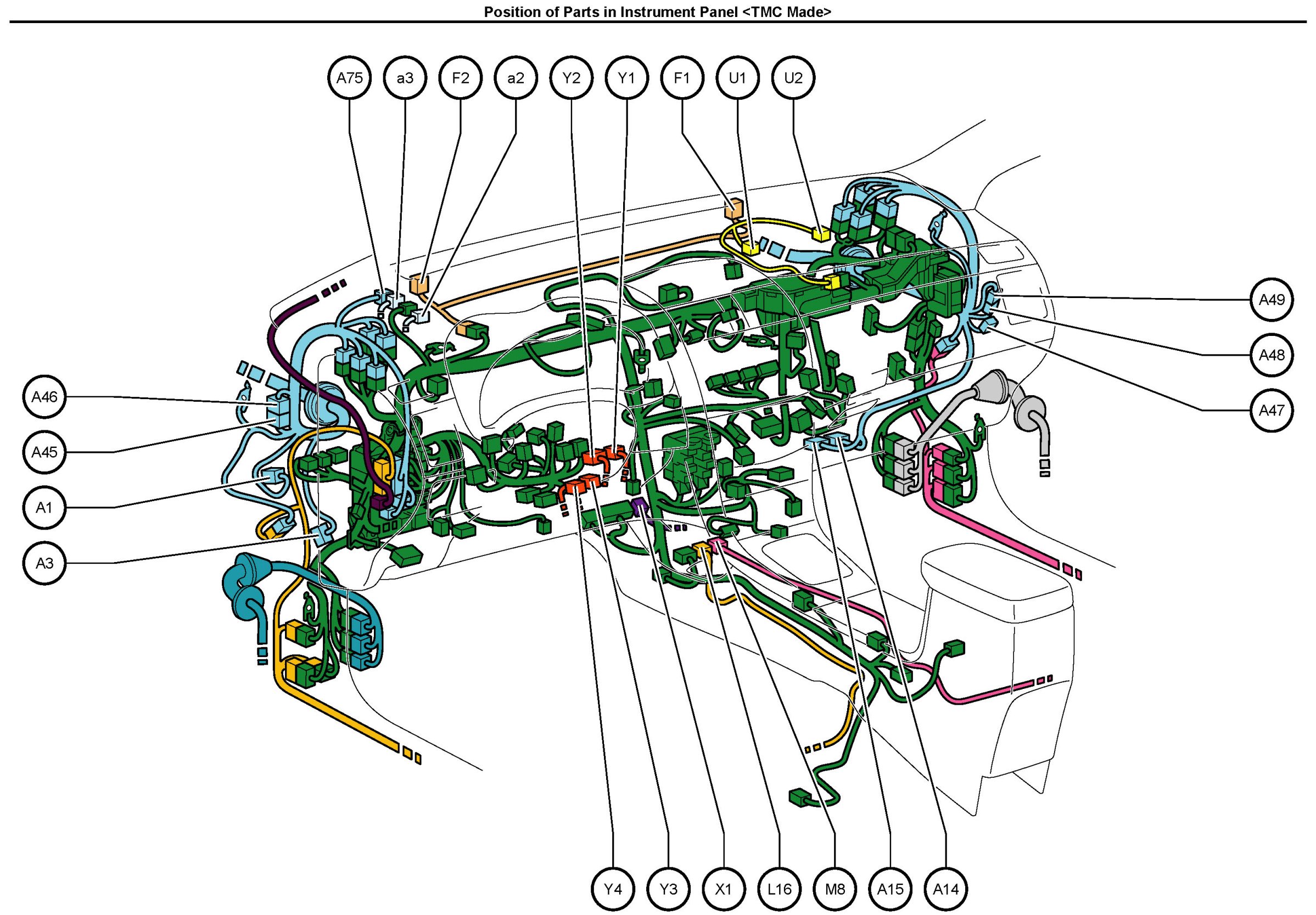

Position Of Parts In Instrument Panel <TMC Made>:

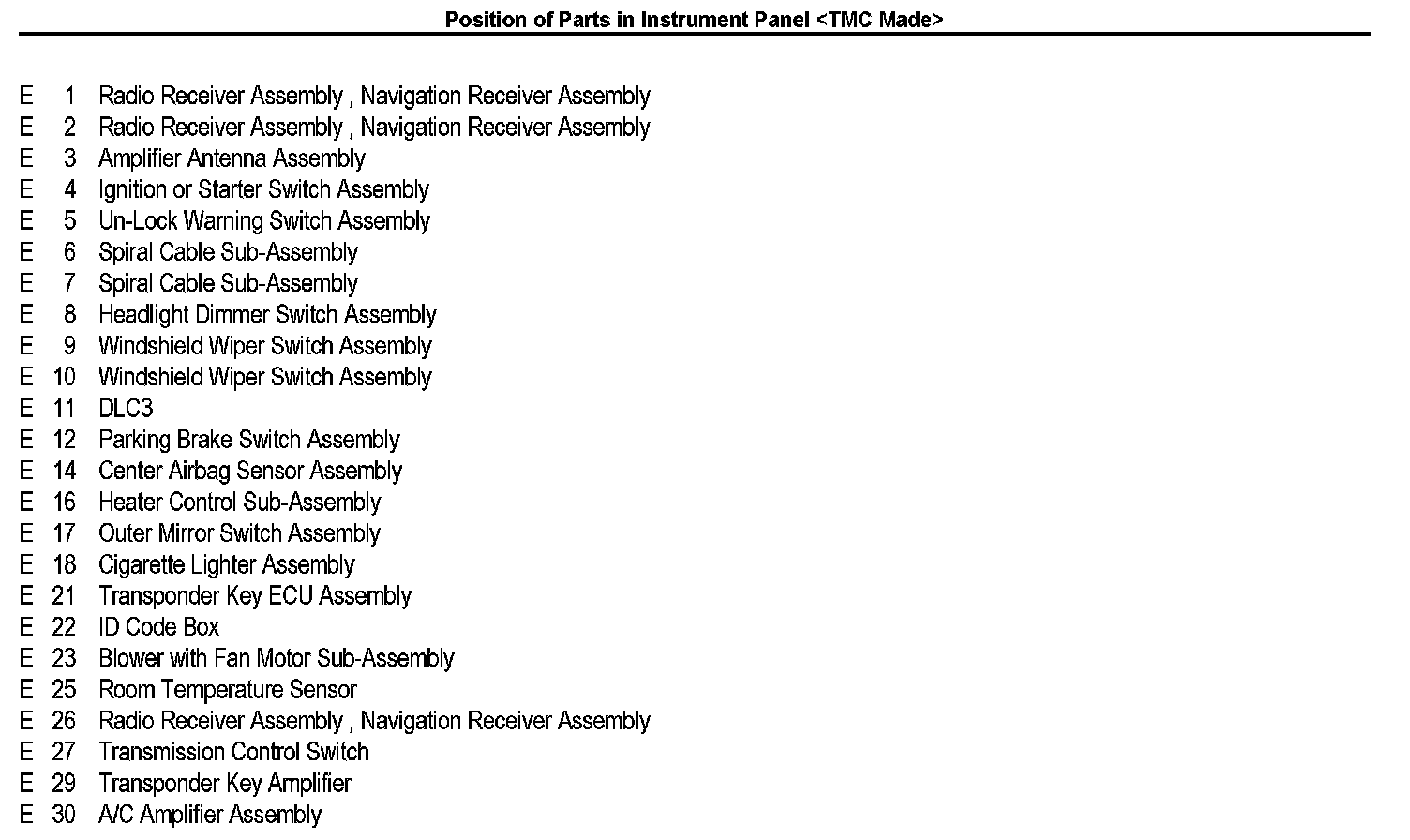

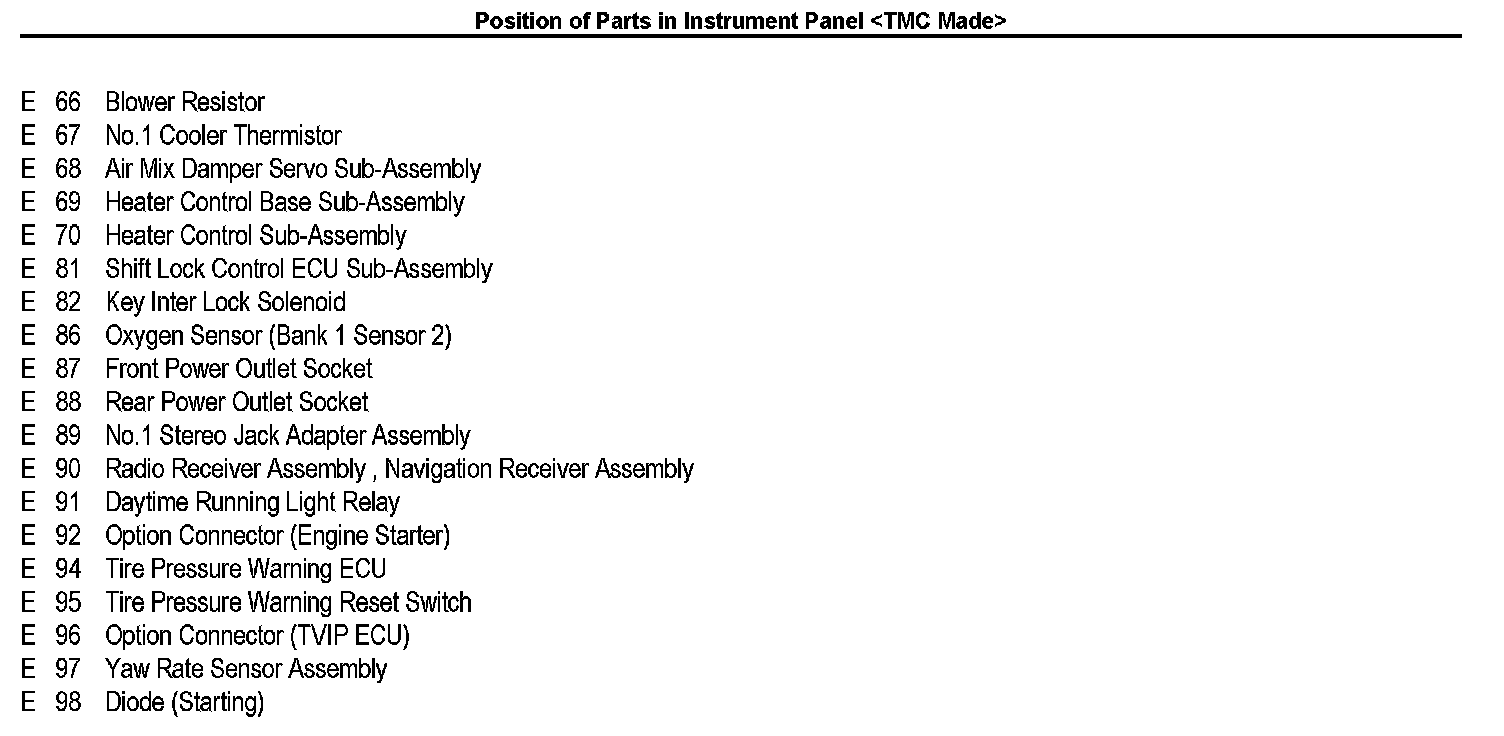

Legend:

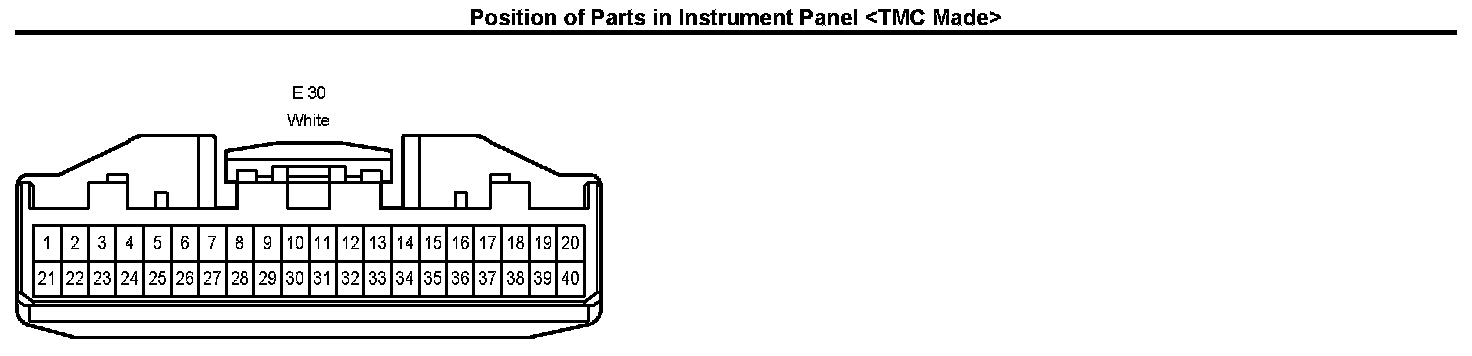

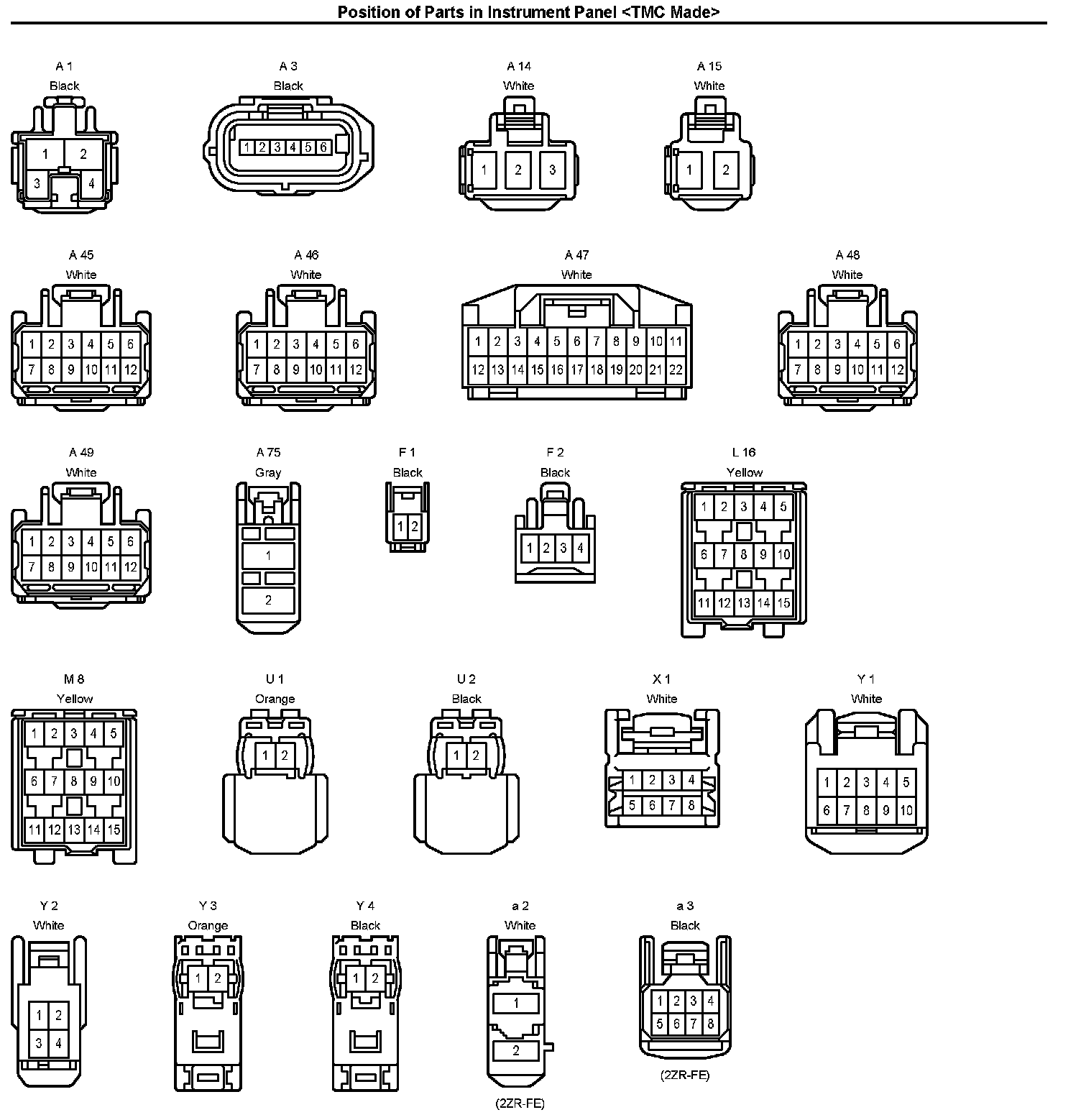

Connector Views:



Connector Views:



Position Of Parts In Instrument Panel <TMC Made>:

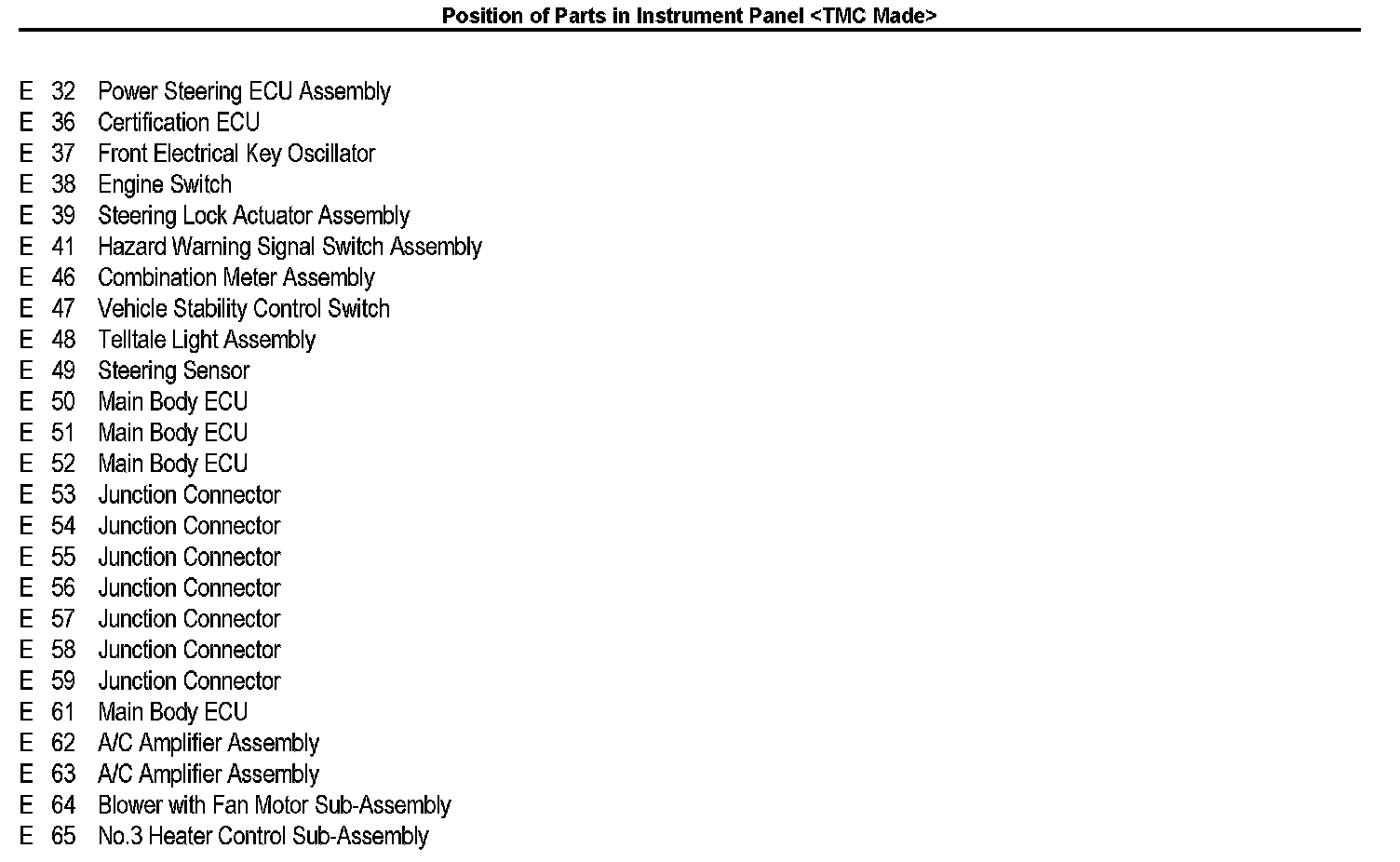

Legend:

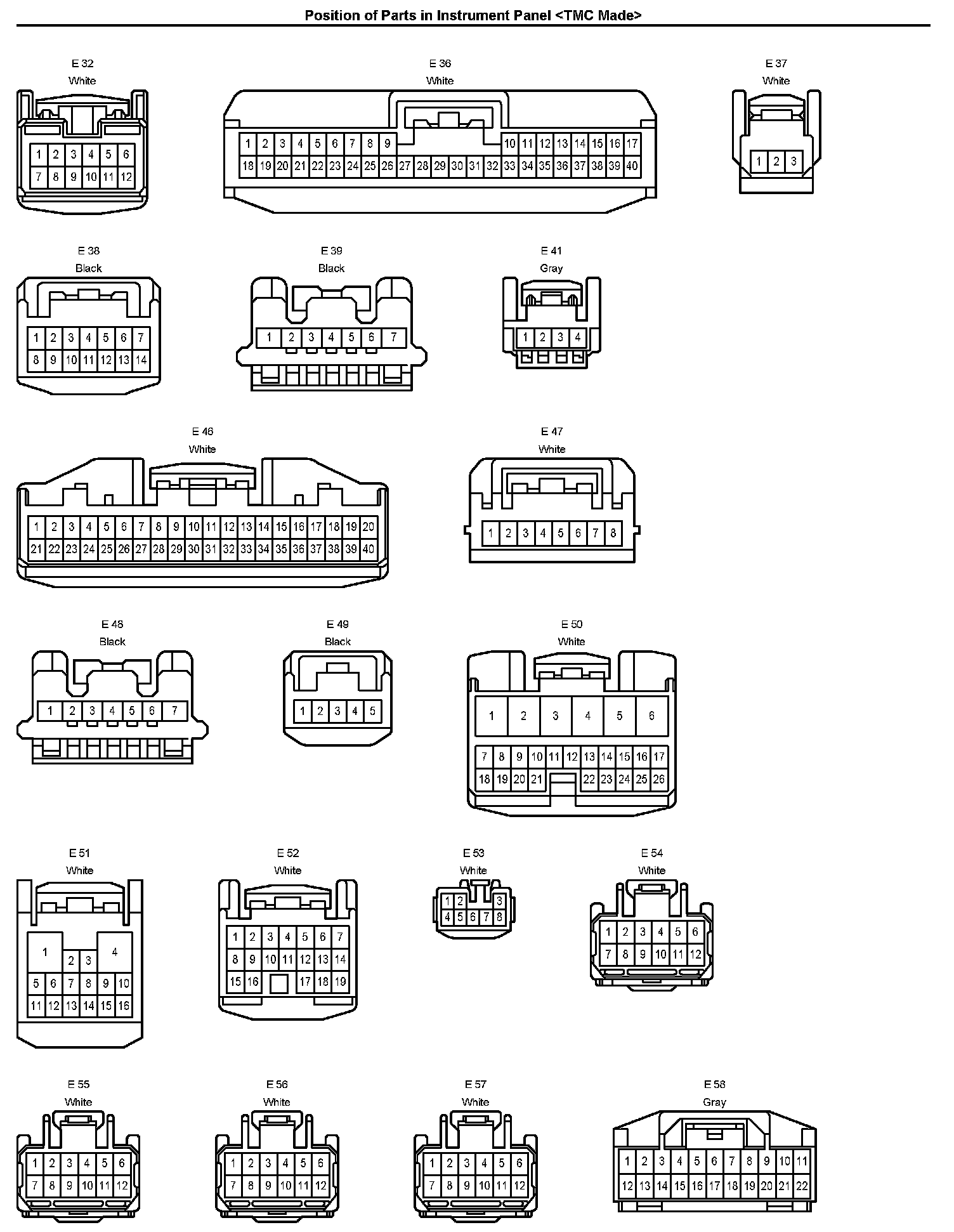

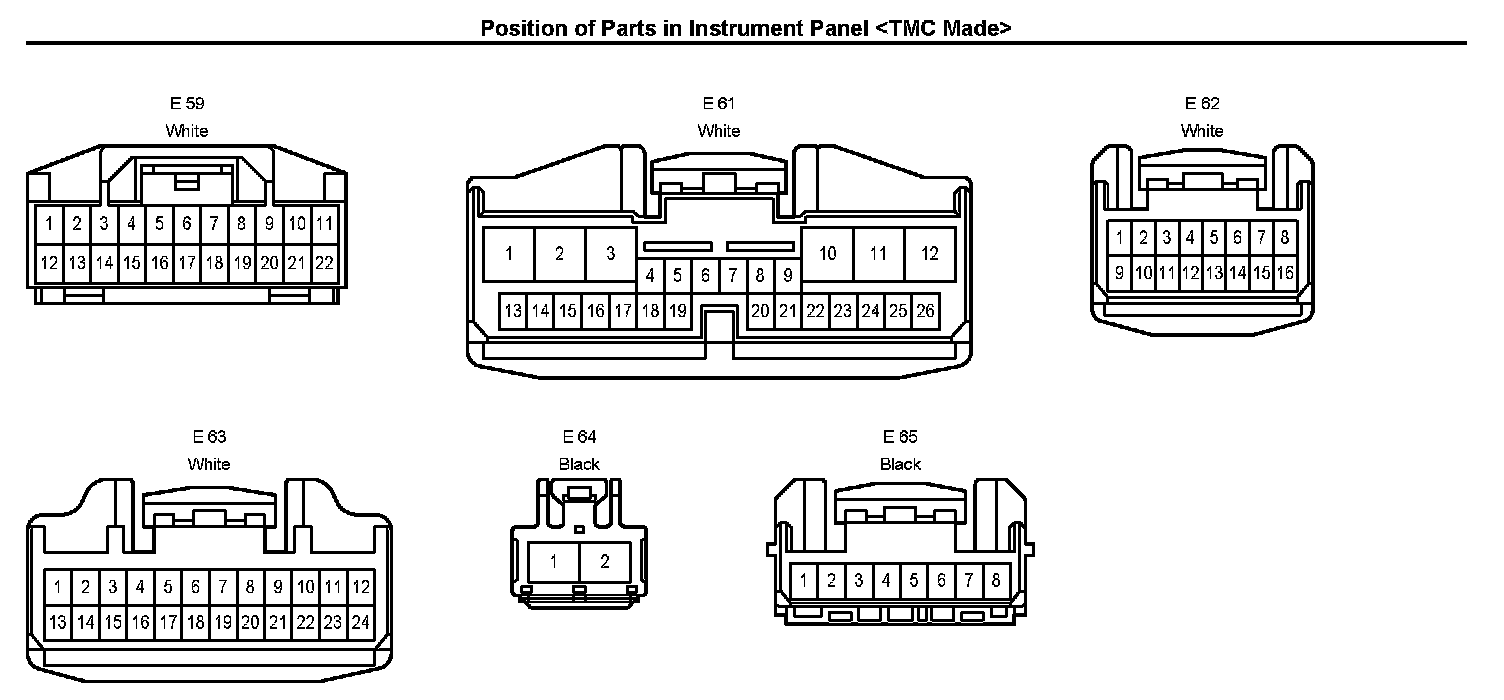

Connector Views:



Connector Views:

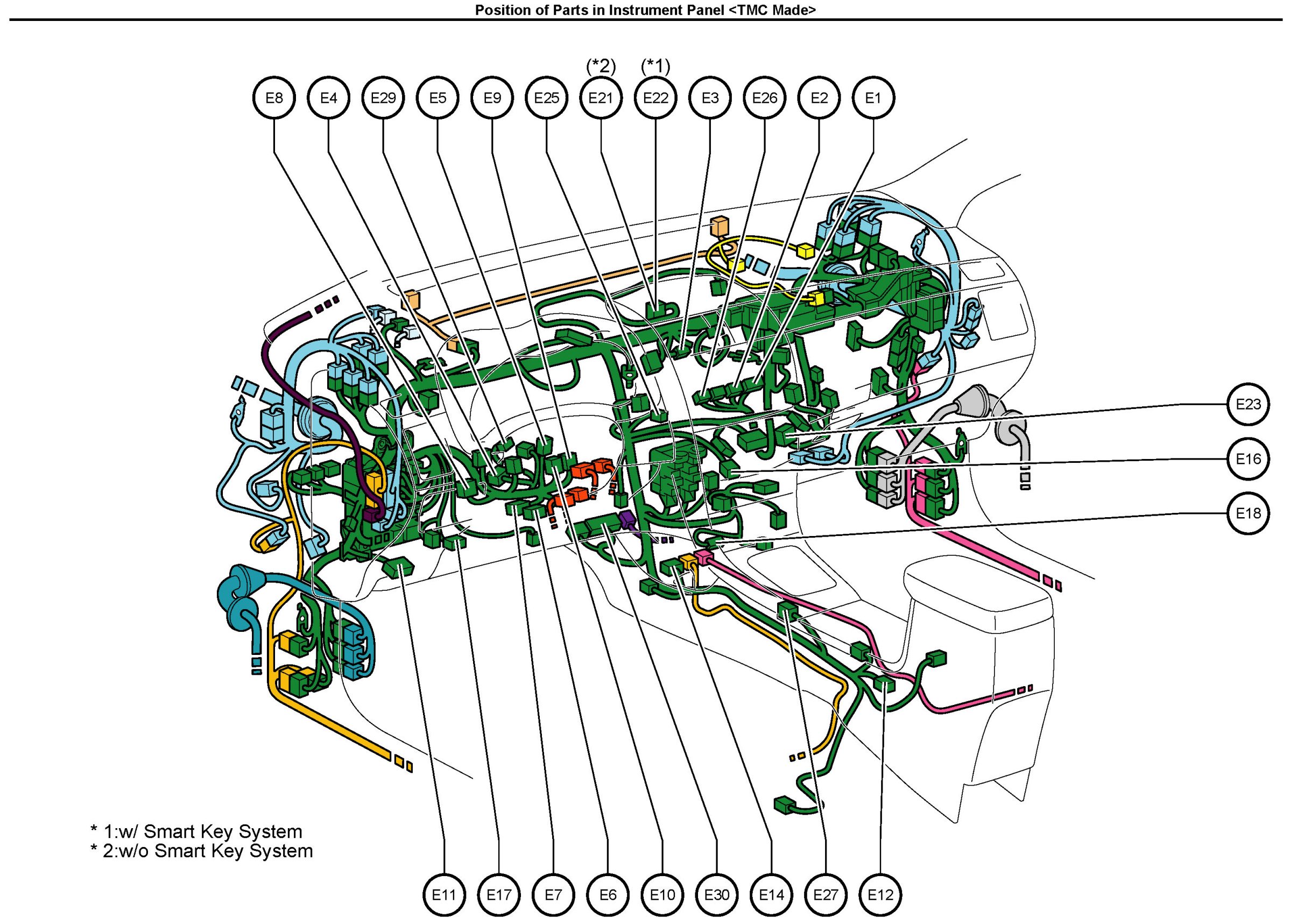

Position Of Parts In Instrument Panel <TMC Made>:



Legend:

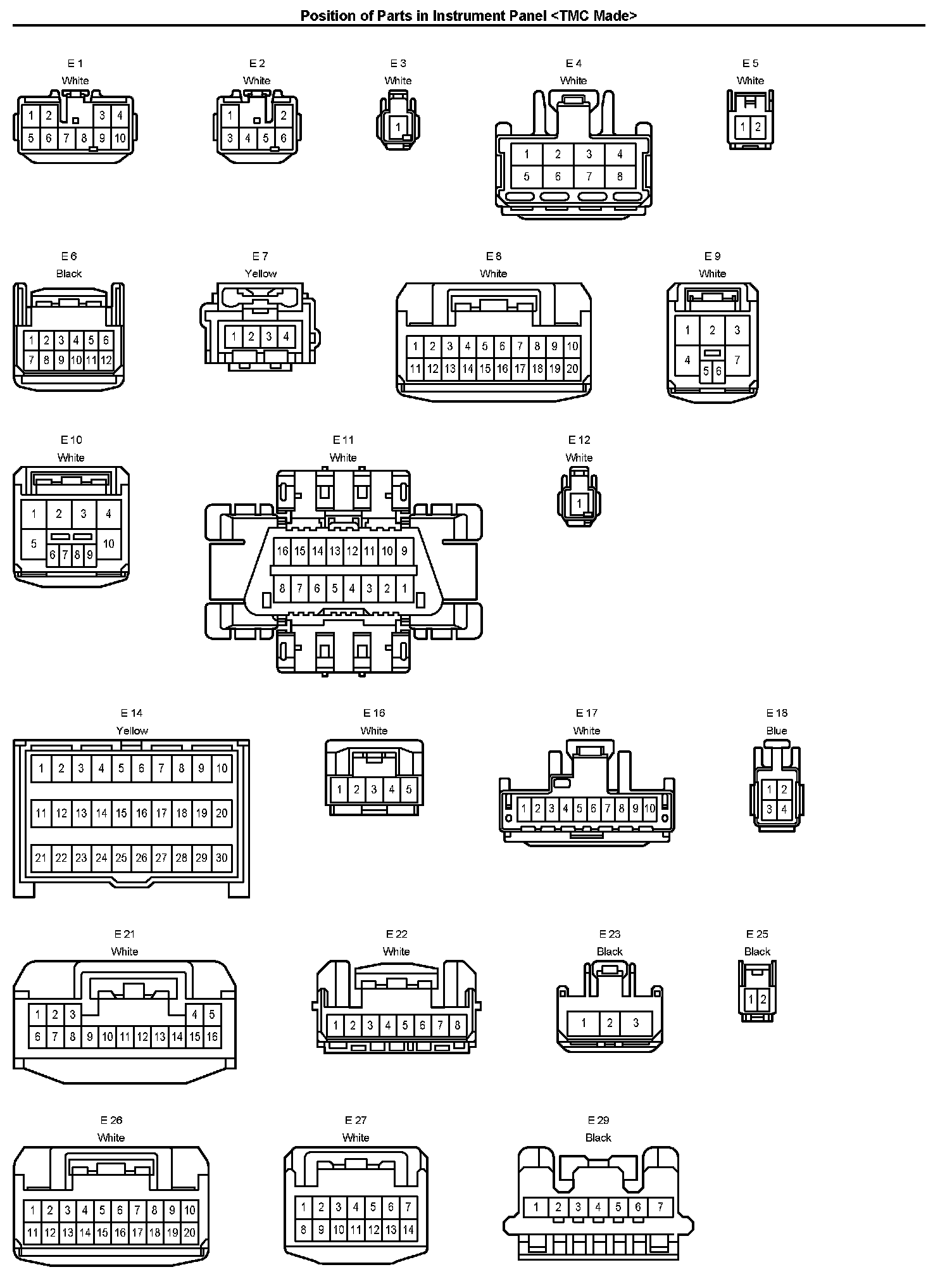

Connector Views:



Position Of Parts In Instrument Panel <TMC Made>:



Legend:

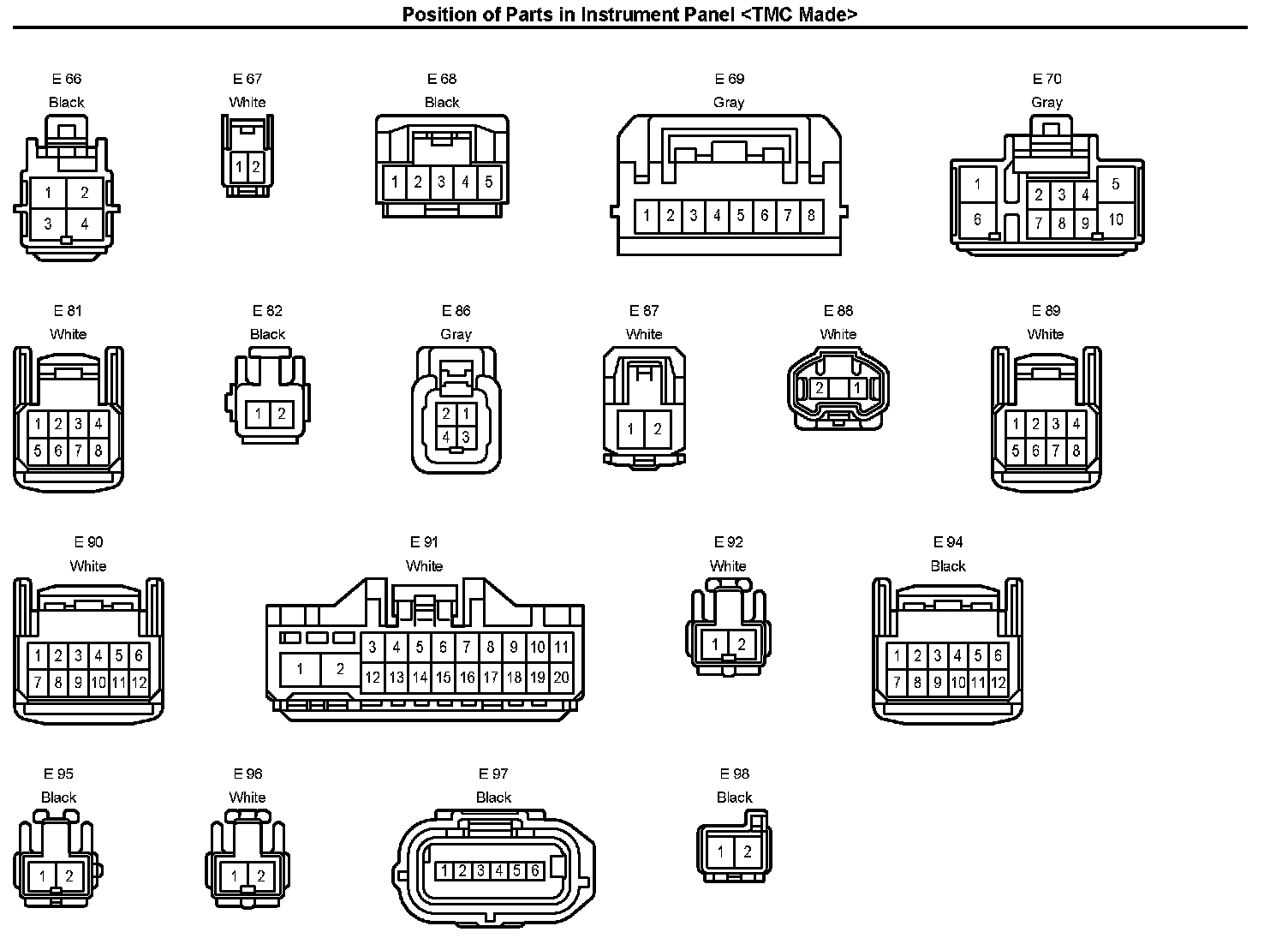

Connector Views:
