Engine Immobiliser System (w/o Smart Key System)








THEFT DETERRENT / KEYLESS ENTRY: ENGINE IMMOBILISER SYSTEM (w/o Smart Key System): PARTS LOCATION

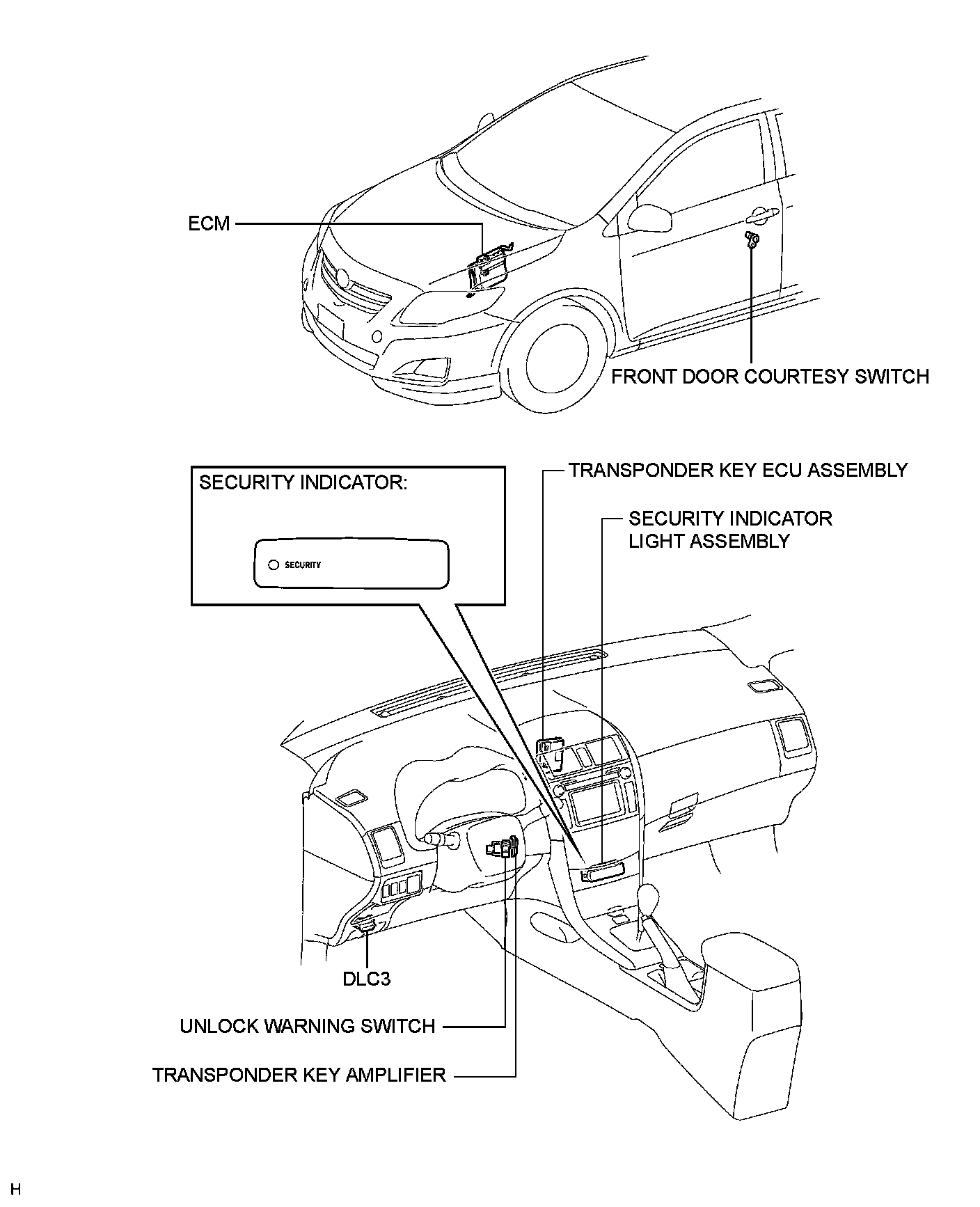

PARTS LOCATION

ILLUSTRATION
