One-Way Clutch

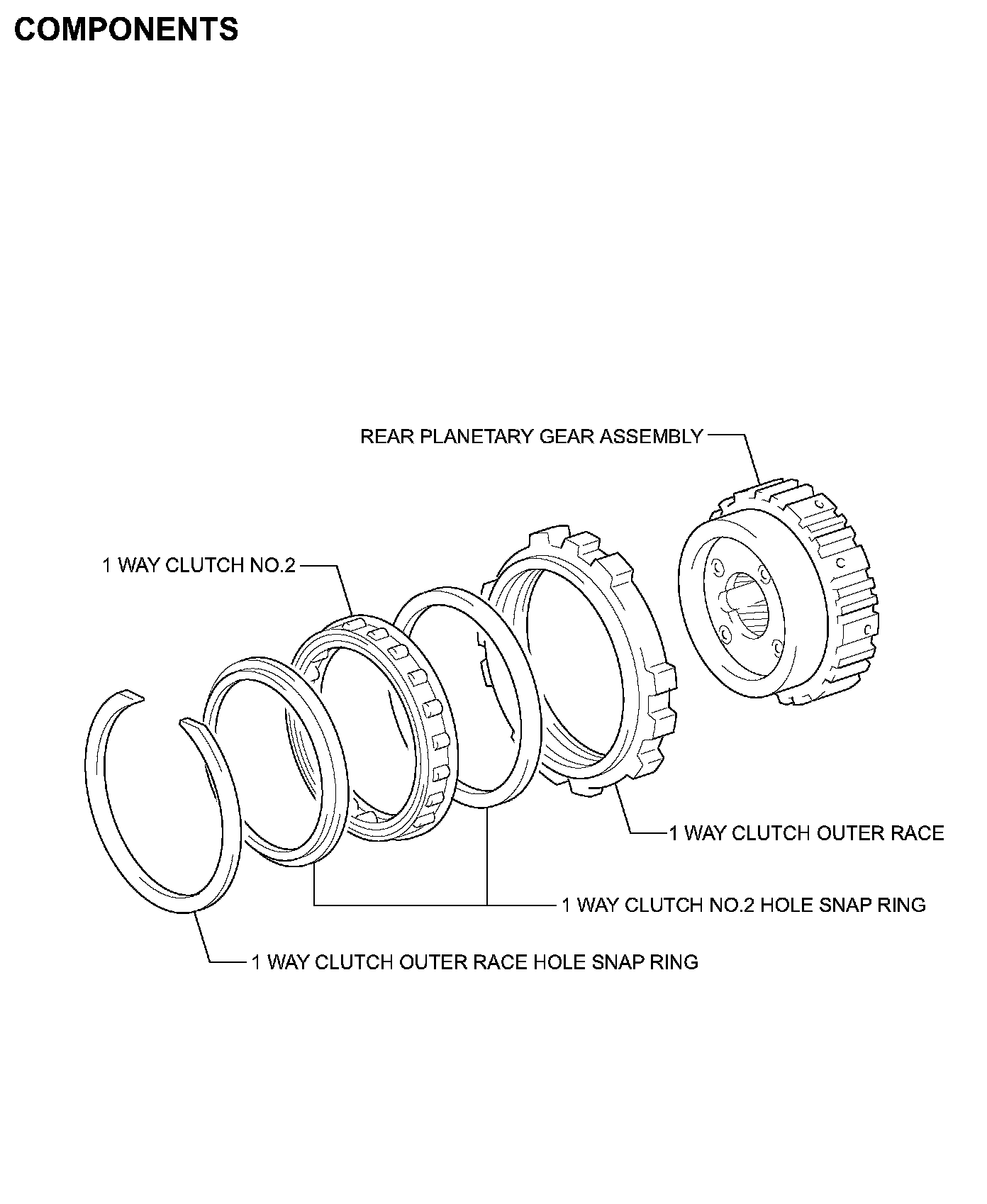

ONE-WAY CLUTCHCOMPONENTS:
DISASSEMBLY
1. INSPECT 1 WAY CLUTCH NO.2
2. DISCONNECT REAR PLANETARY GEAR ASSEMBLY
(a) Disconnect the 1 way clutch No. 2 from the rear planetary gear assembly.
3. REMOVE 1 WAY CLUTCH OUTER RACE HOLE SNAP RING

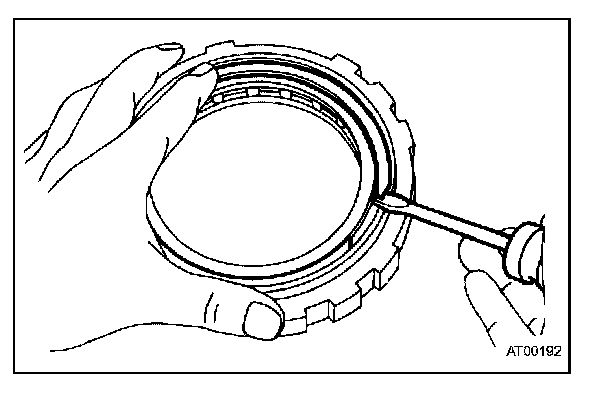

(a) Using a screwdriver, remove the 1 way clutch outer race snap ring and retainers from the 1 way clutch outer race.
4. REMOVE 1 WAY CLUTCH NO.2 HOLE SNAP RING

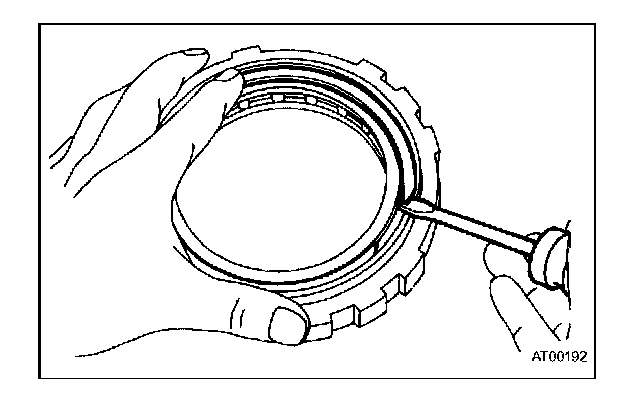

(a) Using a screwdriver, remove the 2 1 way clutch No. 2 hole snap rings and retainers from the 1 way clutch outer race.
5. REMOVE 1 WAY CLUTCH NO.2

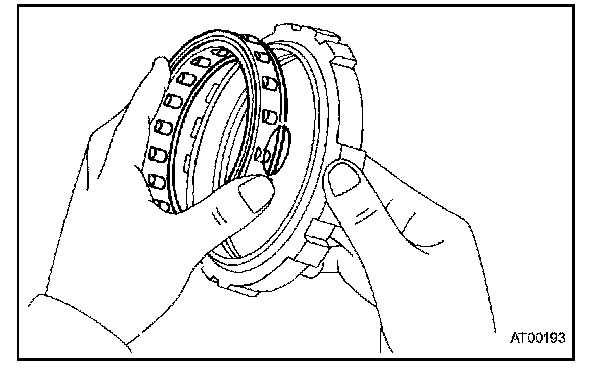

(a) Remove the 1 way clutch No. 2 from the 1 way clutch outer race.
INSPECTION
1. INSPECT 1 WAY CLUTCH NO.2

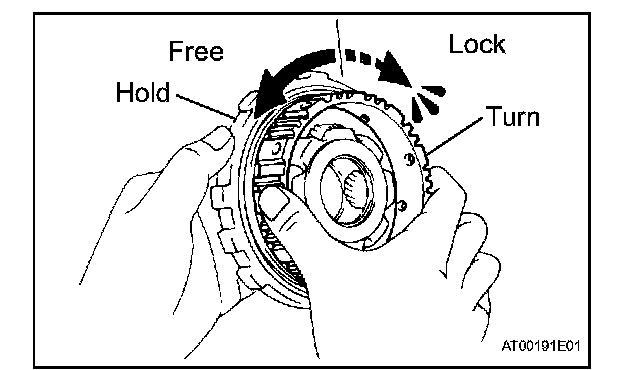

(a) Hold the outer race and turn the hub. The hub should turn freely counterclockwise and should lock if turned clockwise.
REASSEMBLY
1. INSTALL 1 WAY CLUTCH NO.2

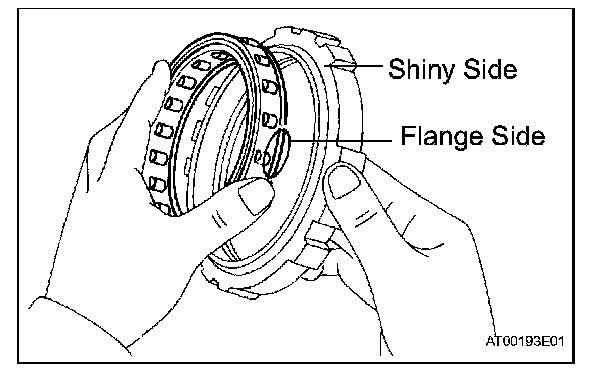

(a) Install the 1 way clutch No. 2 into the 1 way clutch outer race, facing the flange side of the 1 way clutch No. 2 toward the shiny side of the 1 way clutch outer race.
2. INSTALL 1 WAY CLUTCH NO.2 HOLE SNAP RING
(a) Using a screwdriver, install the 2 1 way clutch No. 2 hole snap rings to the 1 way clutch outer race.
3. INSTALL 1 WAY CLUTCH OUTER RACE HOLE SNAP RING
(a) Using a screwdriver, install the 1 way clutch No. 2 hole snap ring to the 1 way clutch outer race.
4. INSTALL REAR PLANETARY GEAR ASSEMBLY

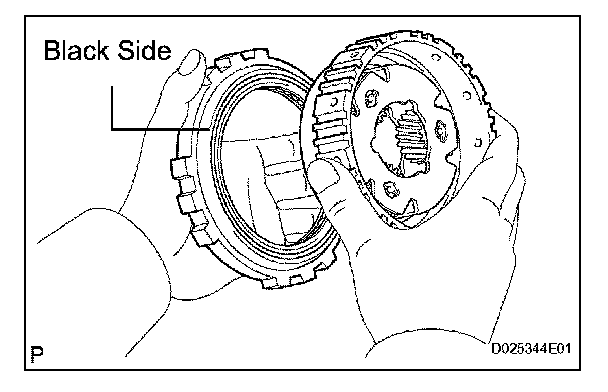

(a) Install the rear planetary gear assembly in to the 1 way clutch No. 2, facing the inner race of the planetary gear toward the back side of the 1 way clutch outer race.
5. INSPECT 1 WAY CLUTCH NO.2
