ABS System Malfunction

ABS System Malfunction

DESCRIPTION
The skid control ECU outputs DTCs when a speed sensor malfunction occurs or there is an open in the stop light switch assembly circuit of the ABS system.

If the ABS system has a malfunction, the tire pressure warning system will not function.

INSPECTION PROCEDURE

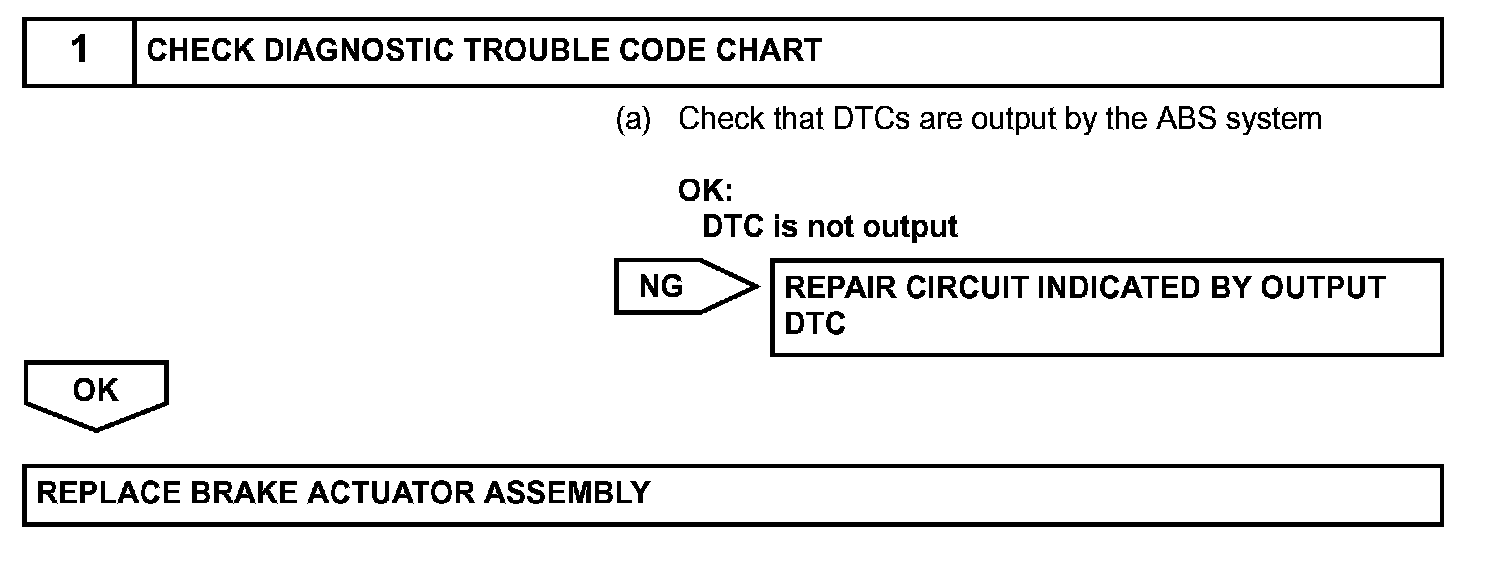

Step 1:
