Component Tests and General Diagnostics

INSPECTION
1. INSPECT TIRE
(a) Check the tires for wear and proper inflation pressure.

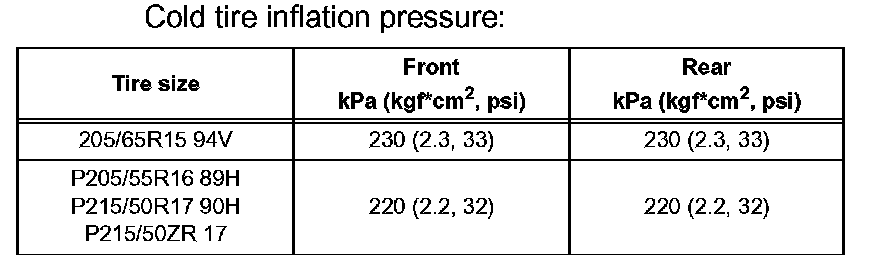

Cold tire inflation pressure:

(b) Using a dial gauge, check the tire runout.
Tire runout: 1.4 mm (0.055 in.) or less





2. ROTATE TIRE
(a) Rotate tires as show in the illustration.





3. INSPECT WHEEL BALANCE
(a) Check and adjust the off-the-car balance.
(b) If necessary, check and adjust the on-the-car balance.
Imbalance after adjustment: 8.0 g (0.018 lb) or less

4. INSPECT BEARING BACKLASH
5. INSPECT AXLE HUB DEVIATION
