Tail Lamp: Service and Repair

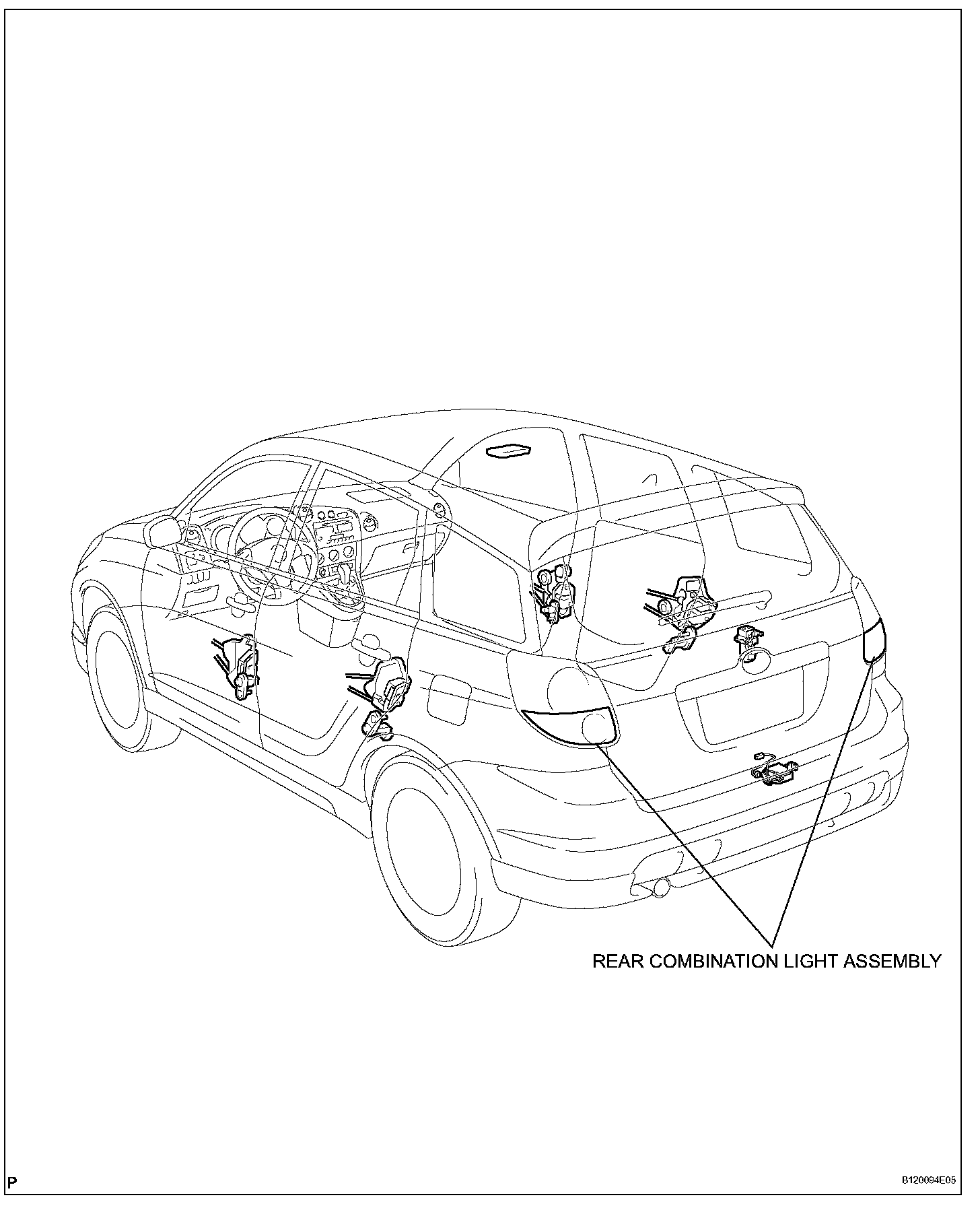

Rear Combination Light Assembly

REMOVAL

1. REMOVE REAR COMBINATION LIGHT ASSEMBLY
a. Remove the service hole cover LH.

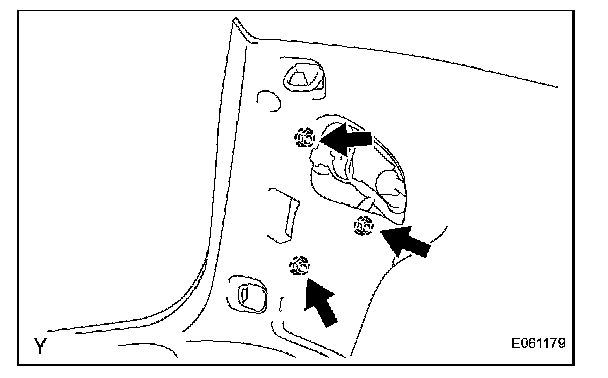

b. Remove the 3 nuts.
c. Disconnect the connectors.

d. Pull out the rear combination light assembly to the back of the vehicle, and remove.

INSTALLATION

1. INSTALL REAR COMBINATION LIGHT ASSEMBLY
