Fog/Driving Lamp: Service and Repair

Fog Light Assembly:

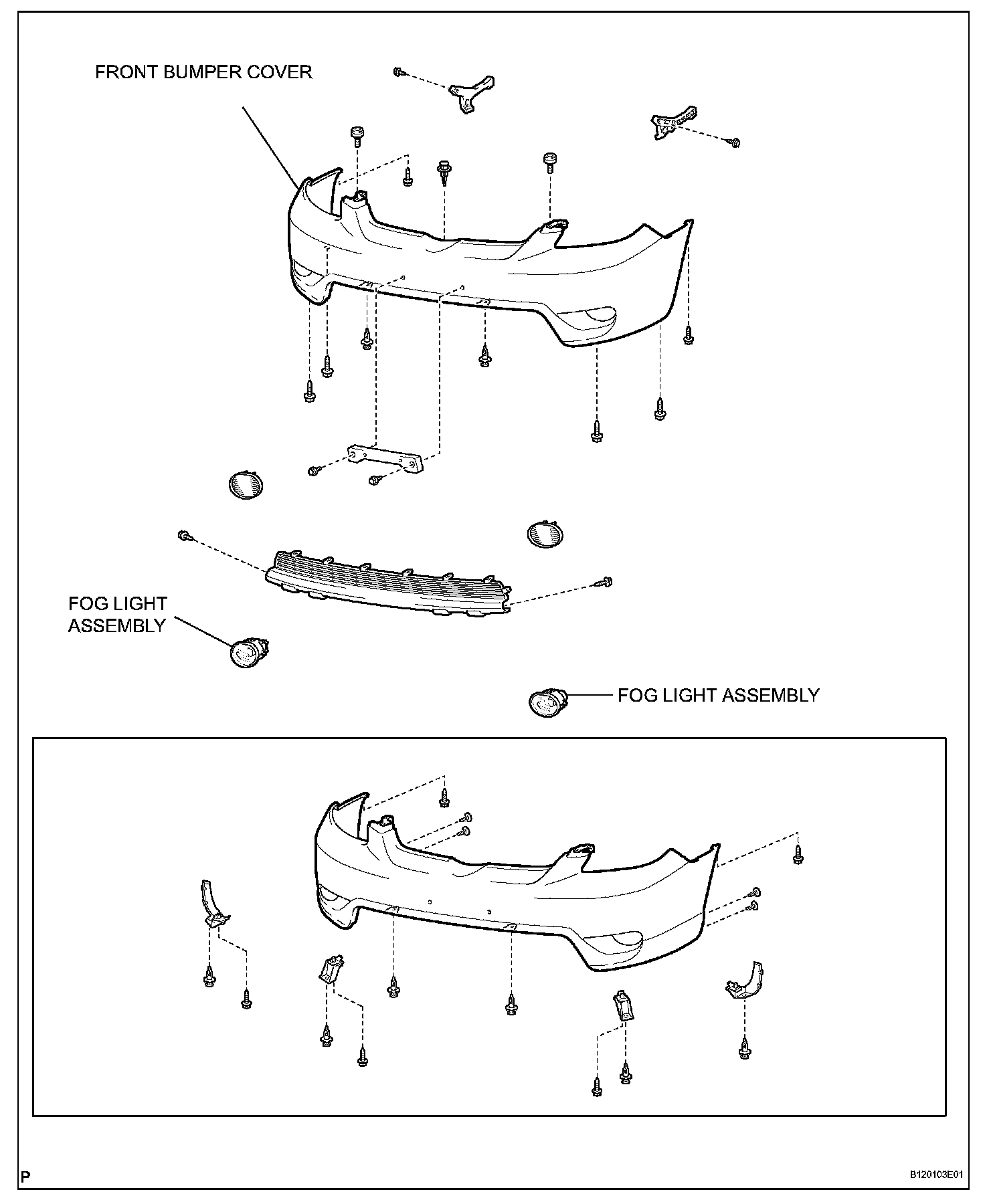

Fog Light Assembly

REMOVAL

1. REMOVE FRONT BUMPER COVER




2. REMOVE FOG LIGHT ASSEMBLY
a. Disconnect the connector.
b. Using a clip remover, release the 2 claws.




c. Press the 2 claws and release the 2 claws, and remove the fog light assembly.

INSTALLATION

1. INSTALL FOG LIGHT ASSEMBLY
2. INSTALL FRONT BUMPER COVER
3. PREPARE VEHICLE FOR FOG LIGHT AIMING ADJUSTMENT
4. PREPARE FOR FOG LIGHT AIMING
5. INSPECT FOG LIGHT AIMING
6. ADJUST FOG LIGHT AIMING
