Operating Light Control Rheostat Does Not Change Light Brightness

Operating Light Control Rheostat does not Change Light Brightness

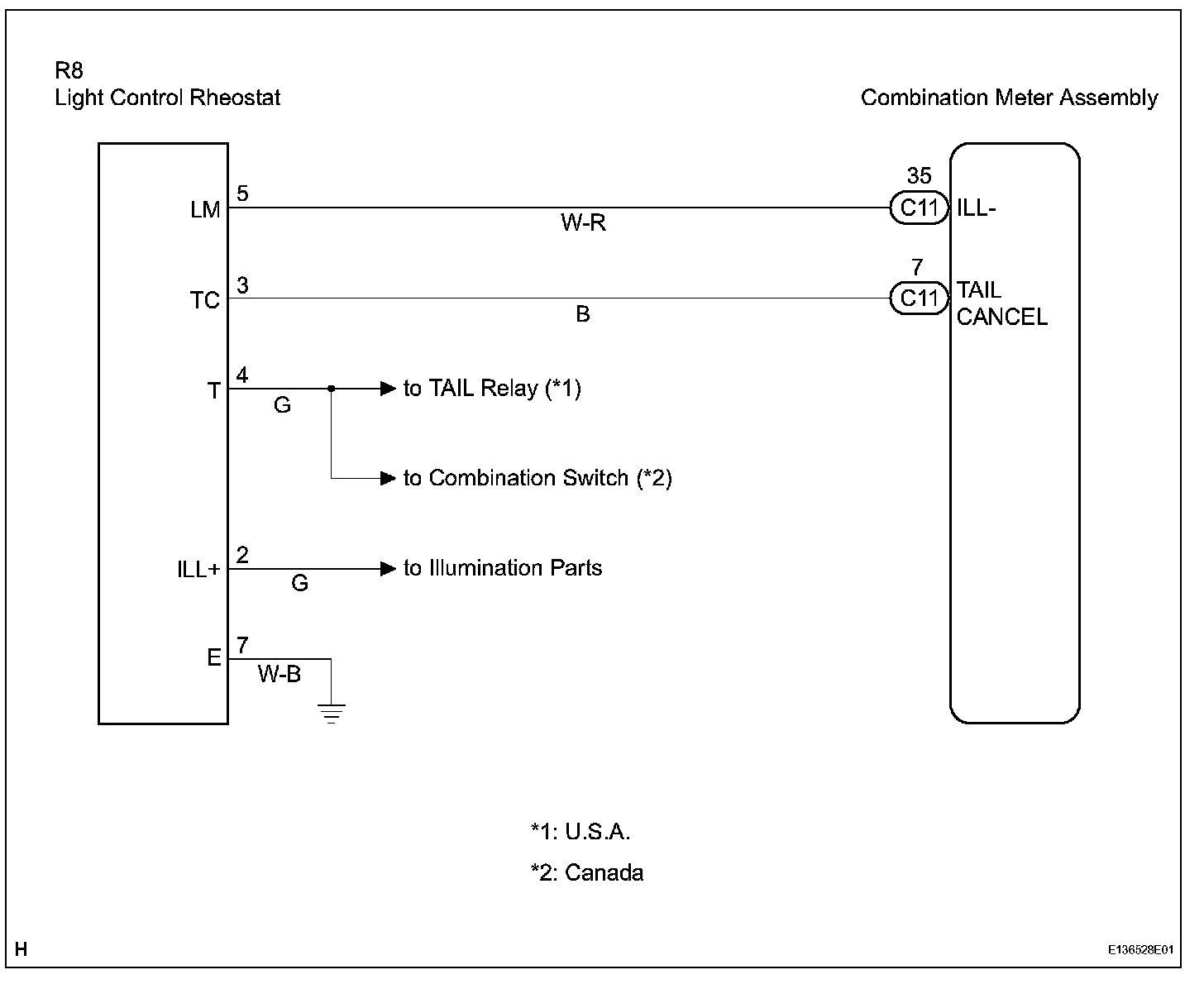

Wiring Diagram:

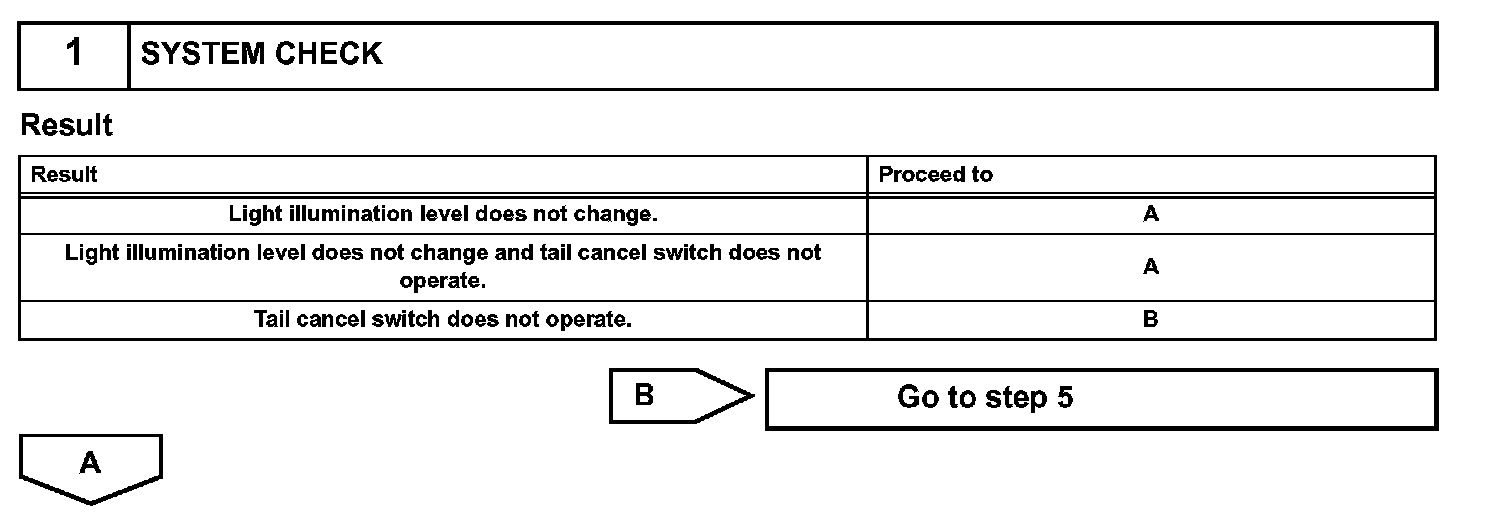

Step 1:




Step 2-3:




Step 3(continued)-4:

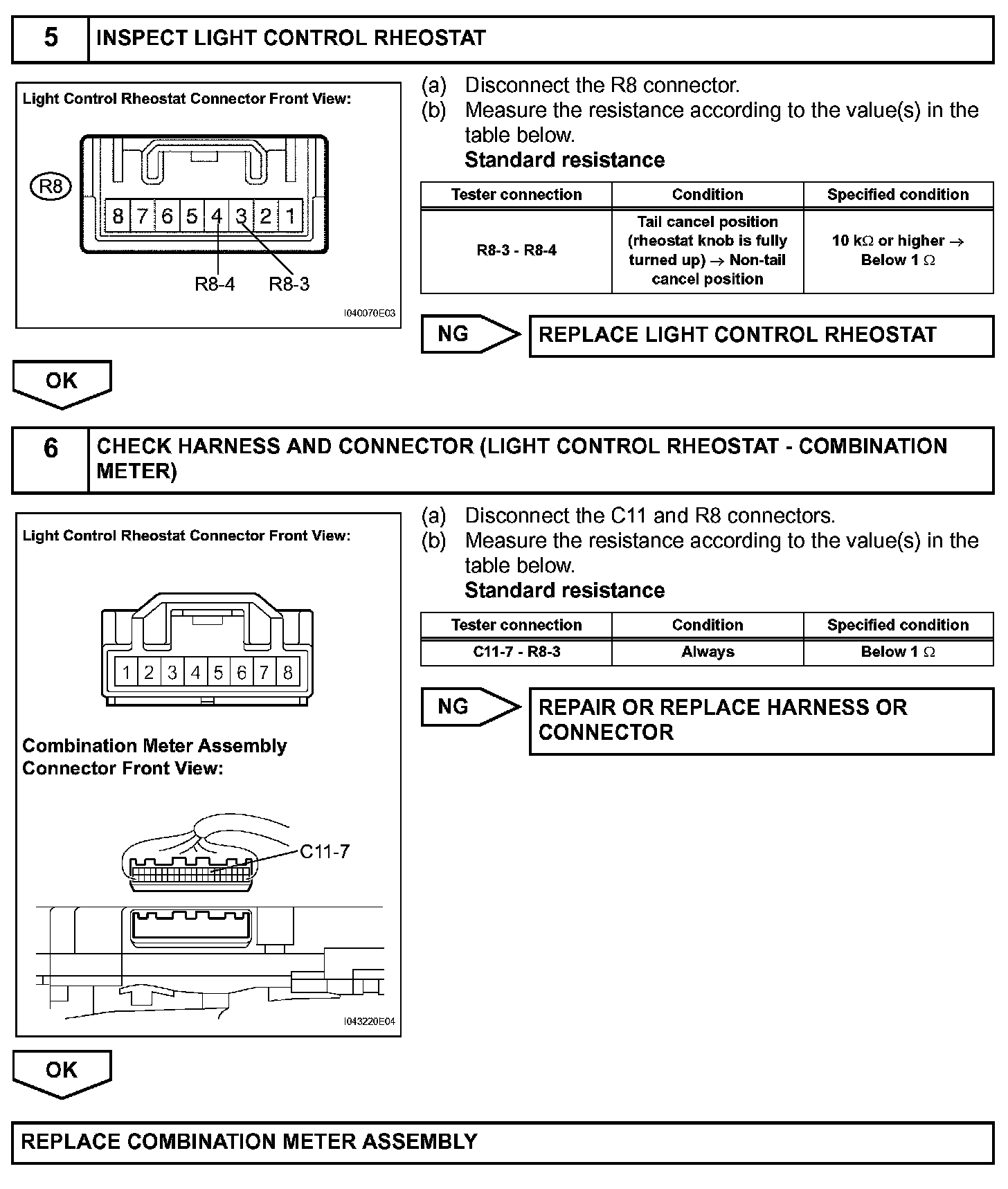

Step 5-6:




INSPECTION PROCEDURE
