Front Passenger Side Seat Belt Warning Light Malfunction

Front Passenger Side Seat Belt Warning Light Malfunction

Wiring Diagram:






Step 1:




Step 2-3:




Step 4-6:




Step 6(continued)-7:

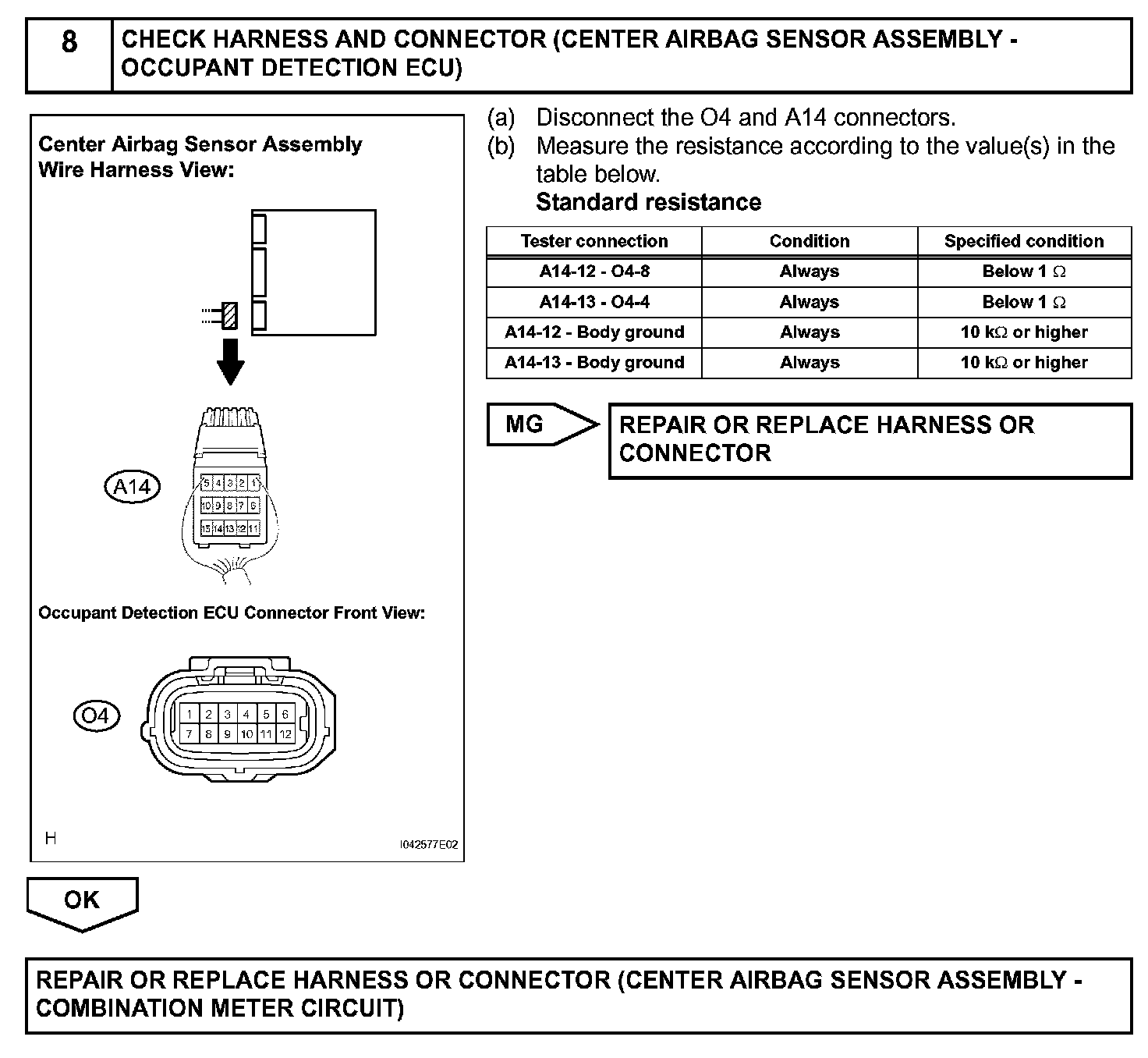

Step 8:

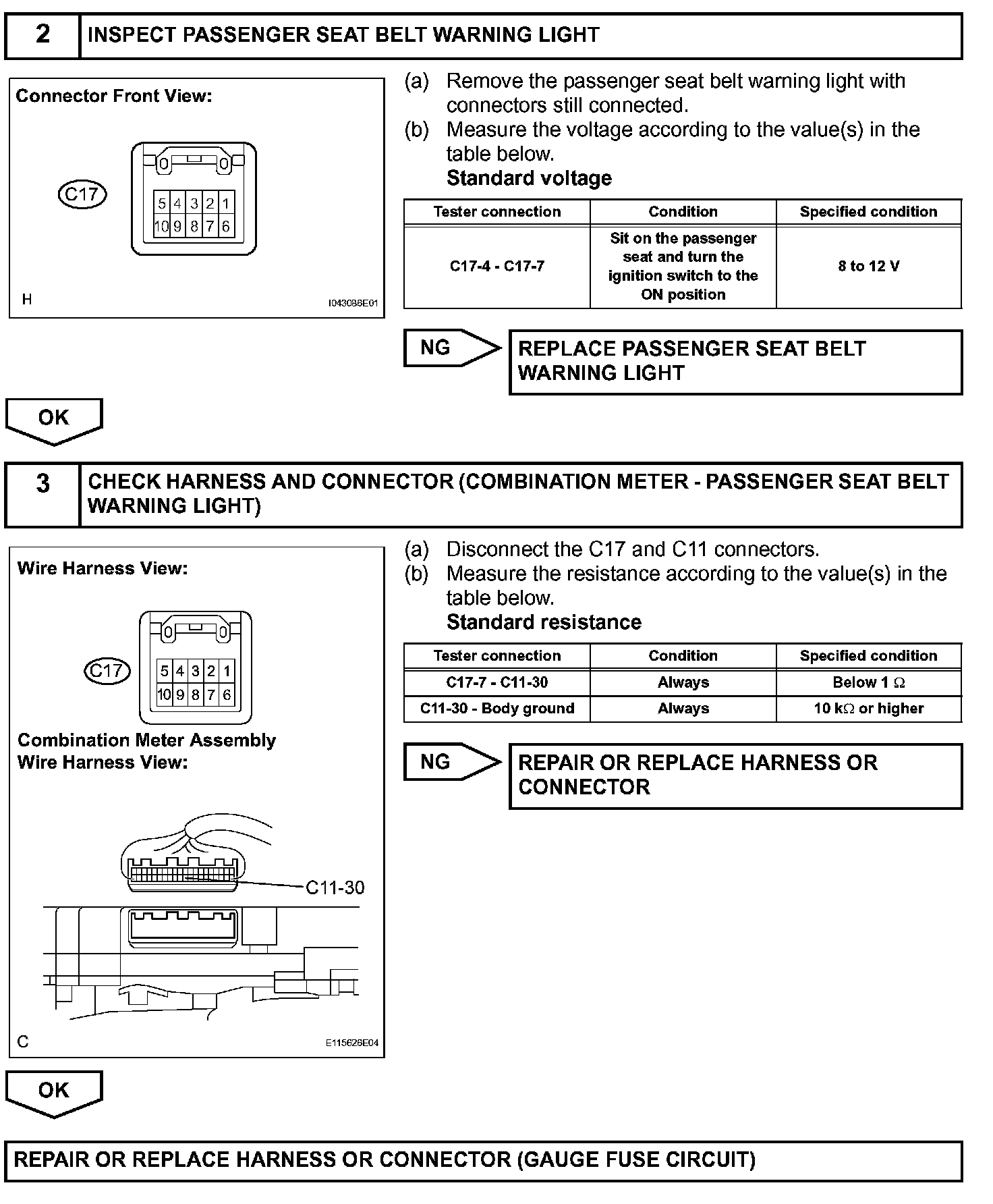

INSPECTION PROCEDURE
