Slip Indicator Light Circuit

Slip Indicator Light Circuit

DESCRIPTION
- The SLIP indicator blinks during TRAC and VSC operation.
- The SLIP indicator comes on when the traction control is terminated by pressing the TRAC OFF switch.

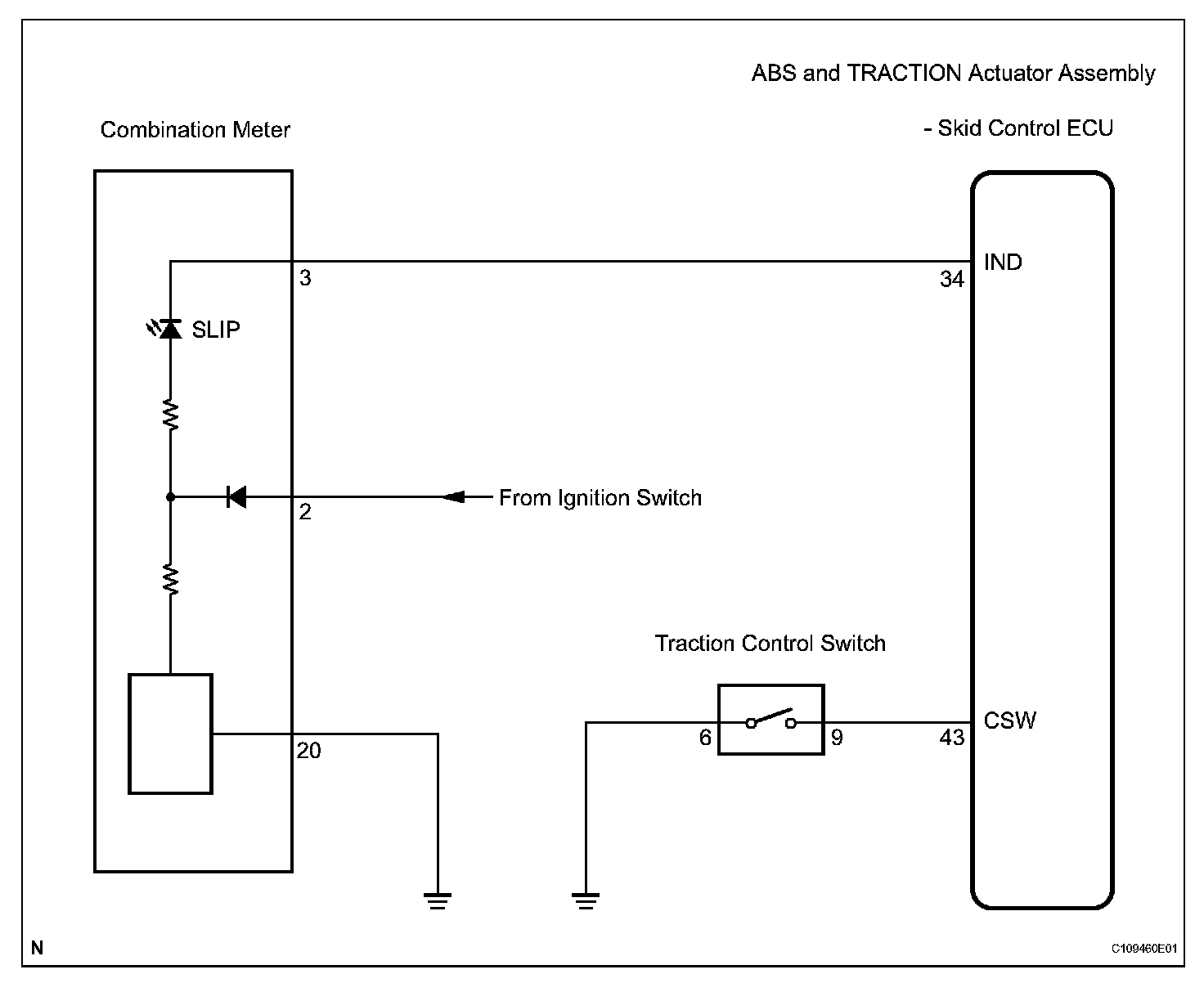

Wiring Diagram:

Step 1:

Step 1(continued)-2:

Step 3-4:

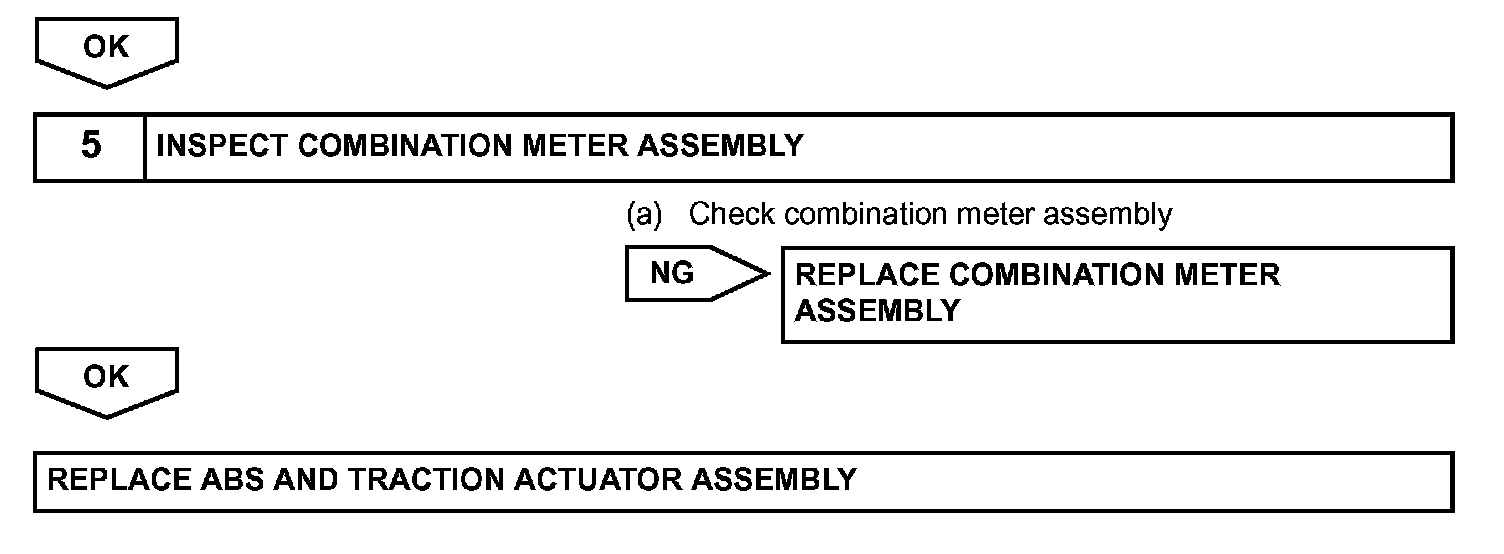

Step 4(continued)-5:

INSPECTION PROCEDURE

NOTE: When replacing the ABS and TRACTION actuator assembly, perform zero point calibration. Calibration
