Radio Broadcast Cannot Be Received or Poor Reception

Radio Broadcast cannot be Received or Poor Reception

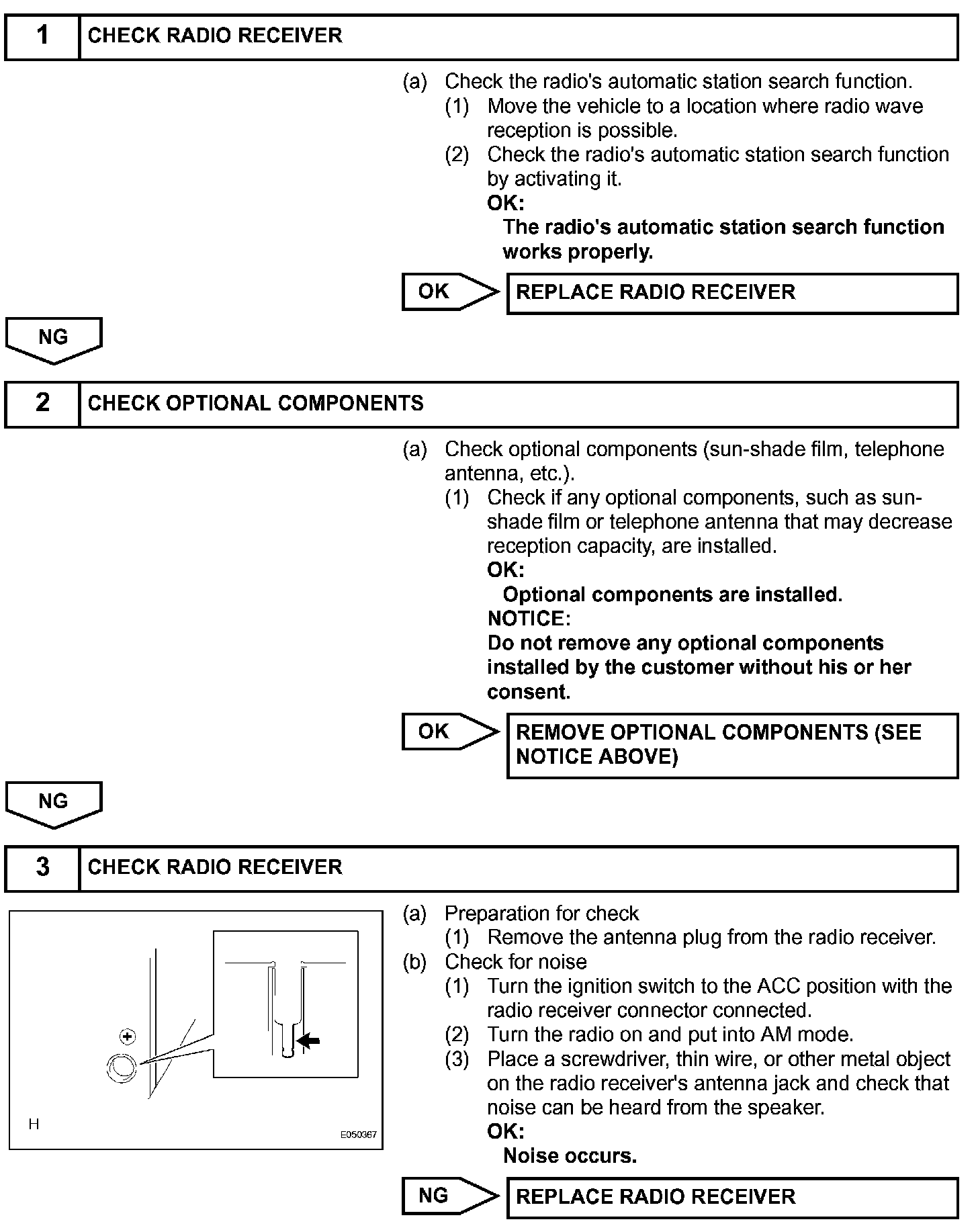

Step 1-3:

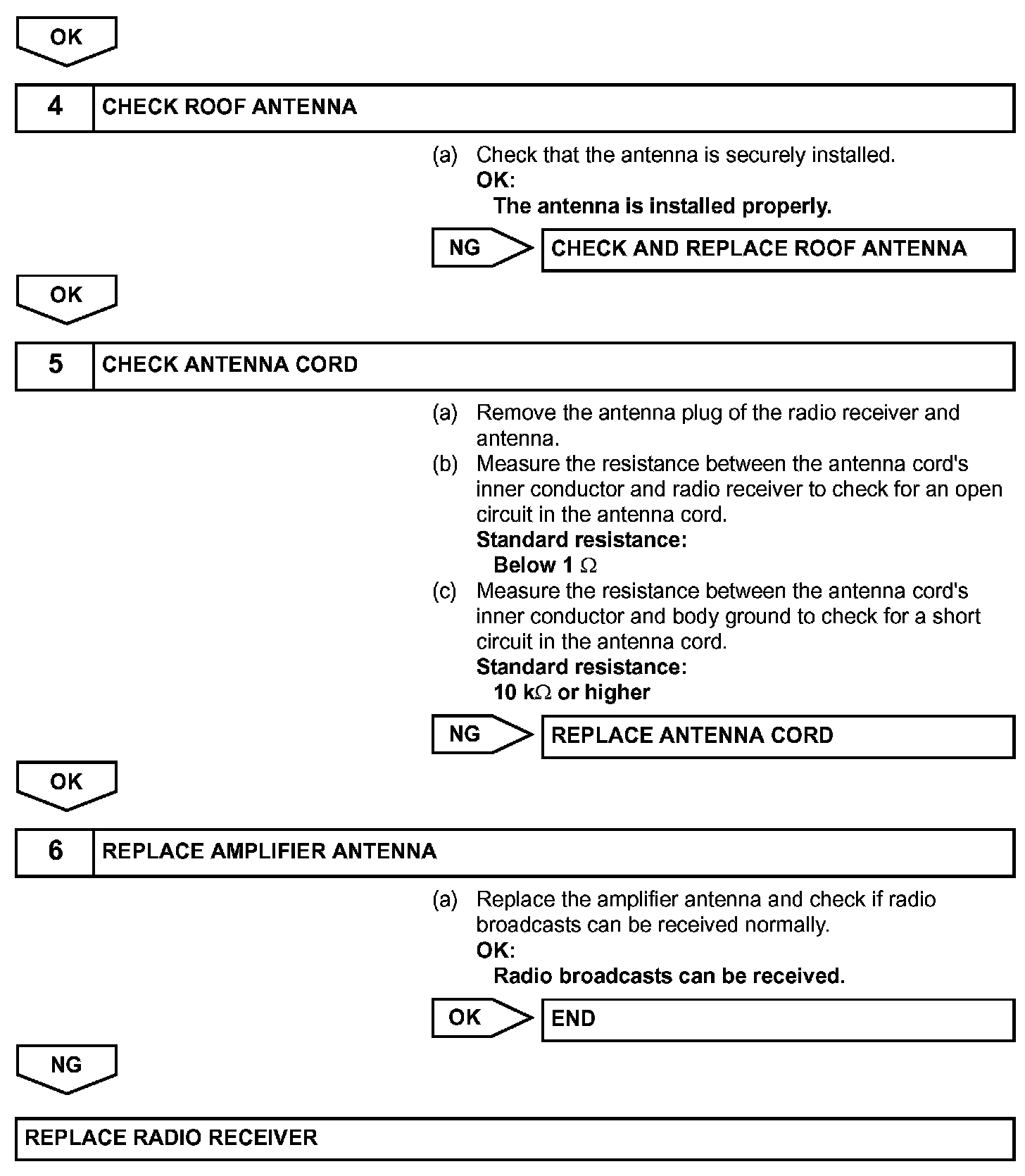

Step 3(continued)-6:




INSPECTION PROCEDURE
