Radio Receiver Communication Error

Radio Receiver Communication Error

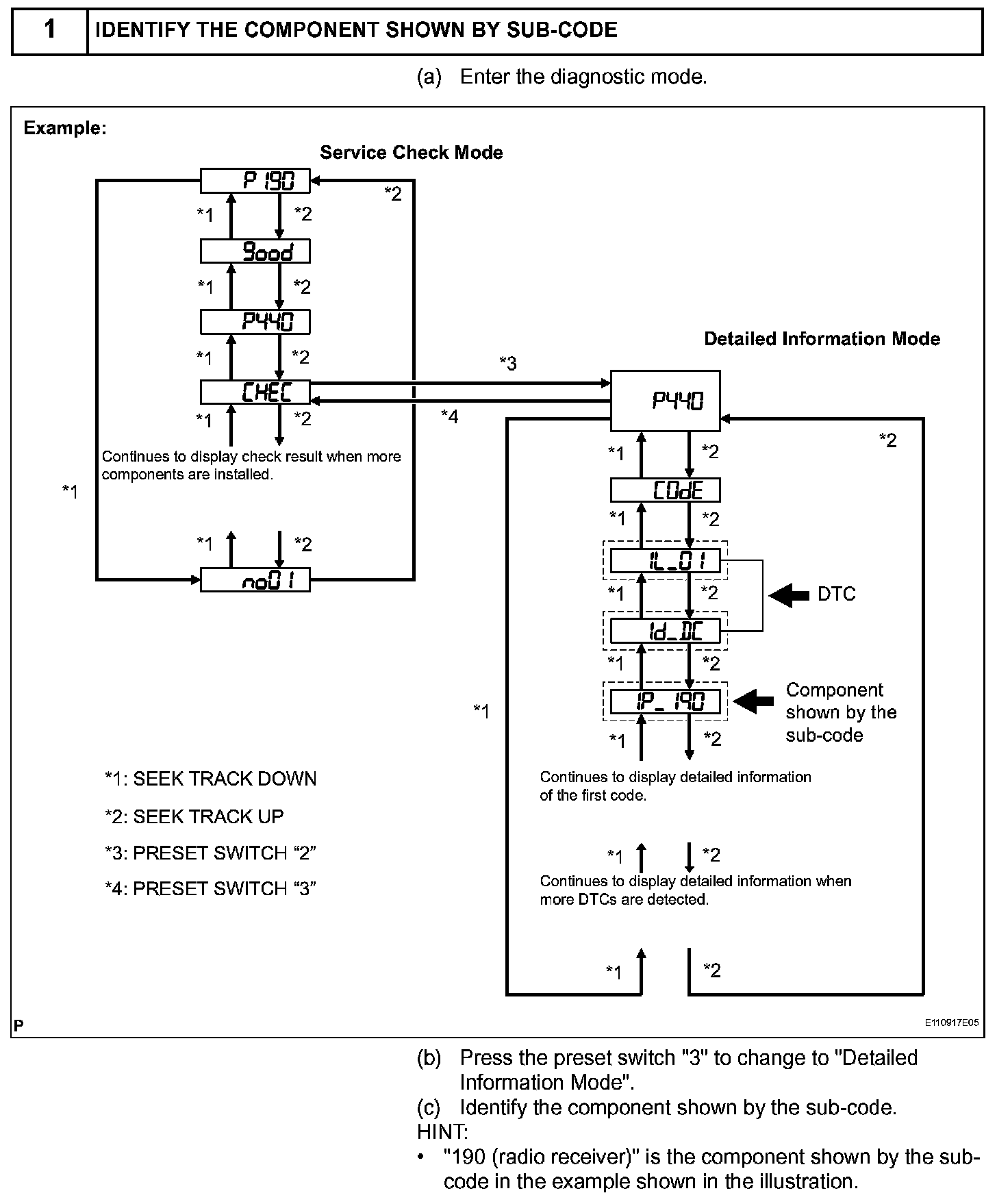

Step 1:




Step 1(continued)-4:

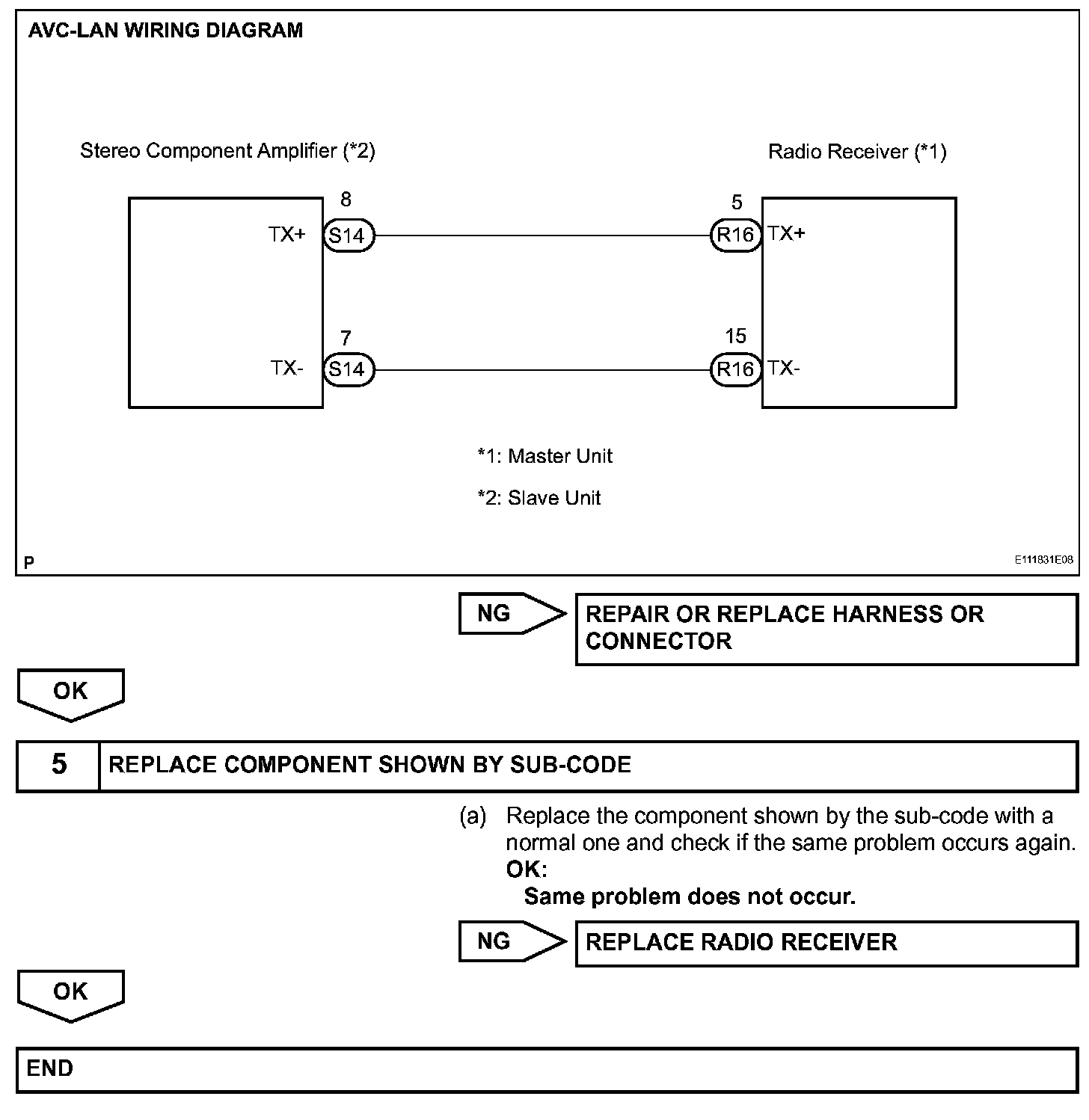

Step 4(continued)-5:




INSPECTION PROCEDURE
