Ignition Switch Circuit
Ignition Switch CircuitDESCRIPTION
If the ignition switch is turned ON, battery positive voltage is applied to the switches, such as terminal IG of the ECU.
Wiring Diagram:
Step 1-2:

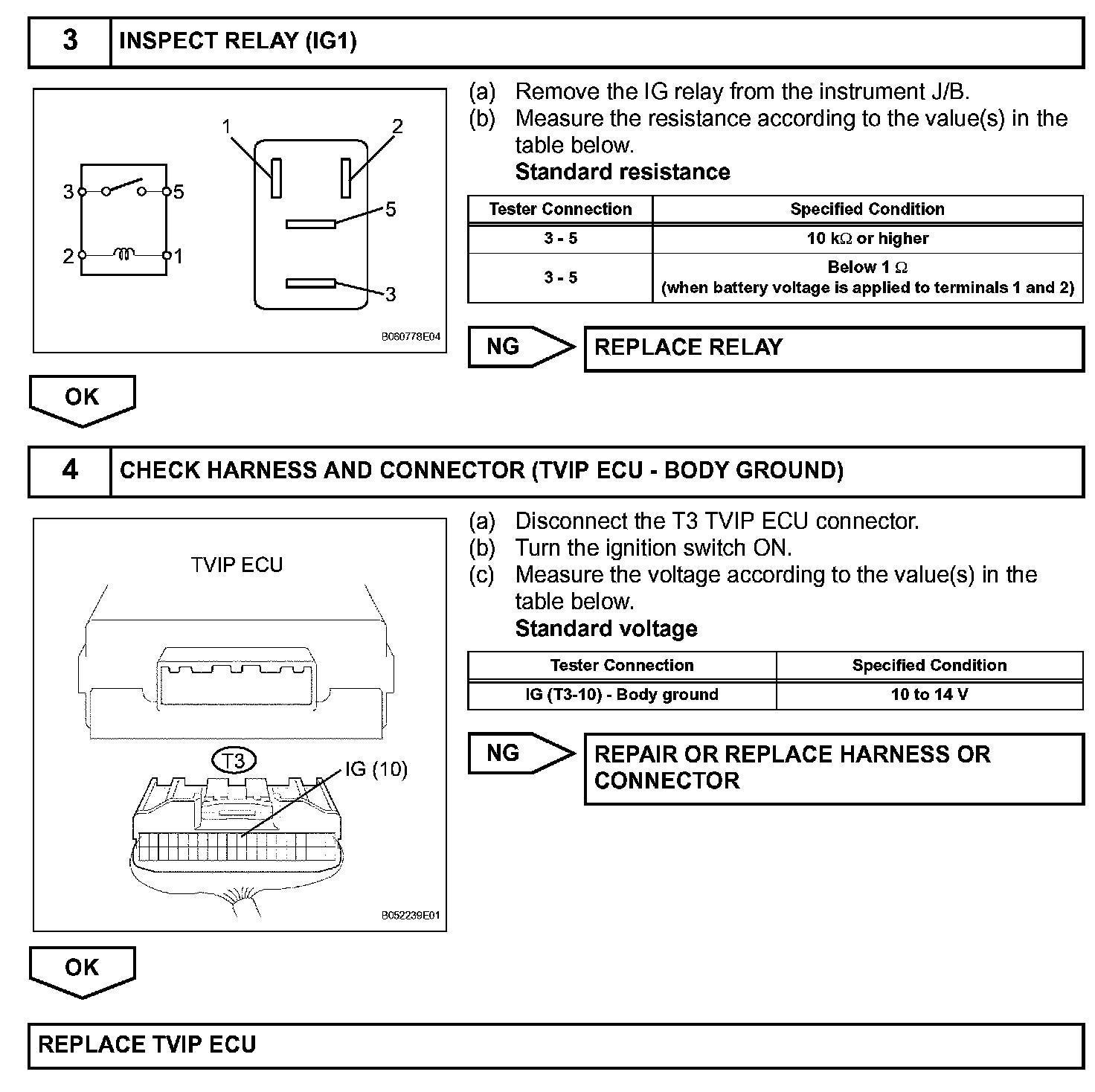

Step 3-4:
INSPECTION PROCEDURE
DESCRIPTION
If the ignition switch is turned ON, battery positive voltage is applied to the switches, such as terminal IG of the ECU.
INSPECTION PROCEDURE
