Seats: Diagrams

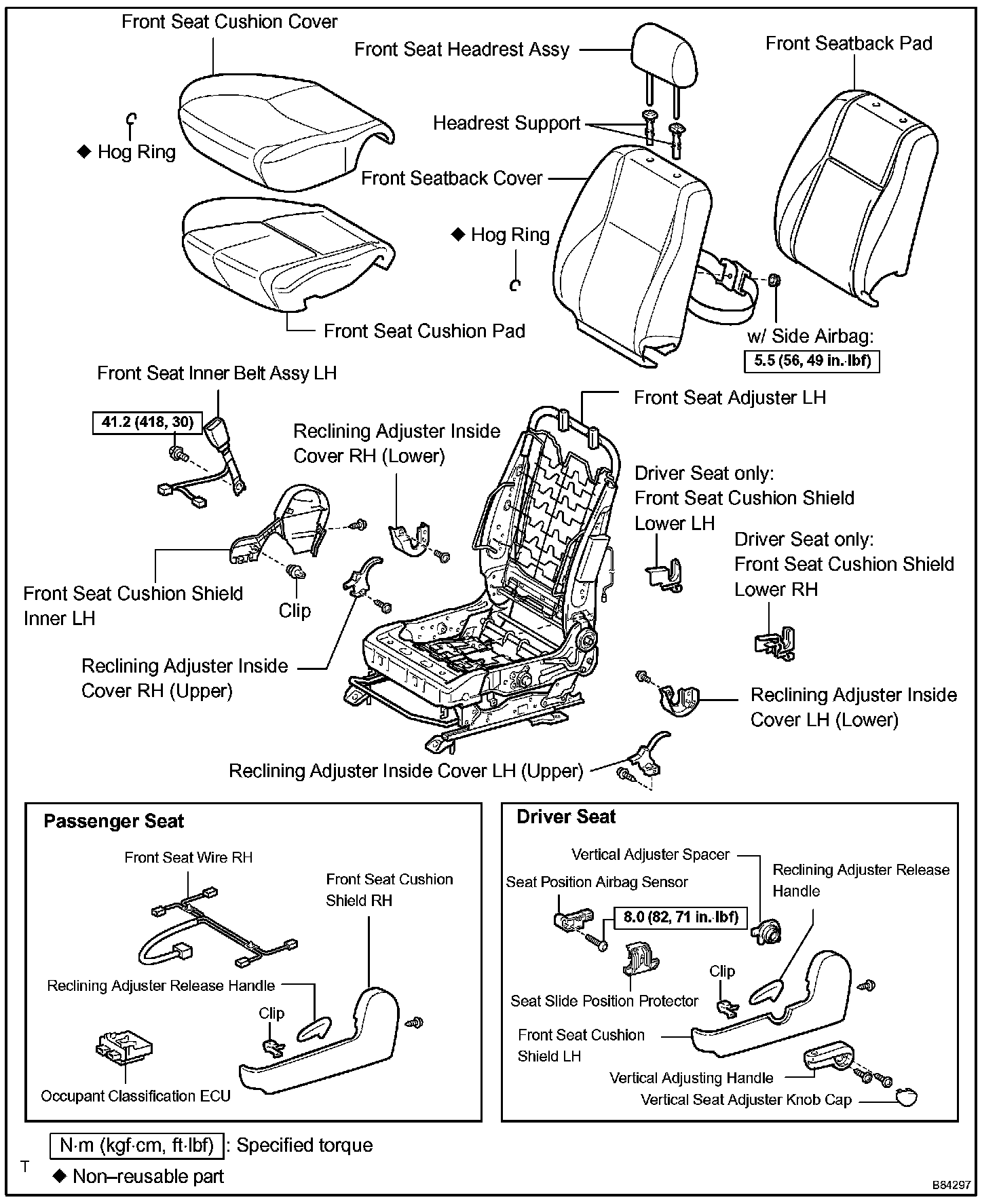

Front Seat:

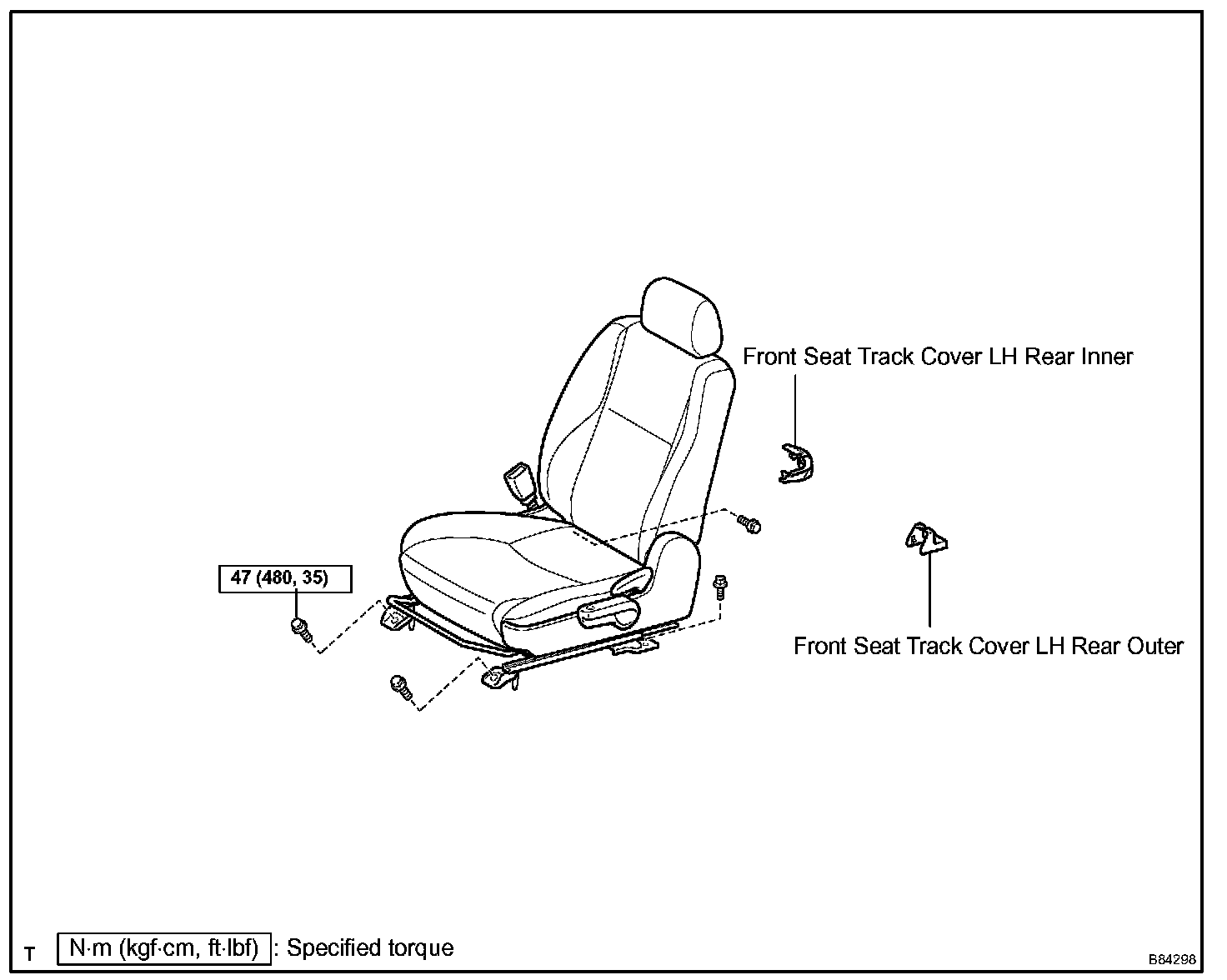

Front Seat:

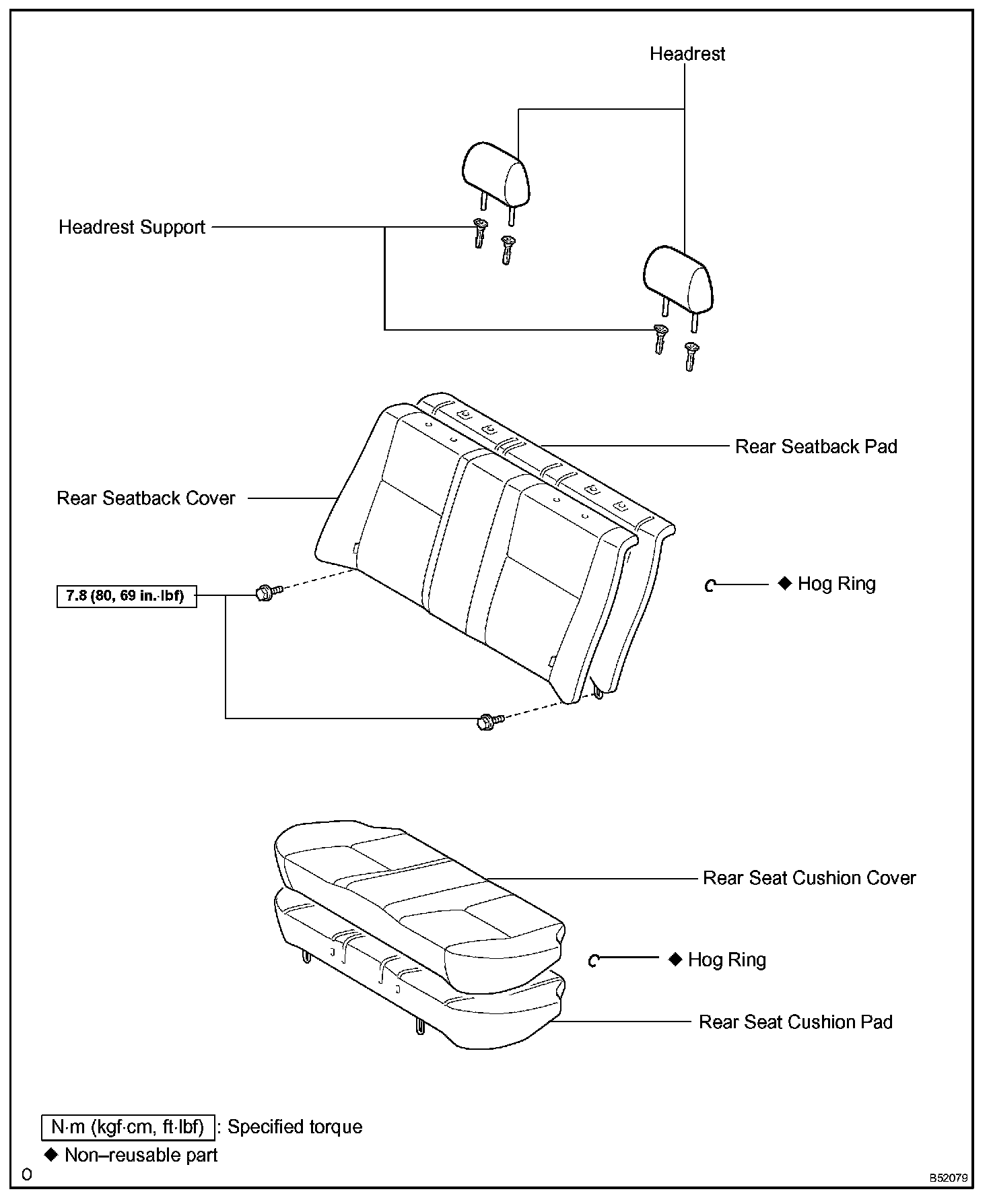

Rear Seat (Sedan With Separate Type):

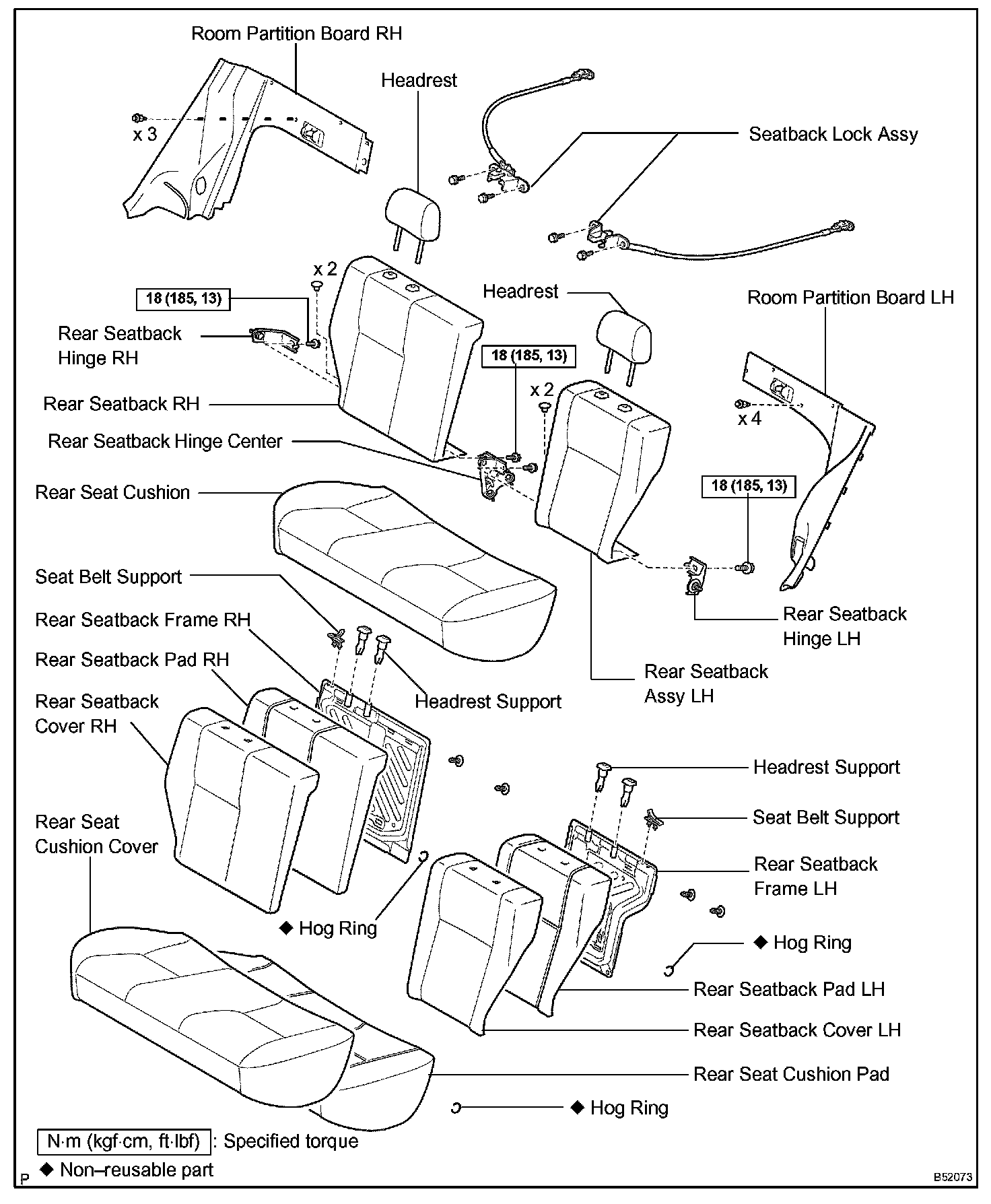

Rear Seat (Sedan With Bench Type):
