Home >> Toyota >> 2005 >> Camry V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Diagrams >> Connectors

Connectors

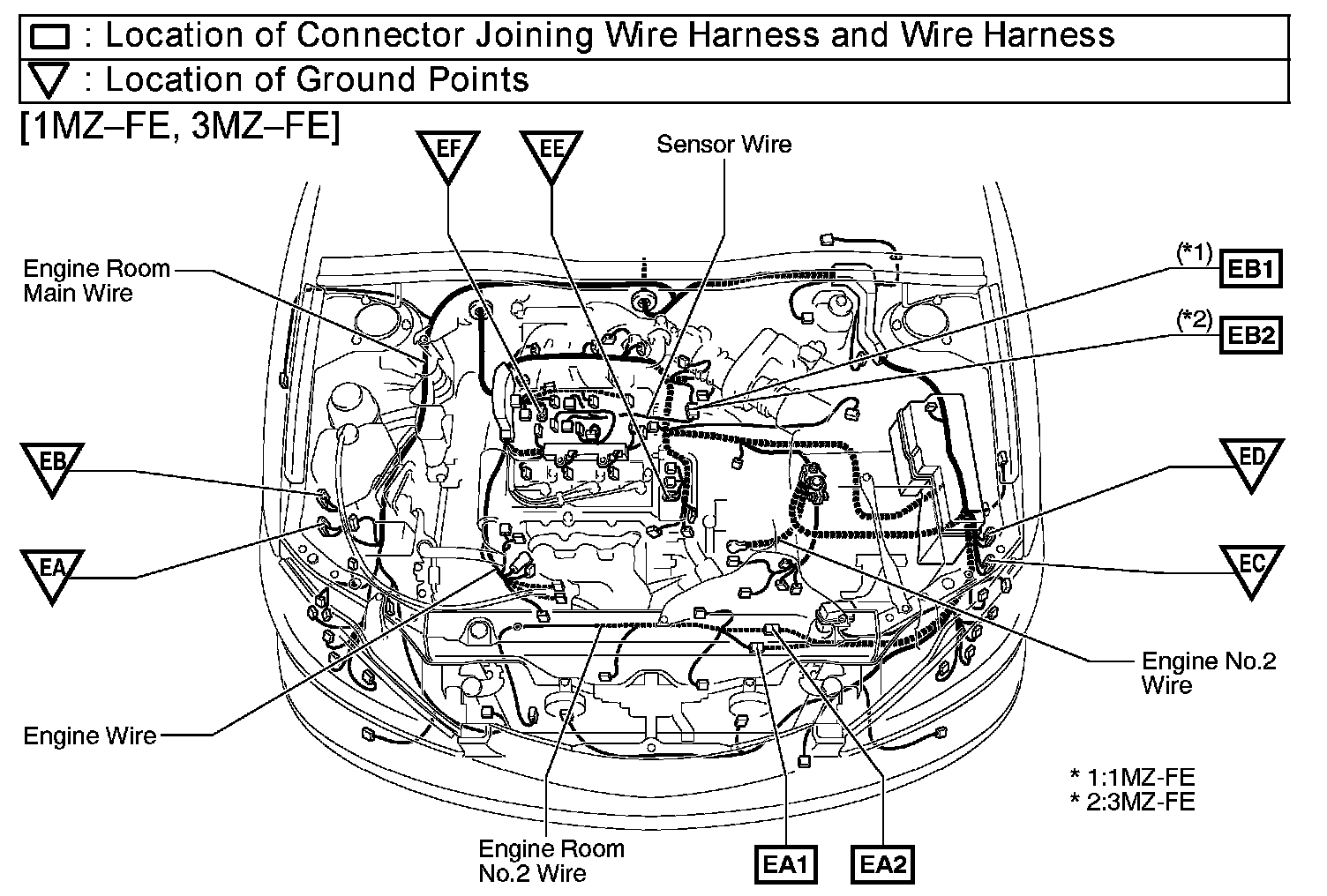

EA1 - EB2, EA - EF:

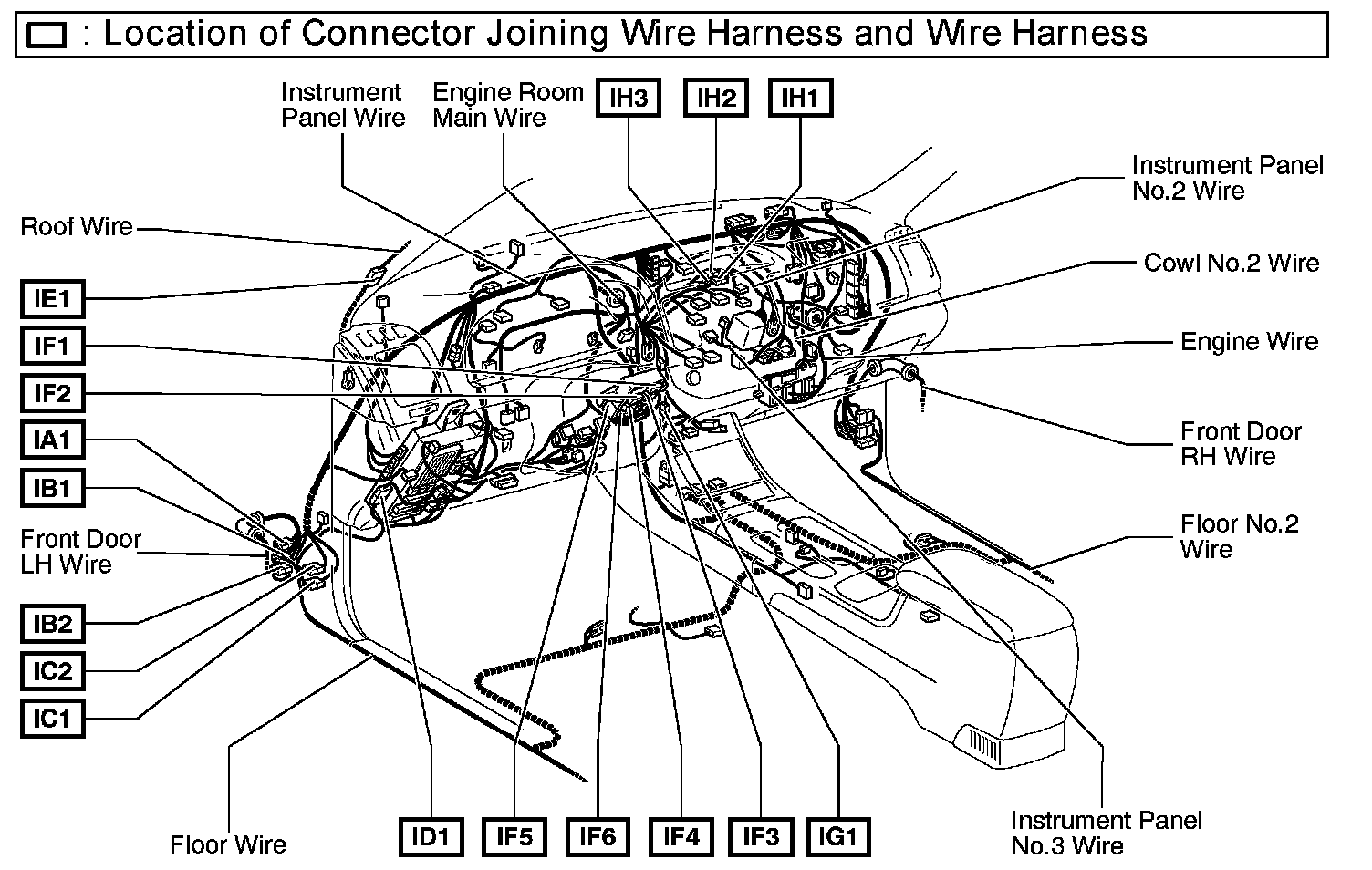

IA1 - IH3:

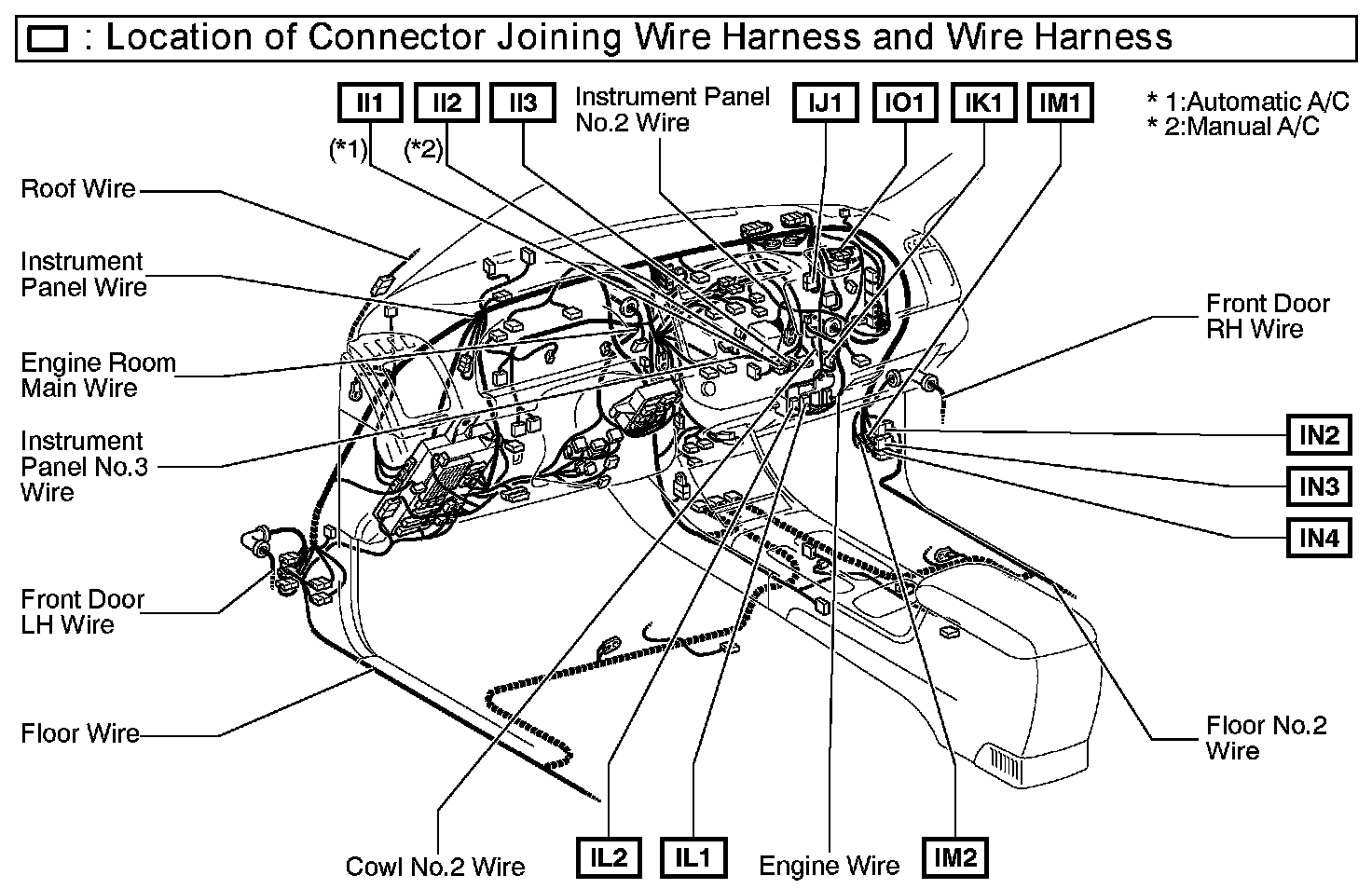

II1 - IO1:

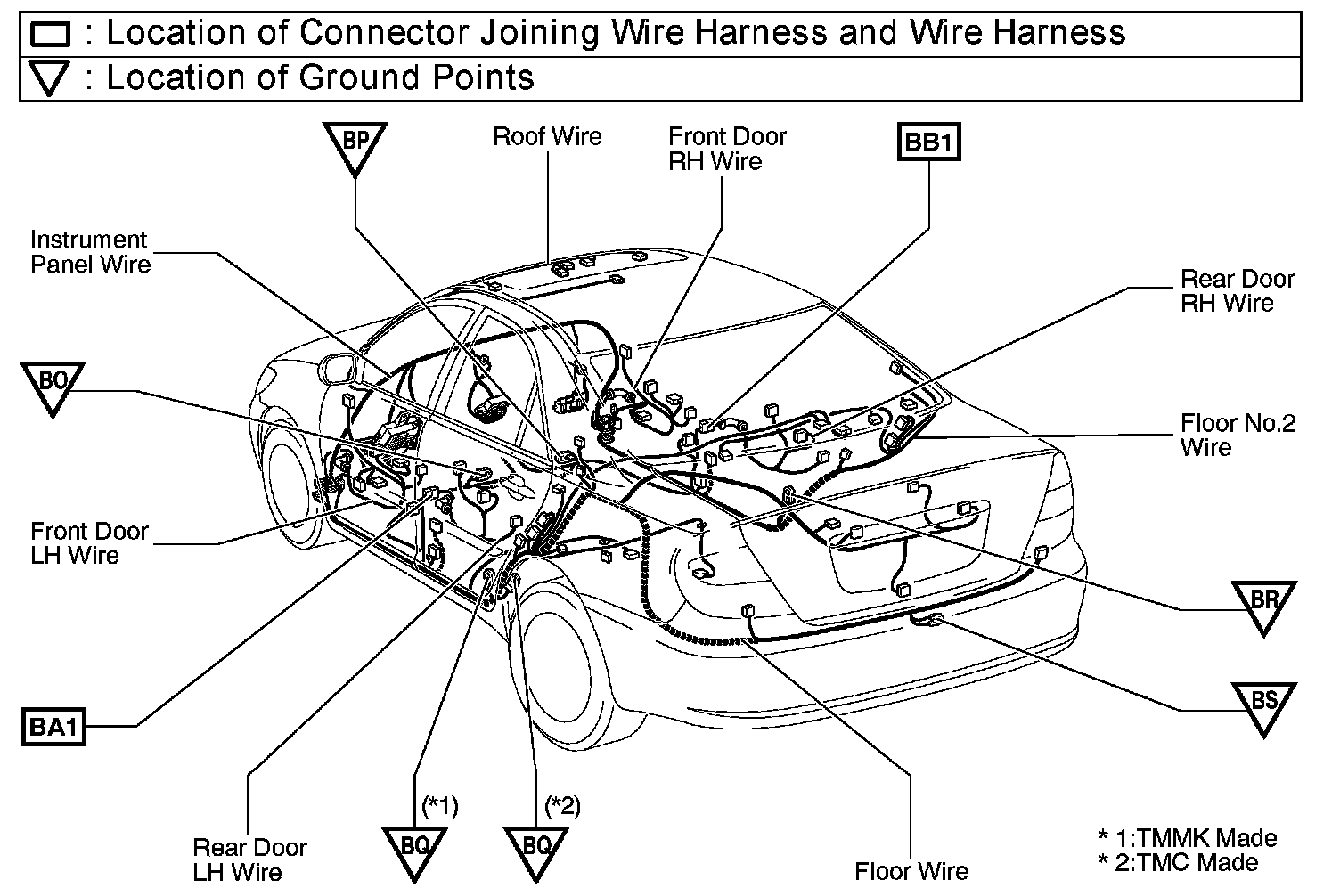

BA1 - BB1, BO - BS:

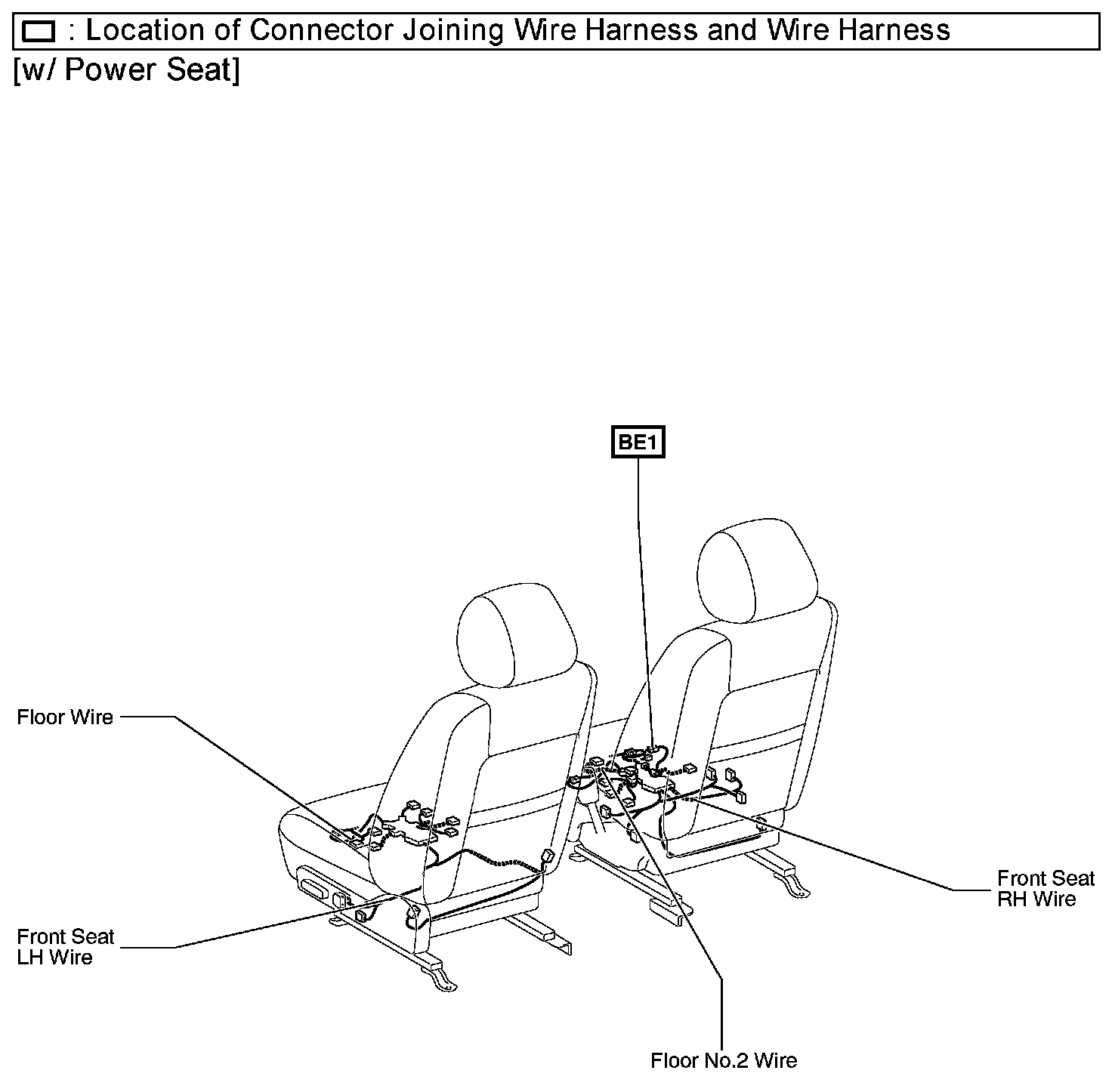

BE1:
