Control Module HVAC: Testing and Inspection

TERMINALS OF ECU

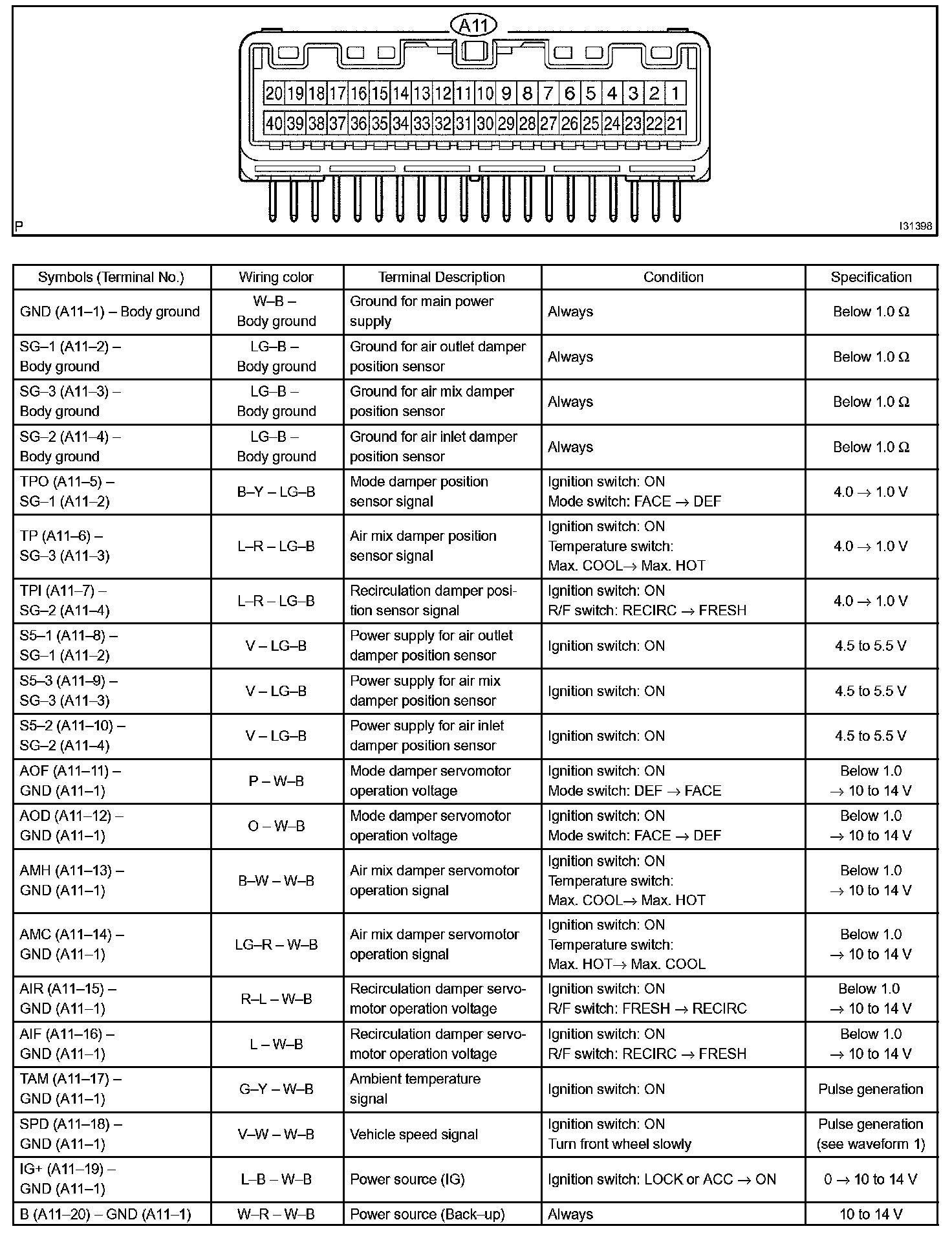

Terminal Of ECU/Pinouts - Air Conditioning Amplifier Part 1:

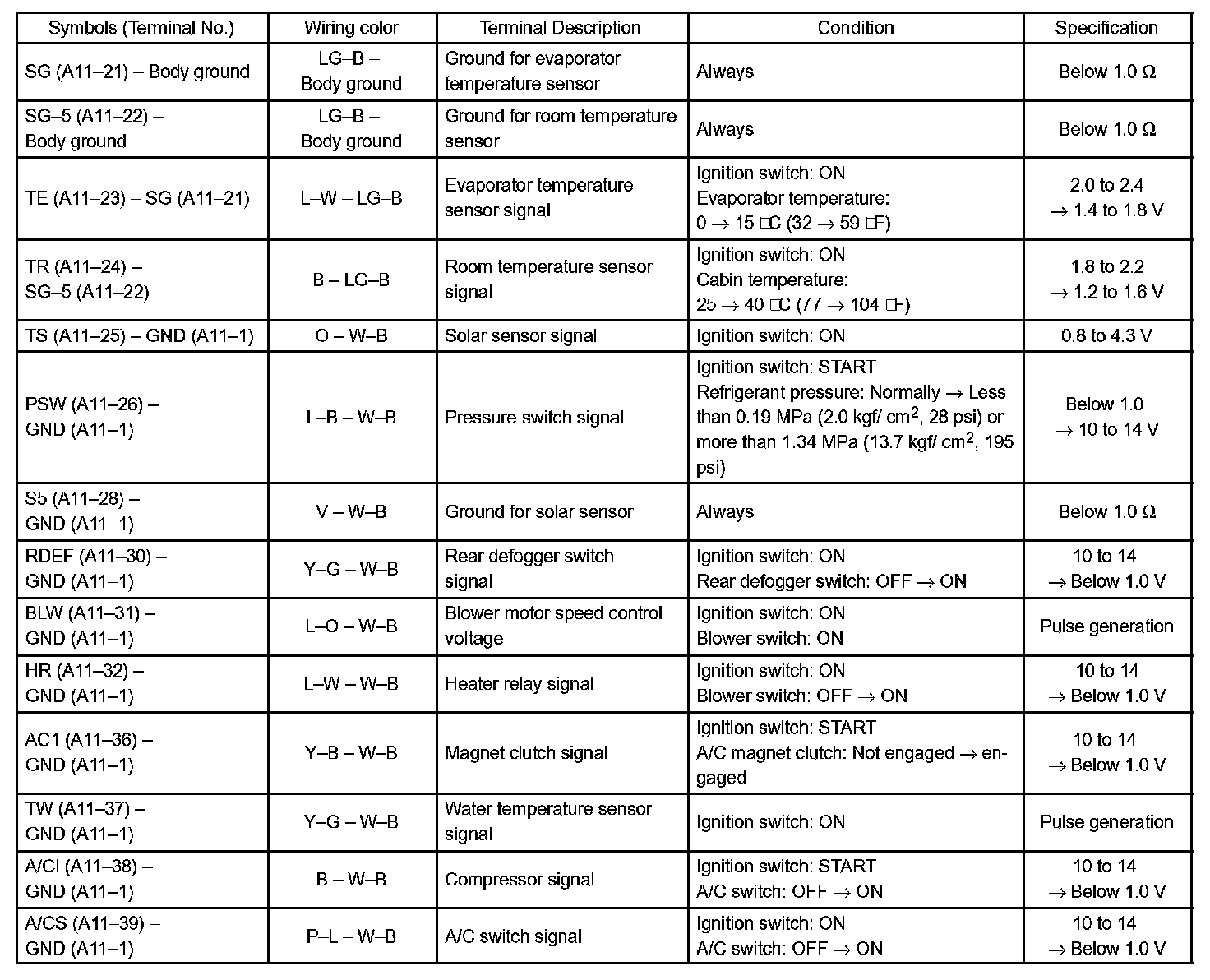

Terminal Of ECU/Pinouts - Air Conditioning Amplifier Part 2:

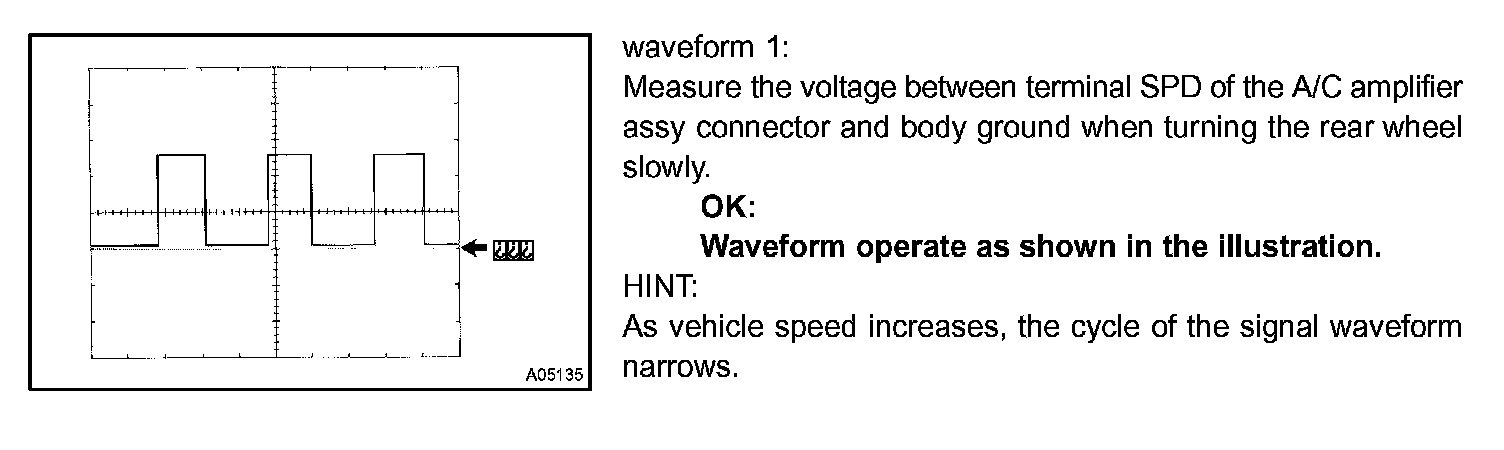

Oscilloscope Waveform:

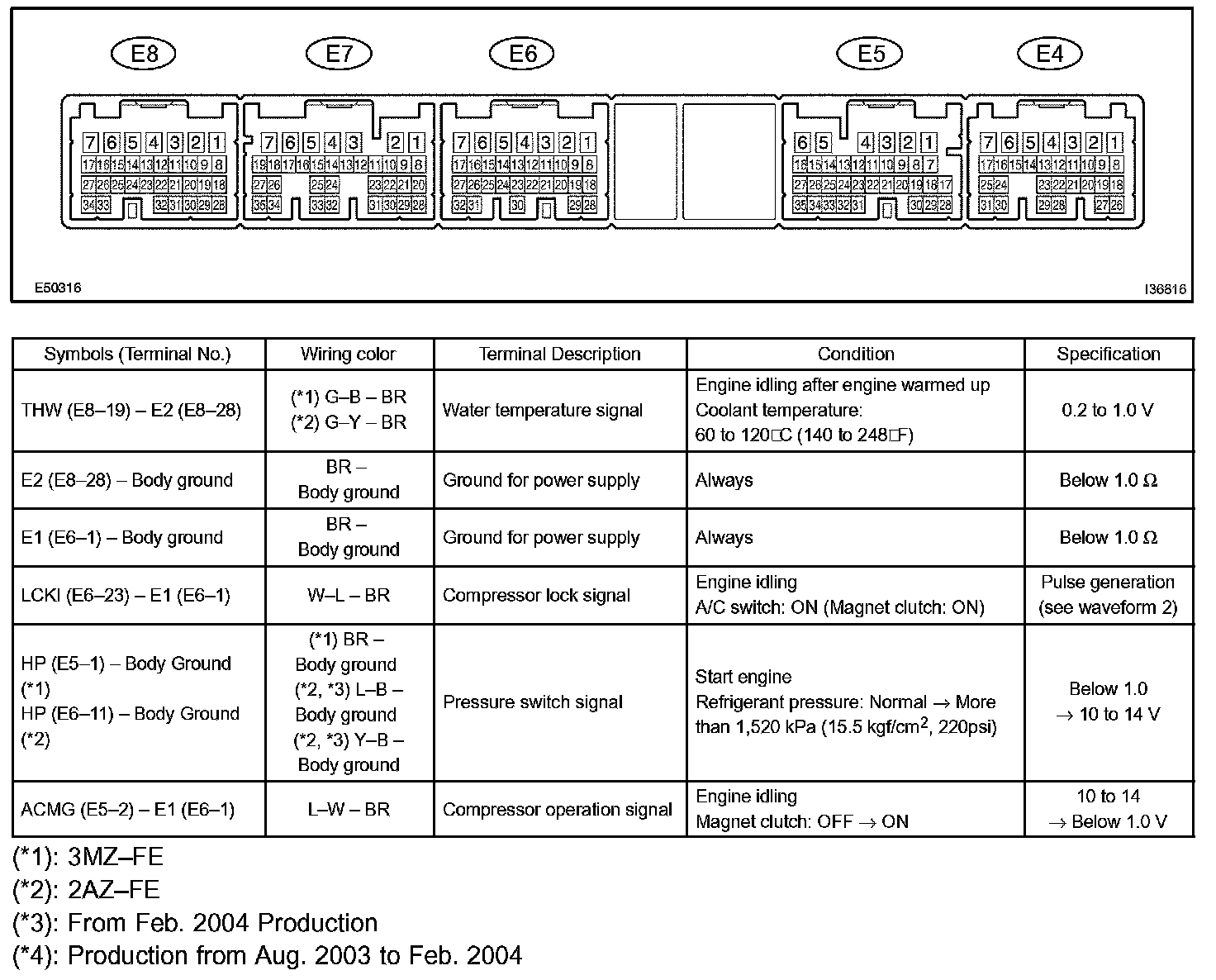

Terminal Of ECU/Pinouts - ECM:

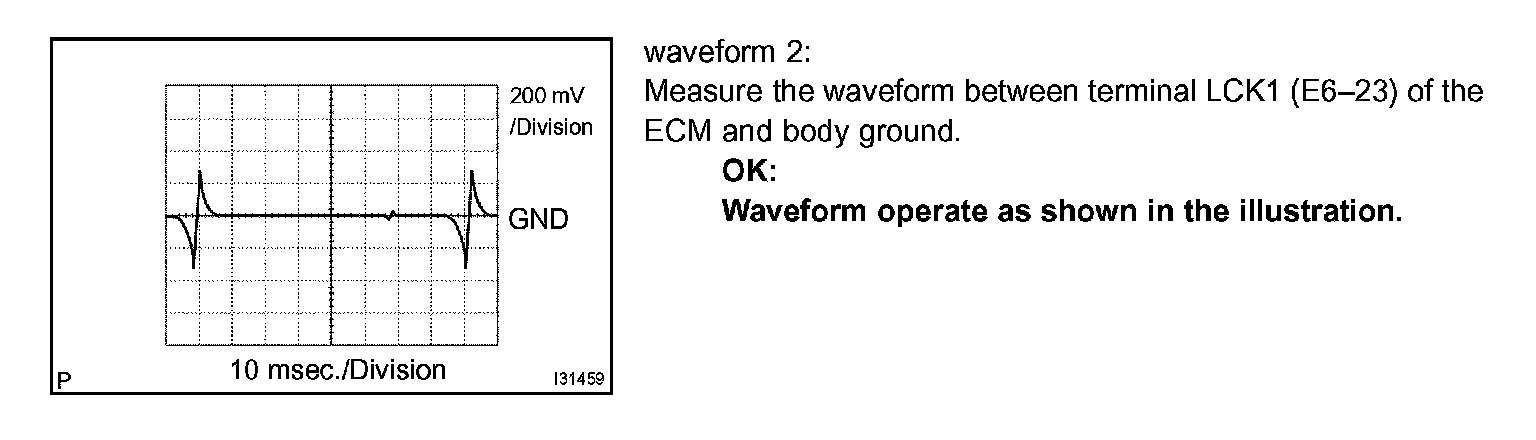

Oscilloscope Waveform:

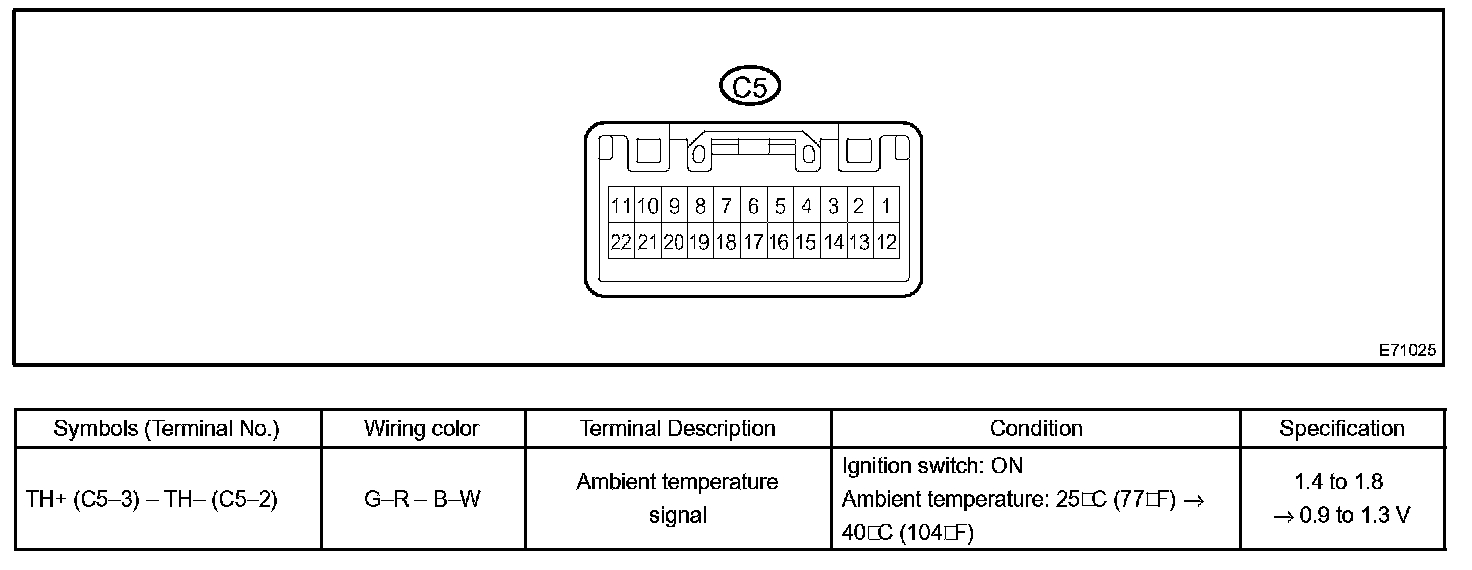

Terminal Of ECU/Pinouts - Clock Assy:
