Headliner

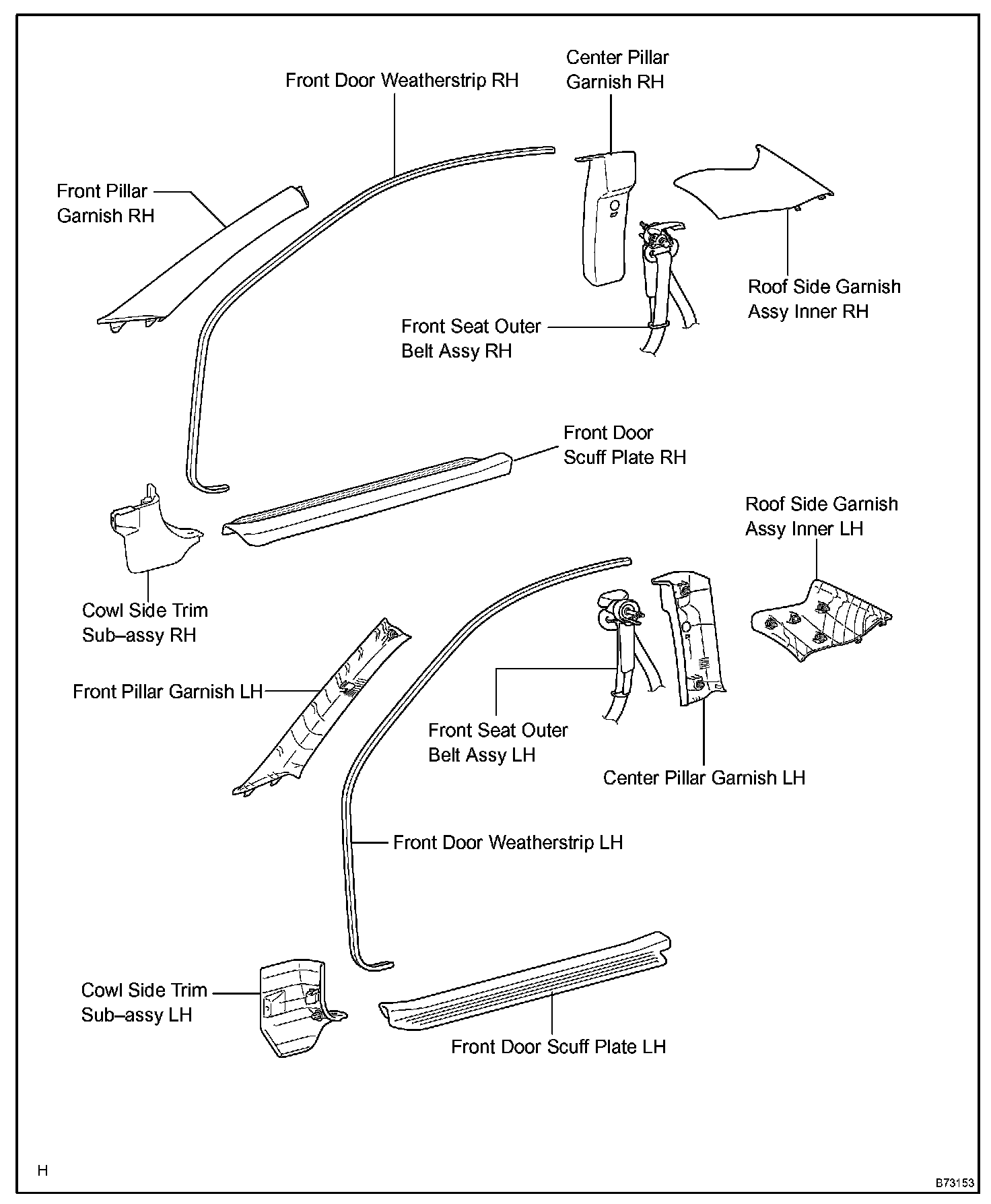

Roof Headlining Assy (Coupe):

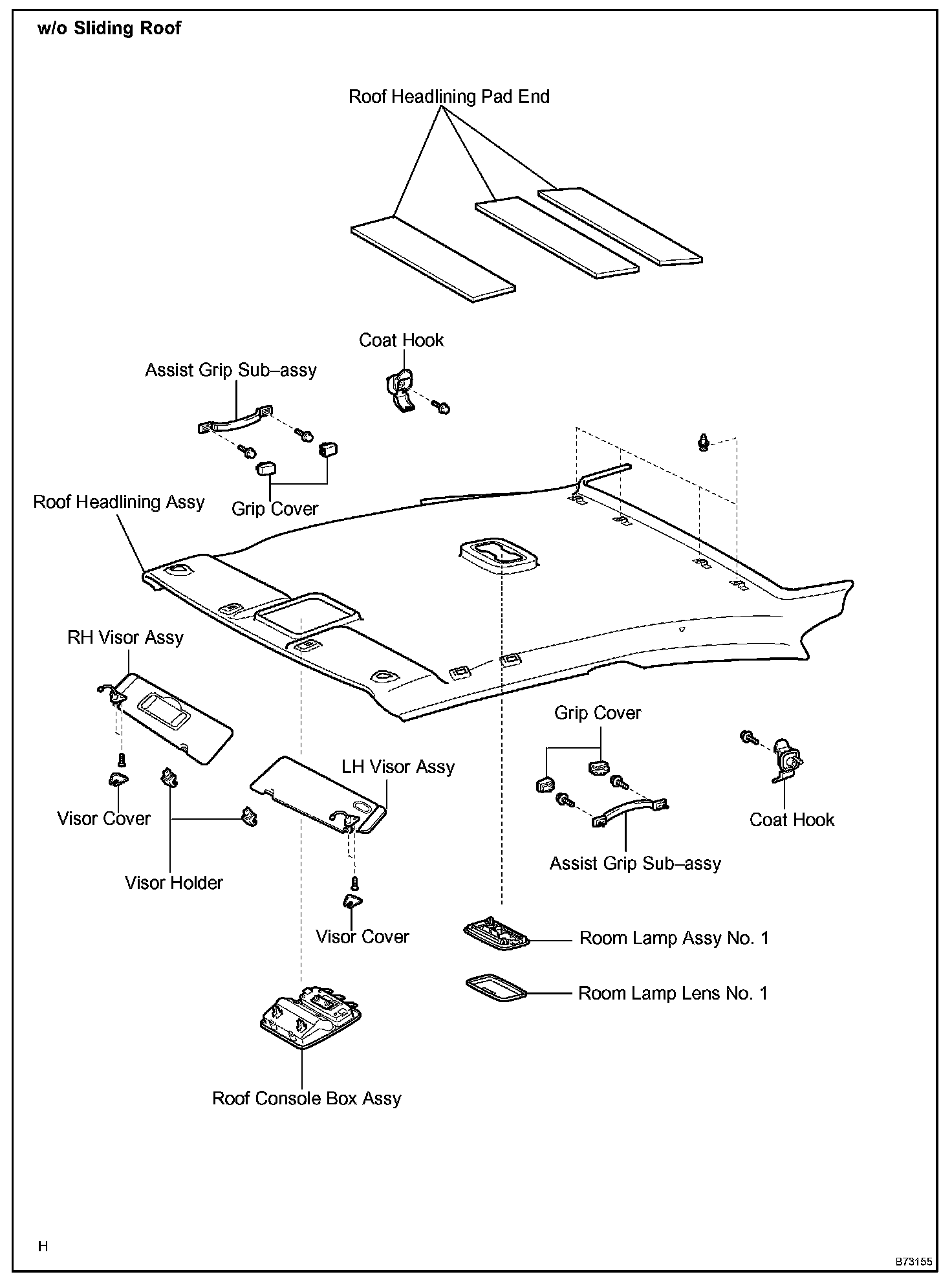

Roof Headlining Assy (Coupe):

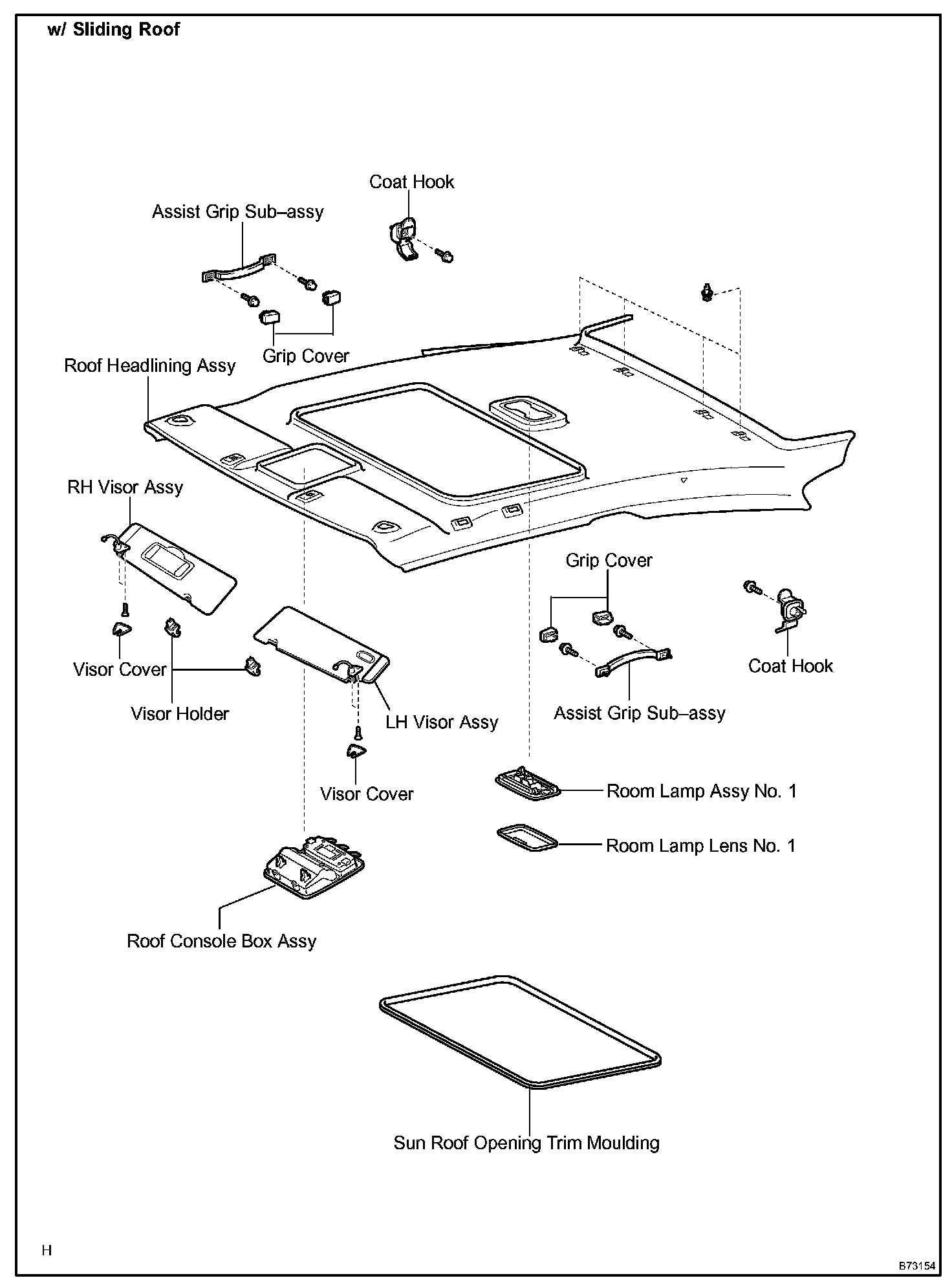

Roof Headlining Assy (Coupe):

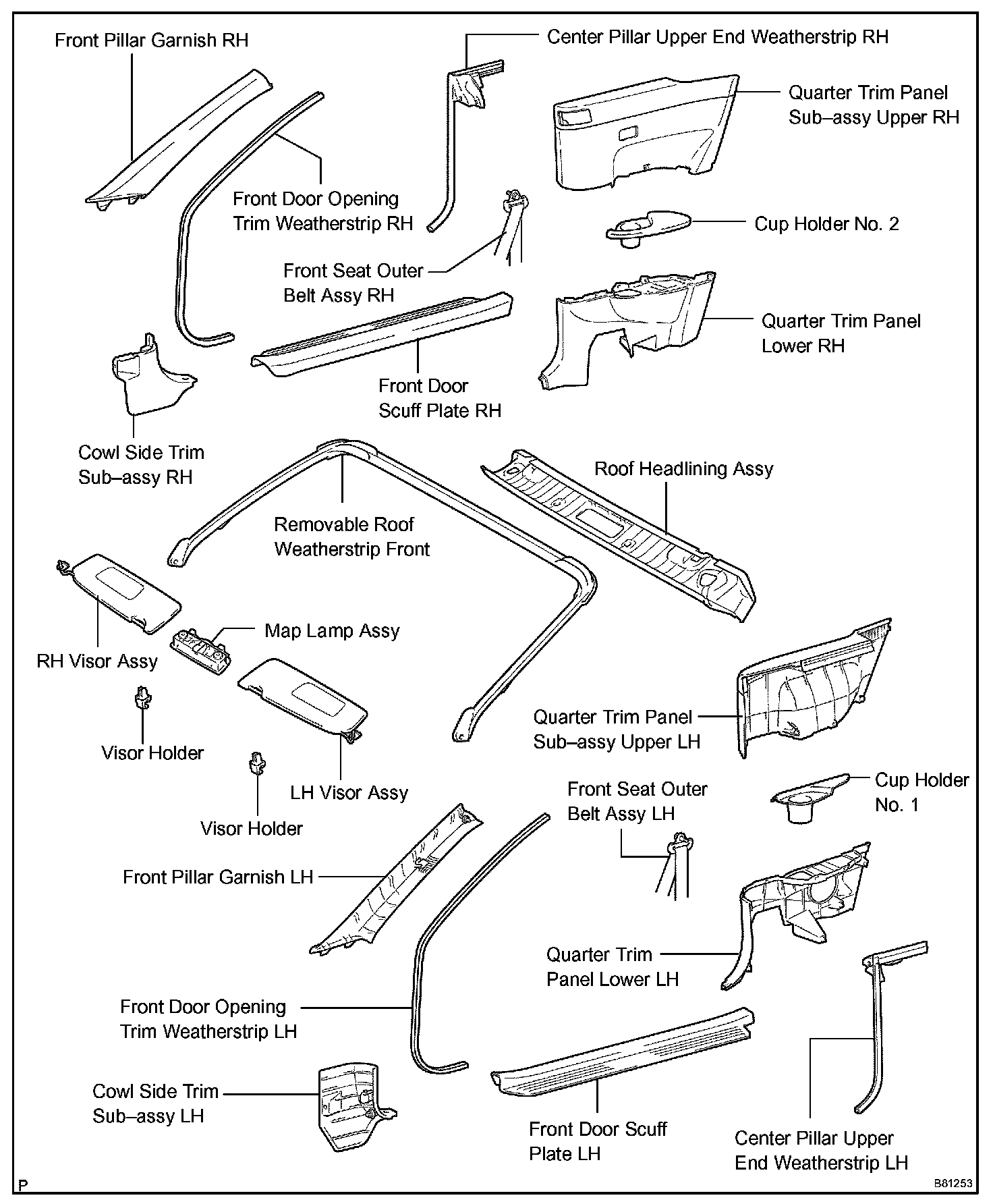

Roof Headlining Assy (Convertible):
