Ignition Relay: Locations

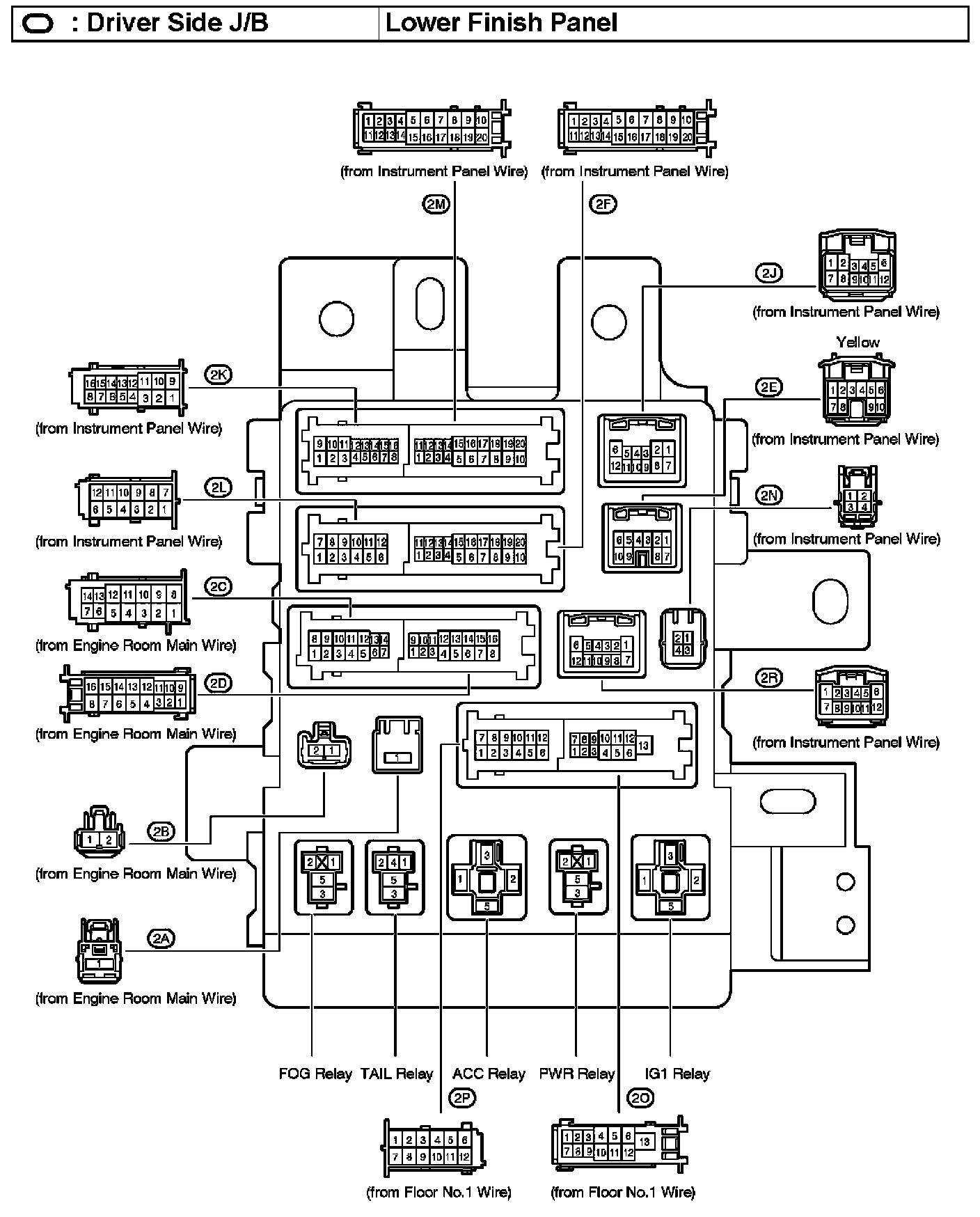

Driver Side J/B - Lower Finish Panel:

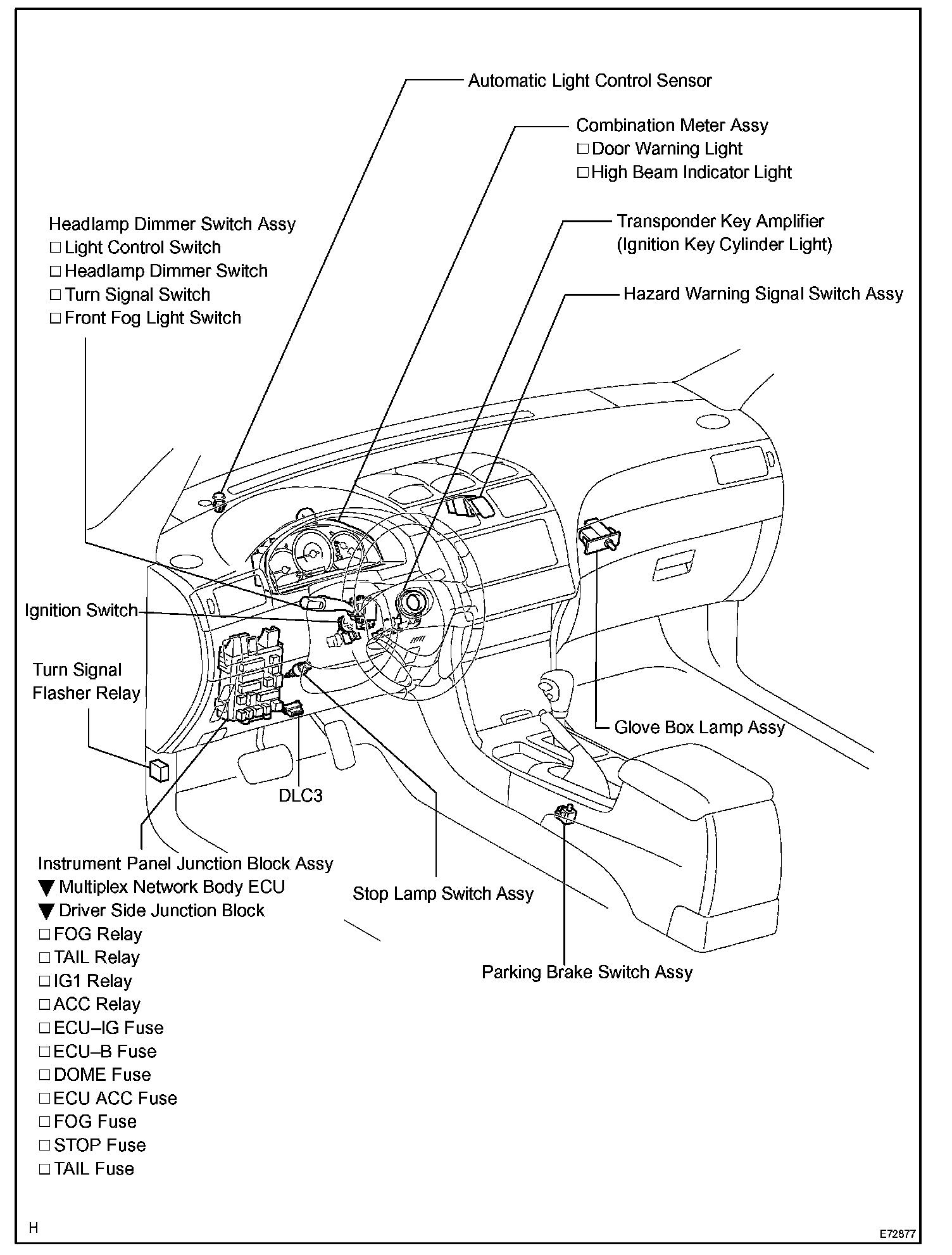

Lighting System:

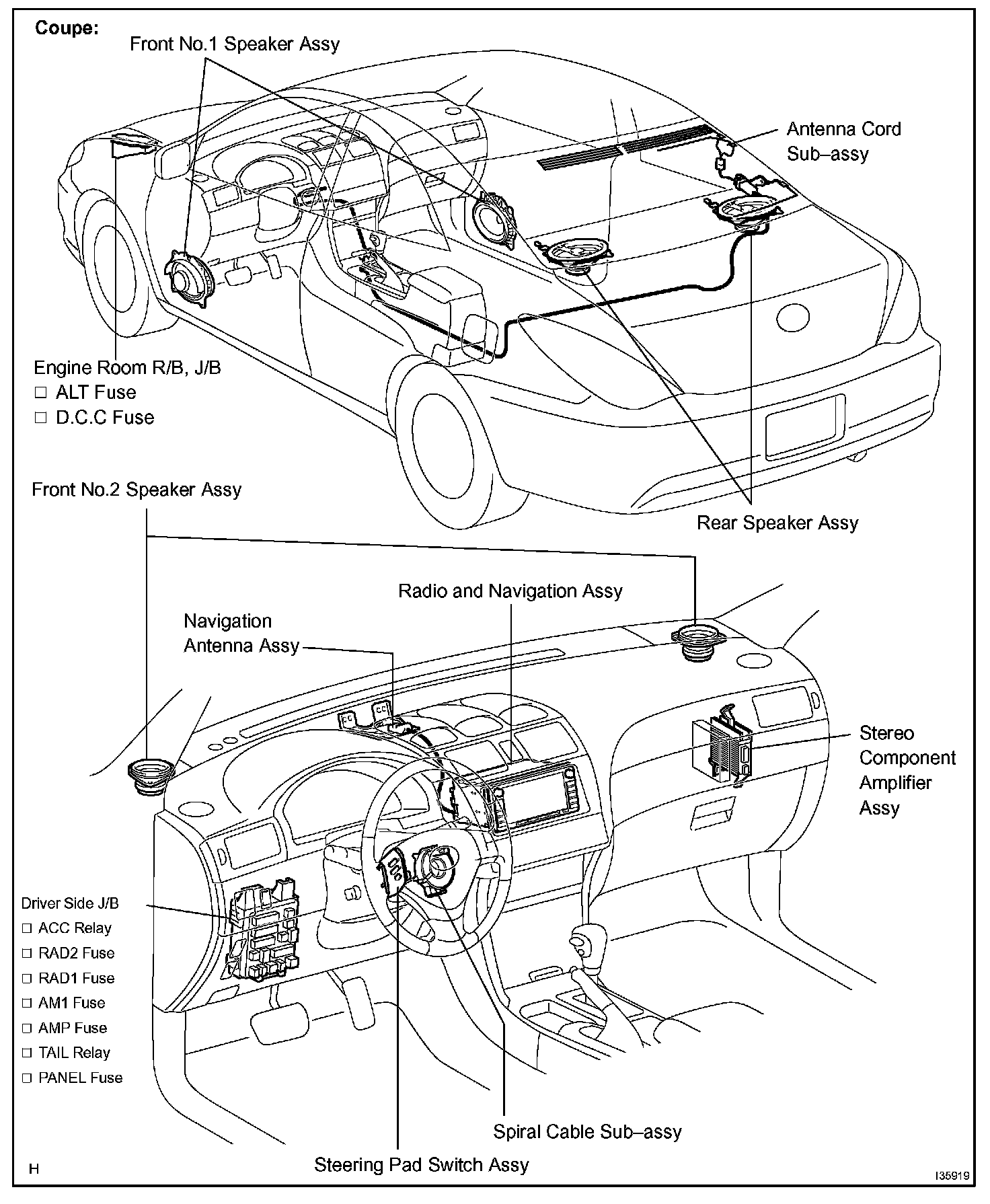

Navigation System:

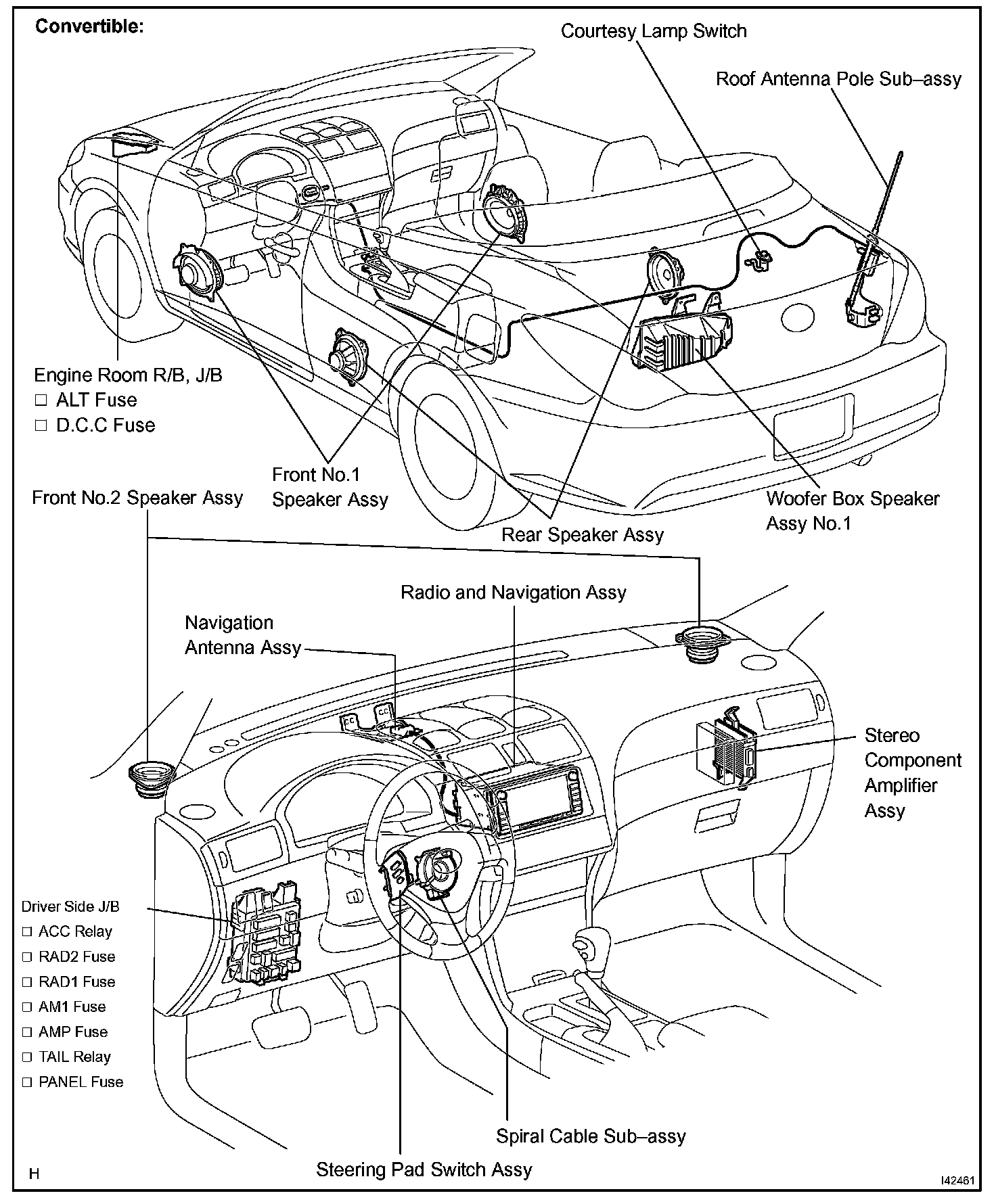

Navigation System:



Power Mirror Control System - Part 1:
