Coolant Temperature Sensor/Switch (For Computer): Testing and Inspection

INSPECTION

INSPECT ENGINE COOLANT TEMPERATURE SENSOR

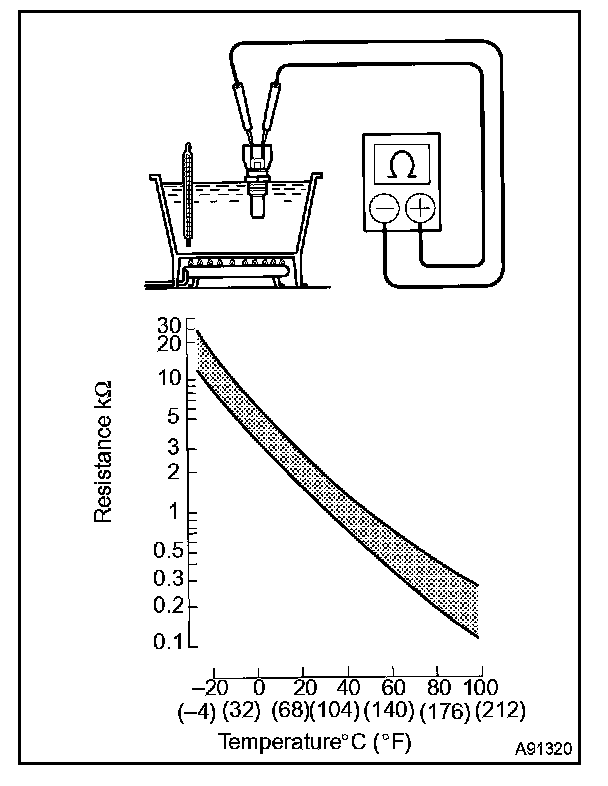

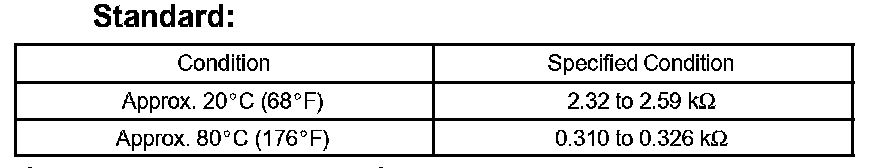

Measure the resistance between the terminals.

If the result is not as specified, replace the sensor.

NOTE: If checking the engine coolant temperature sensor in the water, keep the terminals dry. After the check, wipe the sensor dry.
