Home >> Toyota >> 2004 >> Solara L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Heated Glass Element

Heated Glass Element

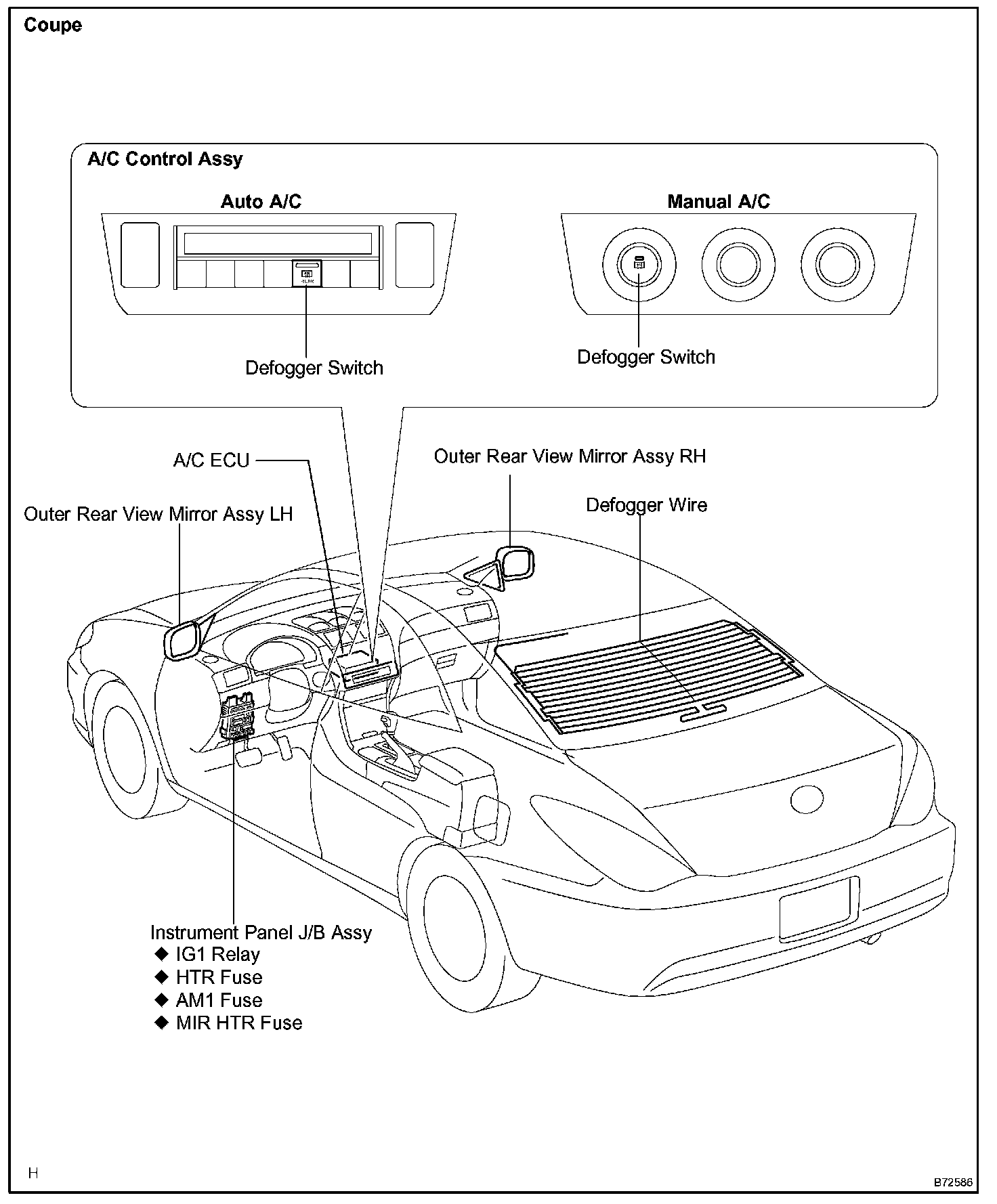

Window Defogger System - Coupe:

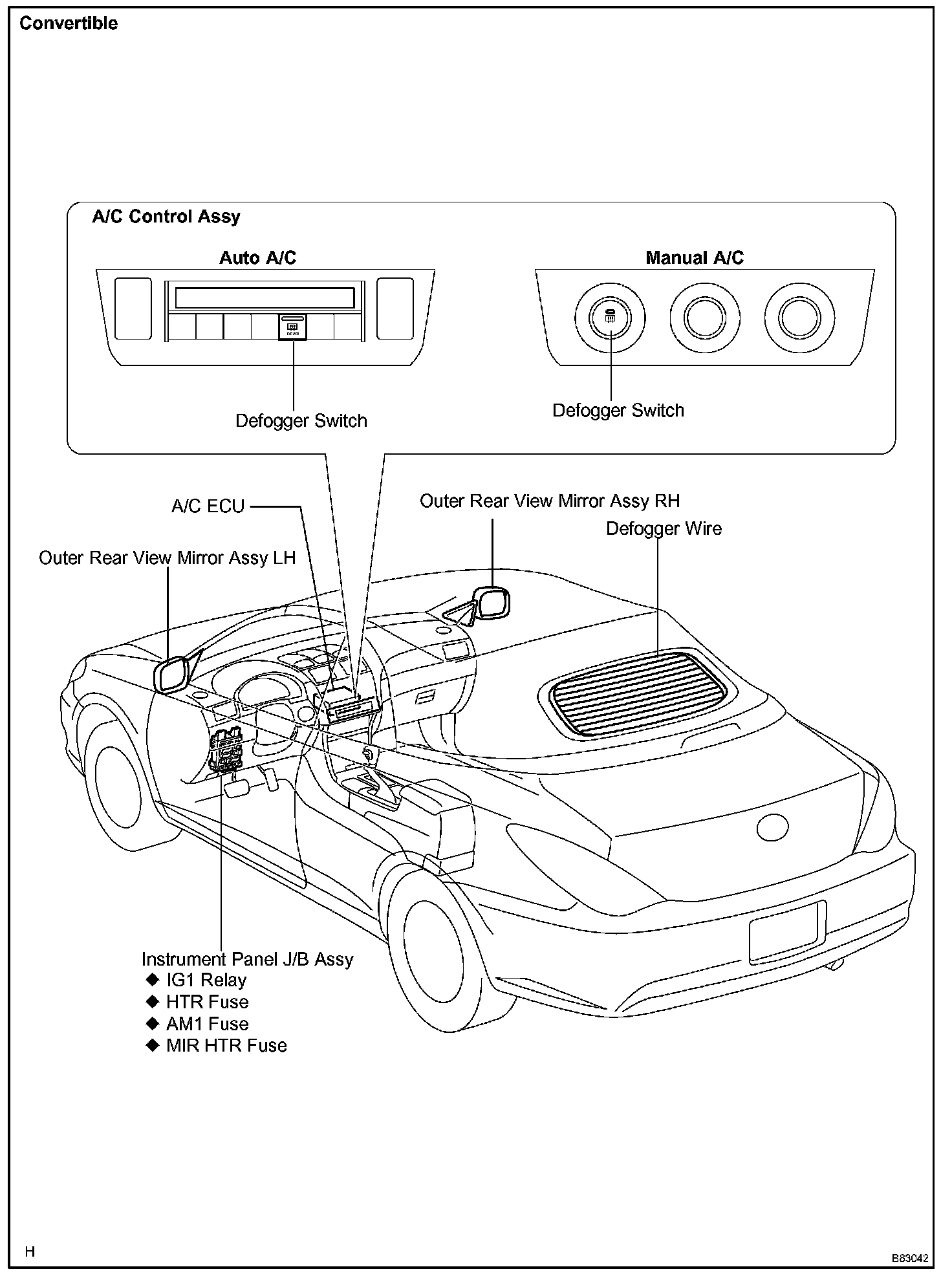

Window Defogger System - Convertible:

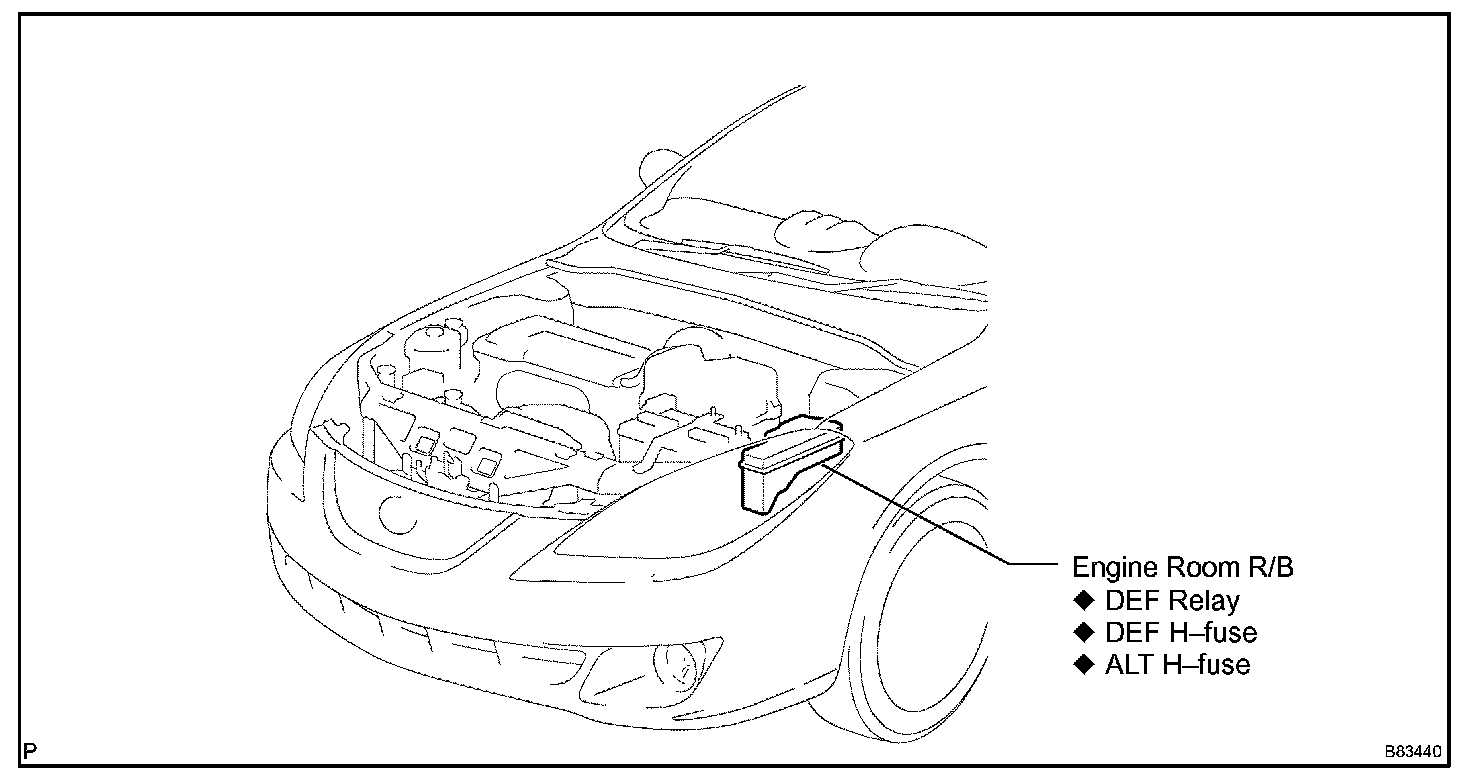

Window Defogger System:
