Home >> Toyota >> 2004 >> Solara L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Navigation Module >> Testing and Inspection

Navigation Module: Testing and Inspection

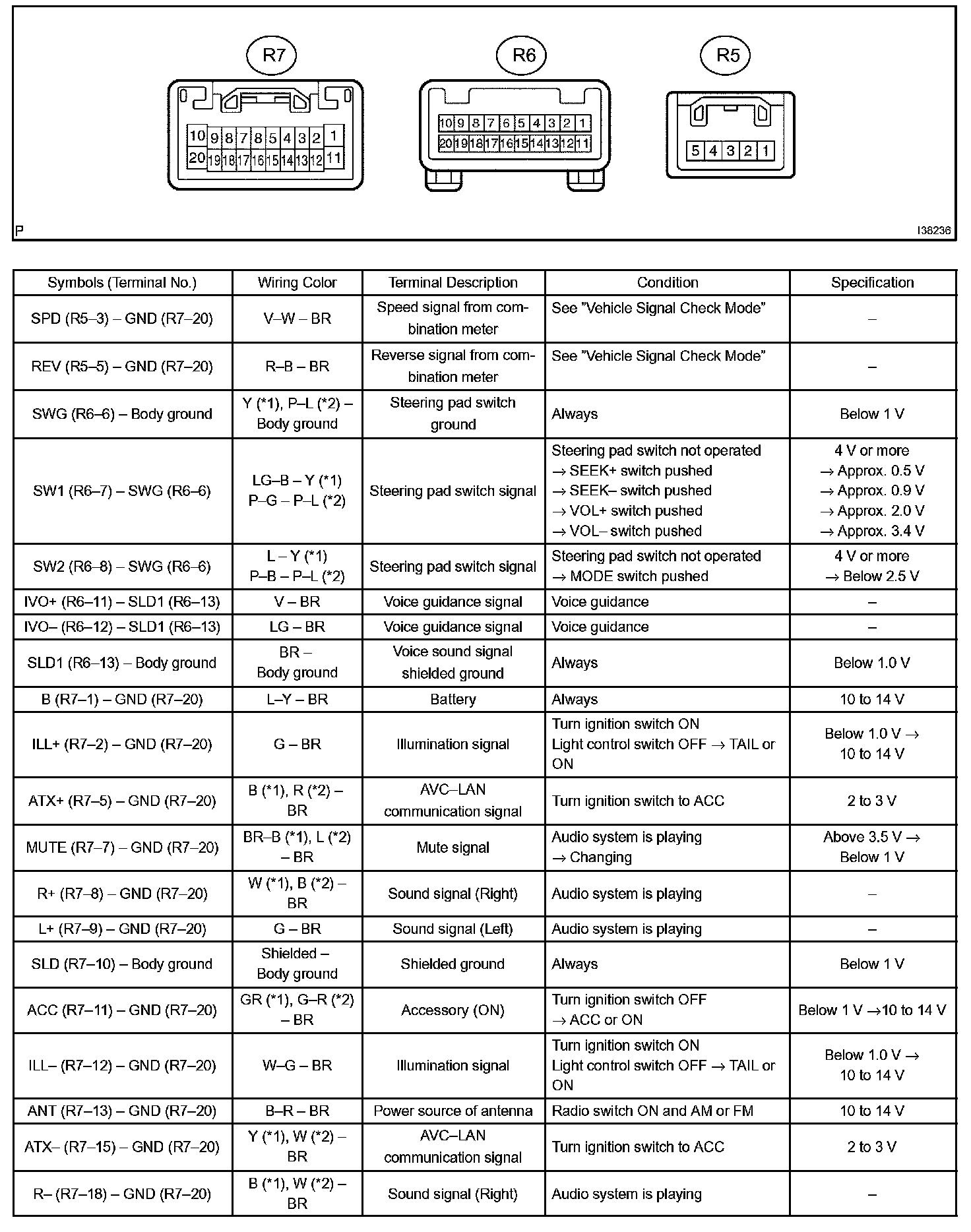

Terminals Of ECU/Pinouts - Radio And Navigation Assy Part 1:

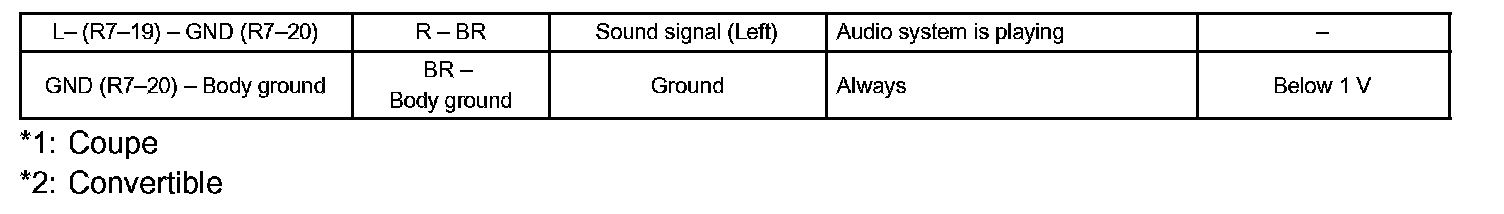

Terminals Of ECU/Pinouts - Radio And Navigation Assy Part 2:

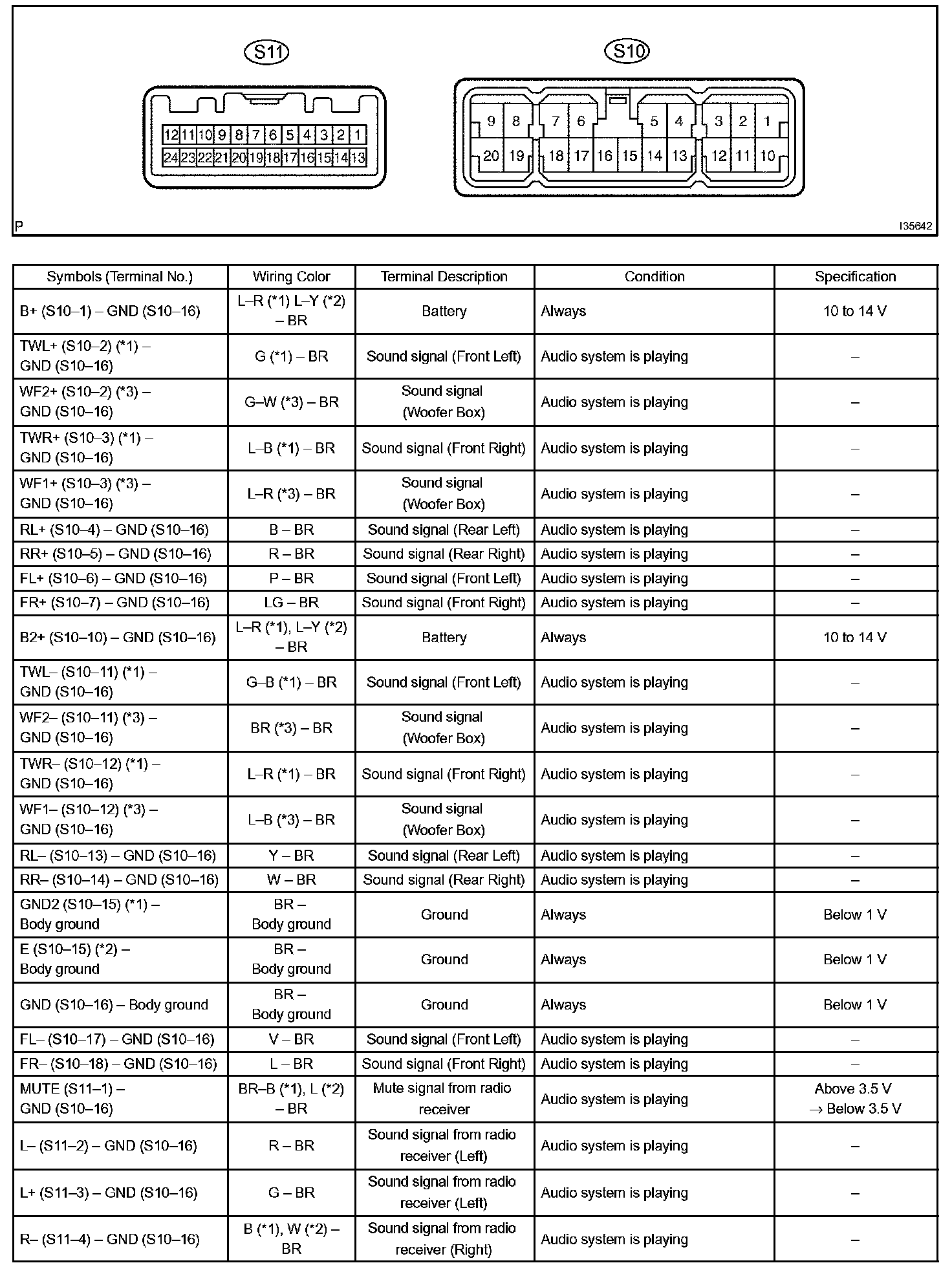

Terminals Of ECU/Pinouts - Stereo Component Amplifier Part 1:

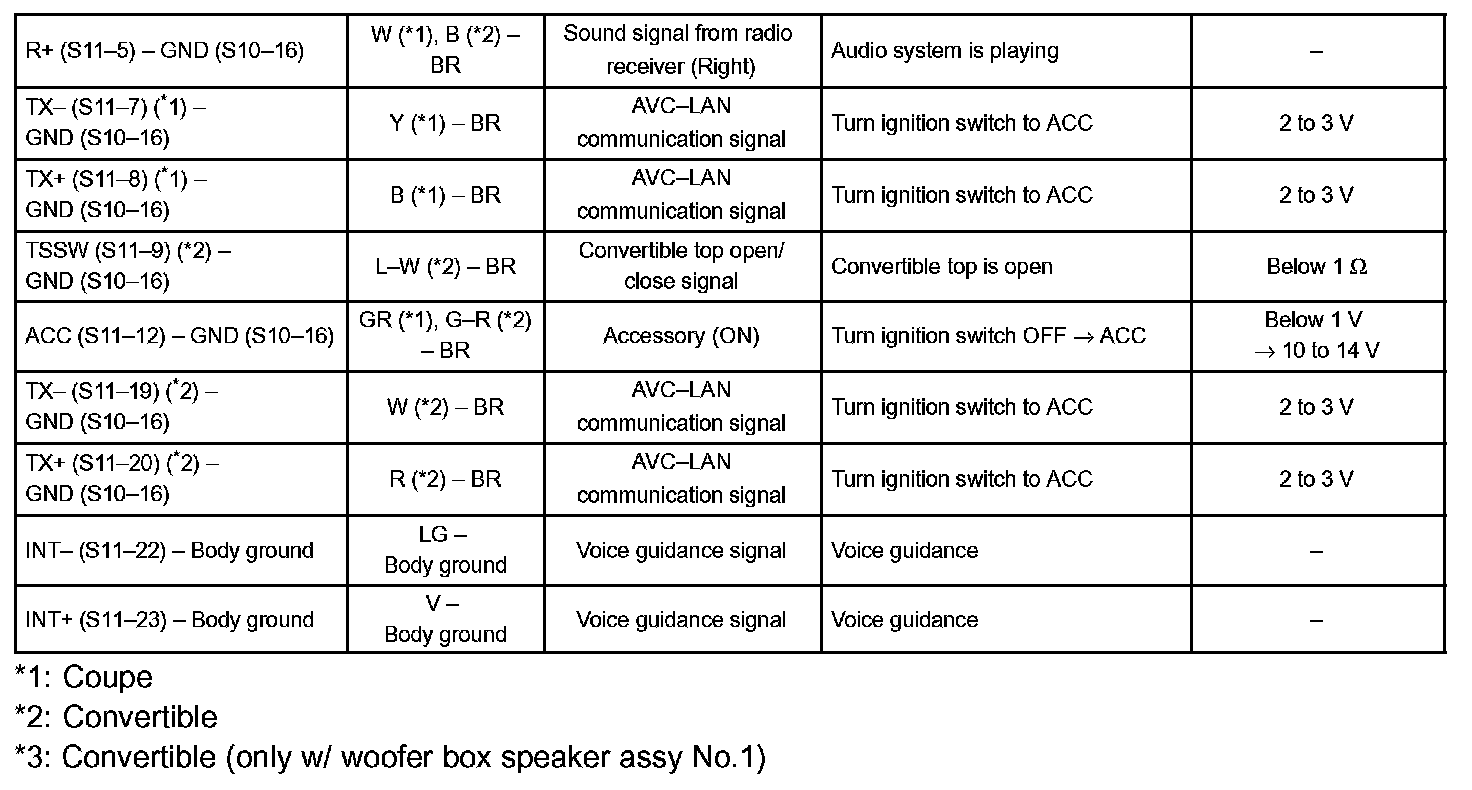

Terminals Of ECU/Pinouts - Stereo Component Amplifier Part 2:
